Monitoring functions
SIMOCODE pro
5-22 GWA 4NEB 631 6050-22 DS 03
5.8 Temperature monitoring (analog)
Schematic and characteristic curve
Temperature monitoring of, for example, motor windings, motor bearings,
coolant and gearbox temperature, can be carried out via up to three analog
temperature sensors such as NTC, KTY 83/84, PT100, PT1000.
SIMOCODE pro supports two-phase monitoring for overtemperature:
Separate levels can be set for the warning temperature and the switch-off
temperature.
Temperature monitoring is based upon the highest temperature in all sensor
measuring circuits of the temperature module.

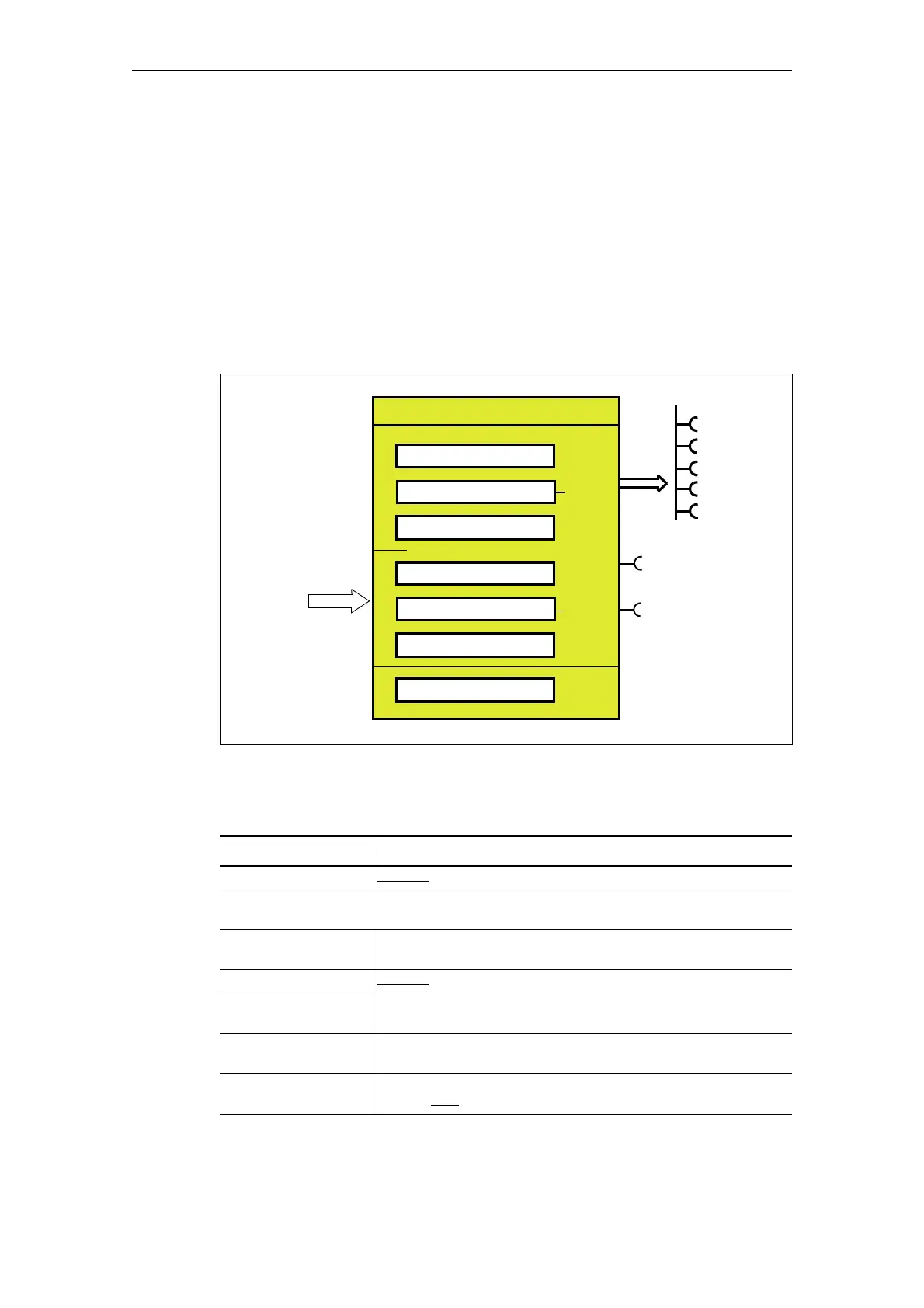

Fig. 5-10: "Temperature Monitoring" function block
Settings
Temperature Description
Trip level T> - 273 °C
- 65262 °C
Response at trip
level T >
Setting of response when the temperature is overshot (see the
following table and Chapter "Important information")
Marking trip level T > No parameters. Optional marking for designating the signal, e.g.
"Temperature>". Range: Up to 10 characters.
Warning level T > - 273 °C
- 65262 °C
Response warning
level T >
Setting of response when the temperature is overshot (see the
following table and Chapter "Important information")
Marking warning
level T >
No parameters. Optional marking for designating the event, e.g.
"Temperature>"; Range: Up to 10 characters.
Hysteresis 0 - 255 °C in 1 °C increments
Default: 5 °C
Table 5-16: "Temperature monitoring" settings
Temperature monitoring
Tri p level
Warning level
Hysteresis
QE1
QE2
QE3
QE4
QE5
- Temperature module
Tripping
Response at trip level
Response at warning level
See
Ta b l e
(Marking)
(Marking)
Event
Trip level T>
- Temperature module
Warning level T>
Max. temperature of all
sensor measuring circuits
of the temperature module
"Response"
See
Ta b l e
"Response"
