System description
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
1-35

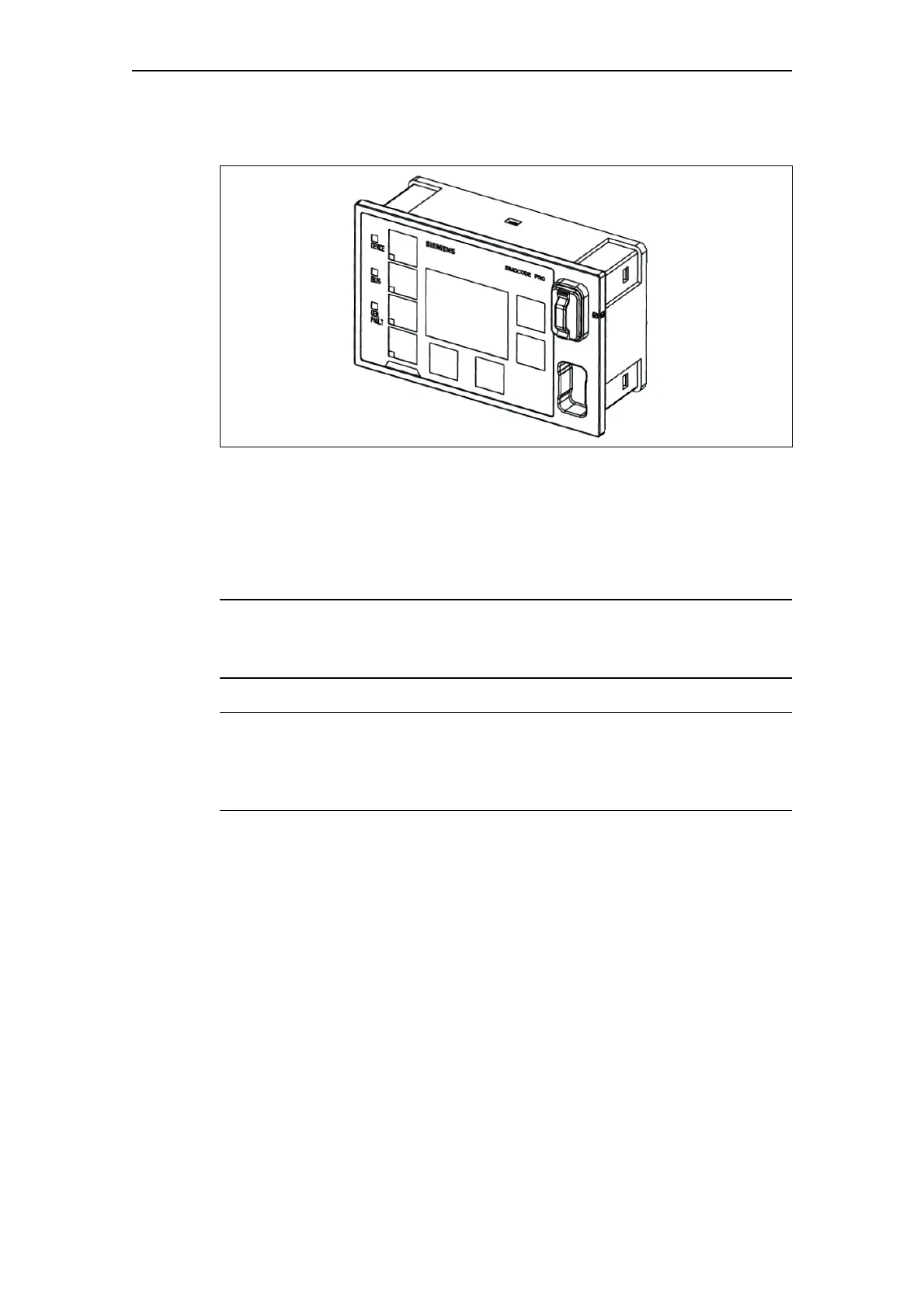

The following figure shows an operator panel with display:
Fig. 1-11: Operator panel with display
The operator panel with display can be connected directly to basic unit 2 or
an expansion module via the rear system interface. Voltage is supplied by
the basic unit. A PC (via a PC cable with SIMOCODE ES software), the
memory module or the addressing plug can be connected to the front
system interface (with a cover for IP54).
Caution
The operator panel with display may not be removed or plugged in during
operation!
Note
When using an operator panel with display, the type and number of
expansion modules that can be connected to a basic unit are limited! See
Chapter 1.7.8.
