Siemens SIMOCODE pro System Manual

Mounting, wiring, interfaces
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
13-11

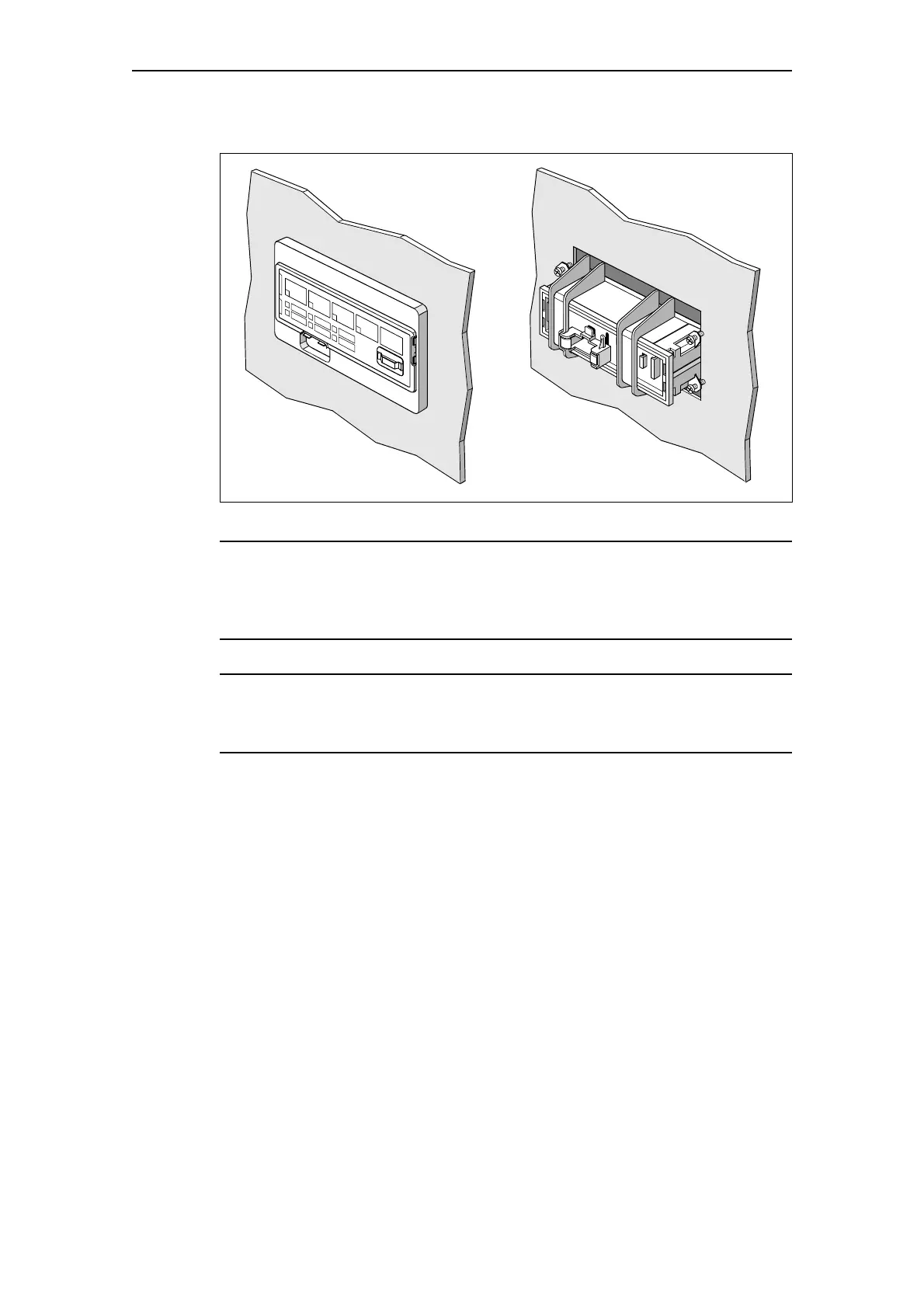

Fig. 13-7: Mounting the operator panel adapter (2)
Warning
To ensure IP54 tightness and the correct functionality of the operator panel,
the tightening torque of the screws provided must not be set too high when
mounting and the seal provided must be applied.
Notice
A SIMOCODE pro 3UF7 system operator panel can not be used with
SIMOCODE-DP 3UF5, and vice versa.
IP54

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
