Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
1-122 GWA 4NEB 631 6050-22 DS 03
Non-Volatile Element 1 (2, 3, 4)

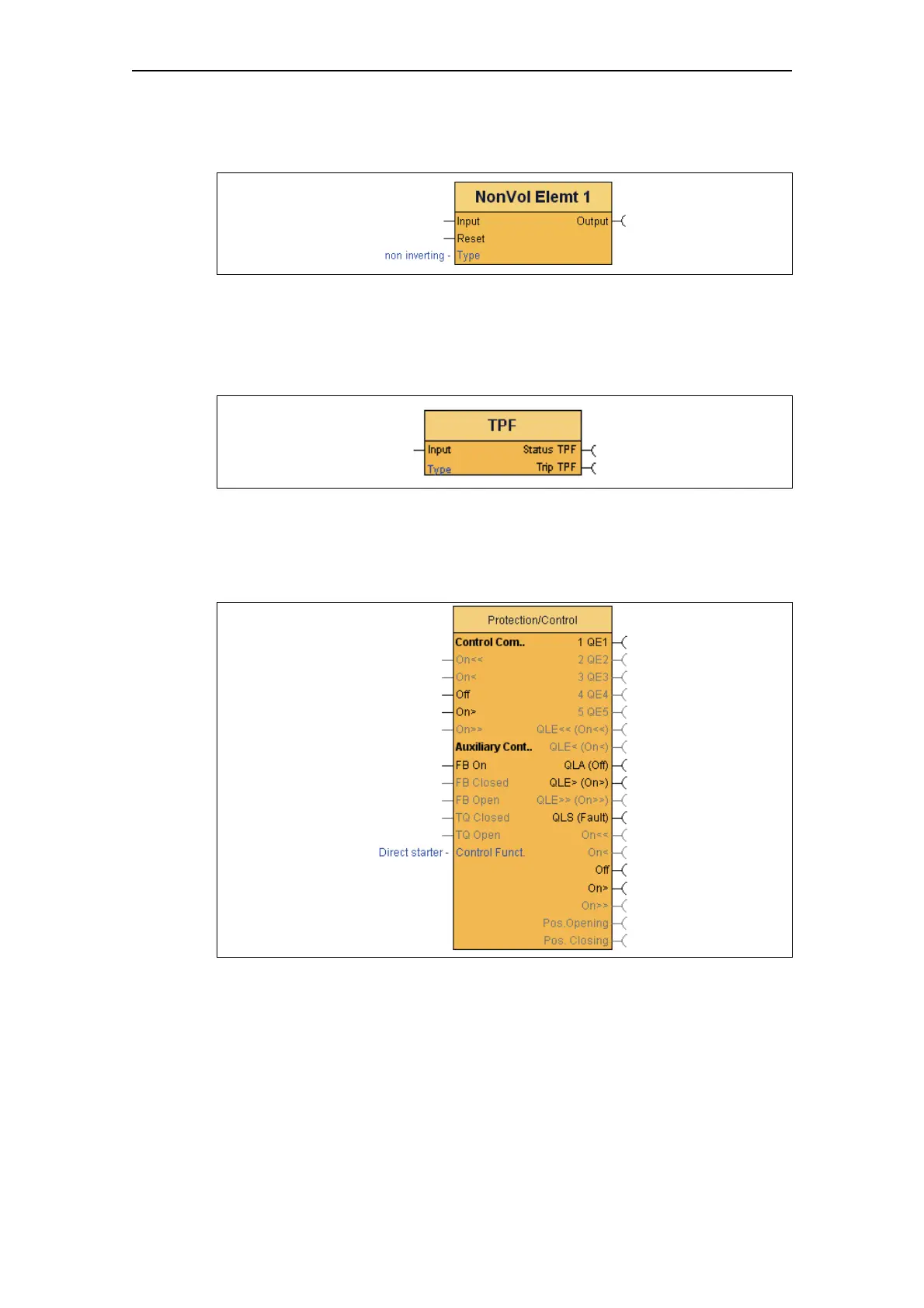

Fig. 1-65: Non-Volatile Element 1
See Chapter 11.8.
TPF
Fig. 1-66: TPF
See Chapter 10.3.
Protection/Control
Fig. 1-67: Protection/Control
See Chapter 4.2.1.

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
