Motor control
SIMOCODE pro
4-4 GWA 4NEB 631 6050-22 DS 03
• Control station - PC
This control station is primarily intended for switching commands on an
arbitrary PC which, along with the automation system, is used as a second
master on the PROFIBUS DP. The control commands are sent via the
Acyclic Receive telegram from PROFIBUS DPV1.
Note
If the SIMOCODE ES or SIMATIC PDM PC software is connected to
SIMOCODE pro via PROFIBUS DP, its control commands automatically take
effect via the PC [DPV1] control station. In this case connection is not required!

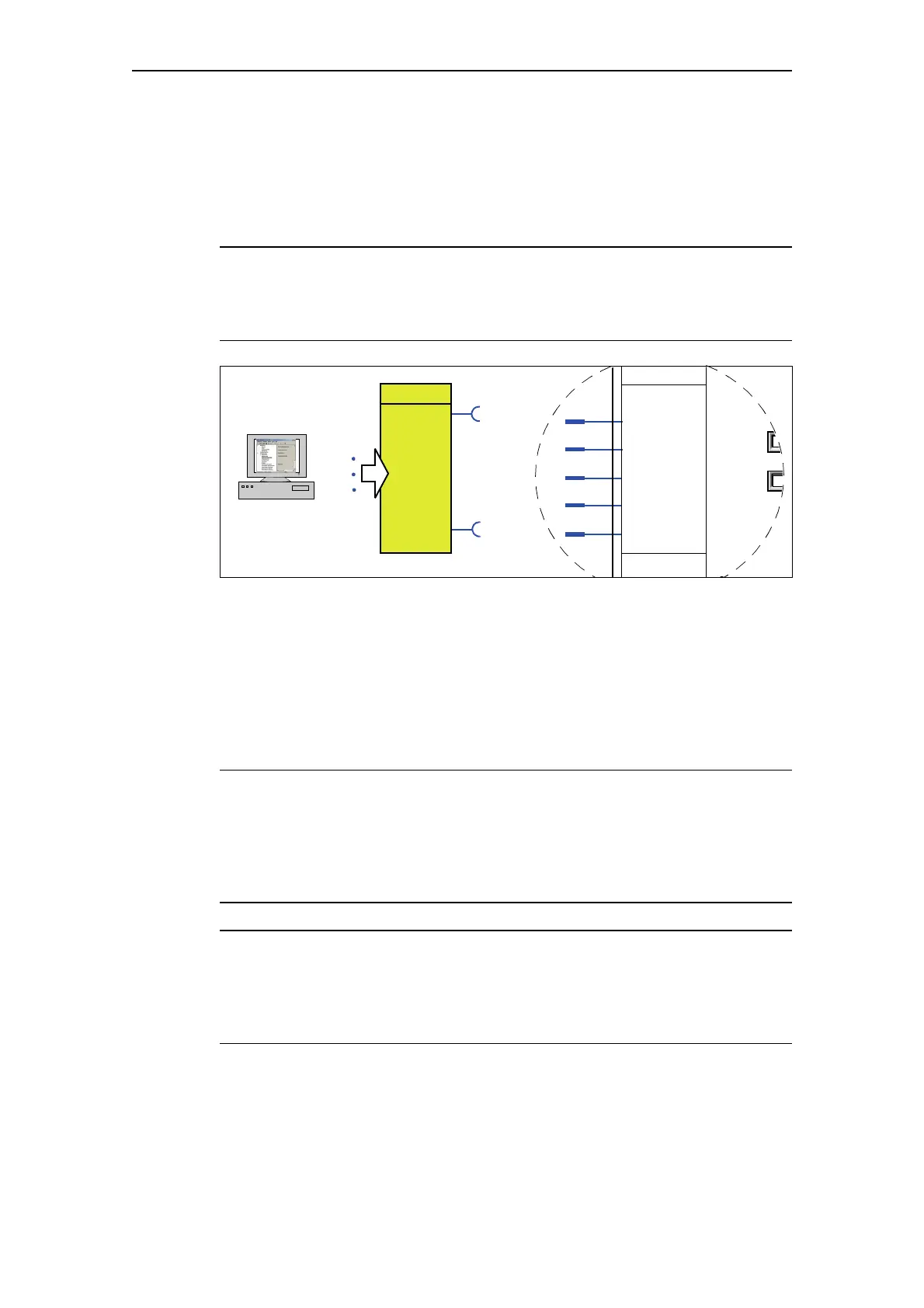

Fig. 4-3: Control station - PC
• Control station - operator panel
This control station is primarily intended for control commands issued via the
buttons on the 3UF72 operator panel, which can be mounted in a switchgear
cabinet door, for example. The plugs of the "Control Stations" function block
must be connected to arbitrary sockets (normally to the function block for the
buttons of the operator panel - OP buttons) for the control commands to take
effect.
Notice
Since the operator panel only has four buttons for controlling the motor
feeder, one button must be used as a speed switch button for control
functions with two rotational speeds and two directions of rotation.
For this purpose, the button must be assigned to the internal control
command "[OP]<>/ <<>>".
Notice
If the SIMOCODE ES PC software on a programming device is connected to
SIMOCODE pro via the system interface, the control commands
automatically take effect via the operator panel [OP] control station and
must also be enabled here as applicable.
<>/<<>>
Op. panel [OP]
ON <<
OFF
ON >>
ON <
ON >
PC [DPV1]
Releases
ON
OFF
Rl
PC
Acyclic Receive
DP
Bit 0.0
Bit 1.7
Number: 16
