Example:
Enabled commands

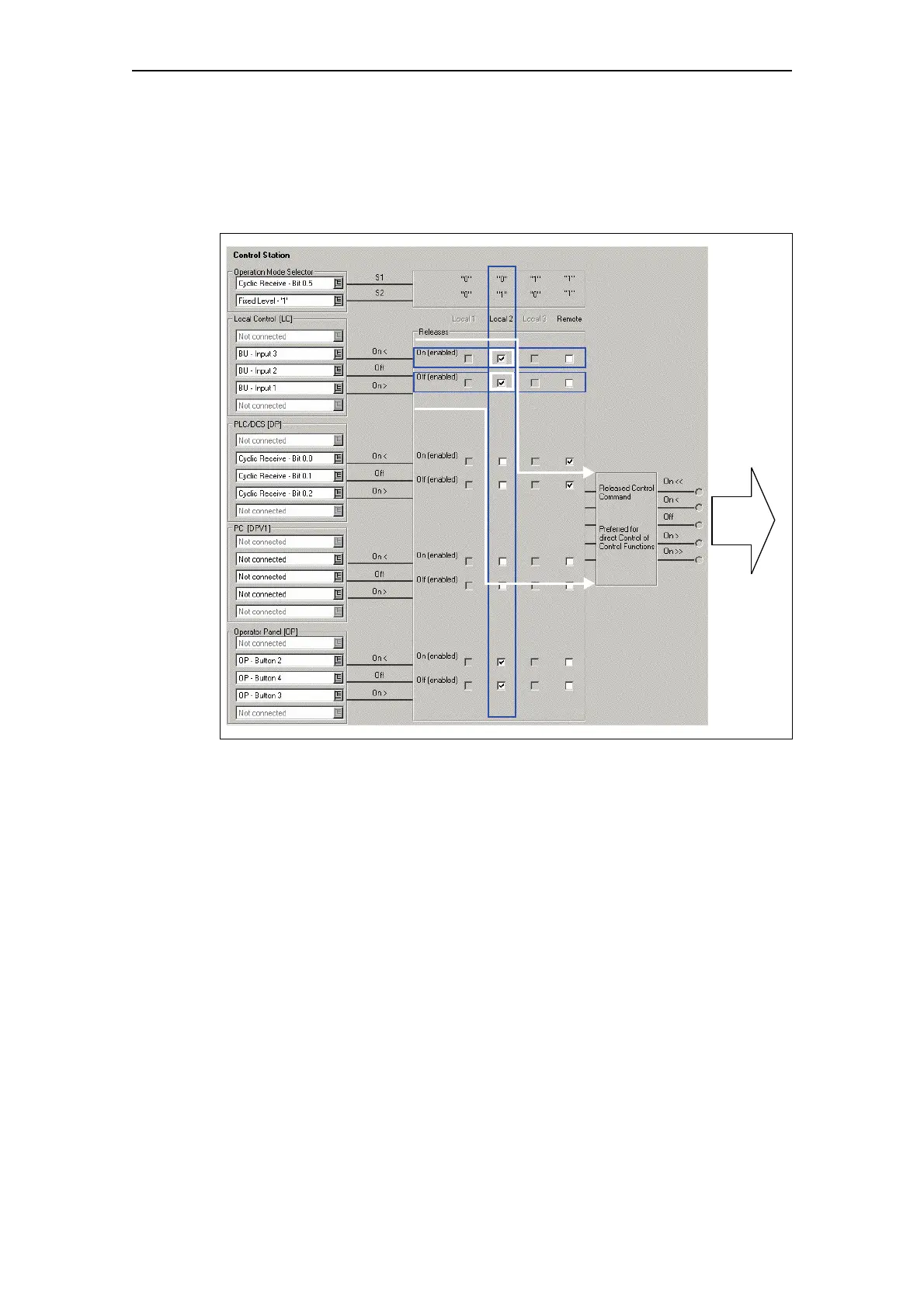

The following diagram shows an example of enabled commands for the
"Local 2" operating mode, "Dahlander reversing starter" control function:
Fig. 4-7: Example for enabled commands
In the example, the motor can only be switched on and off in the "Local 2"
operating mode via the buttons (local) connected to the inputs of the basic
unit and the digital module.
Control command "OFF" enabled
Control commands "ON" (ON<<, ON<, ON>, ON>>)"
enabled
To the control function
"Protection/Control"

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
