Siemens SIMOCODE pro System Manual

Motor control
SIMOCODE pro
4-60 GWA 4NEB 631 6050-22 DS 03
Schematic

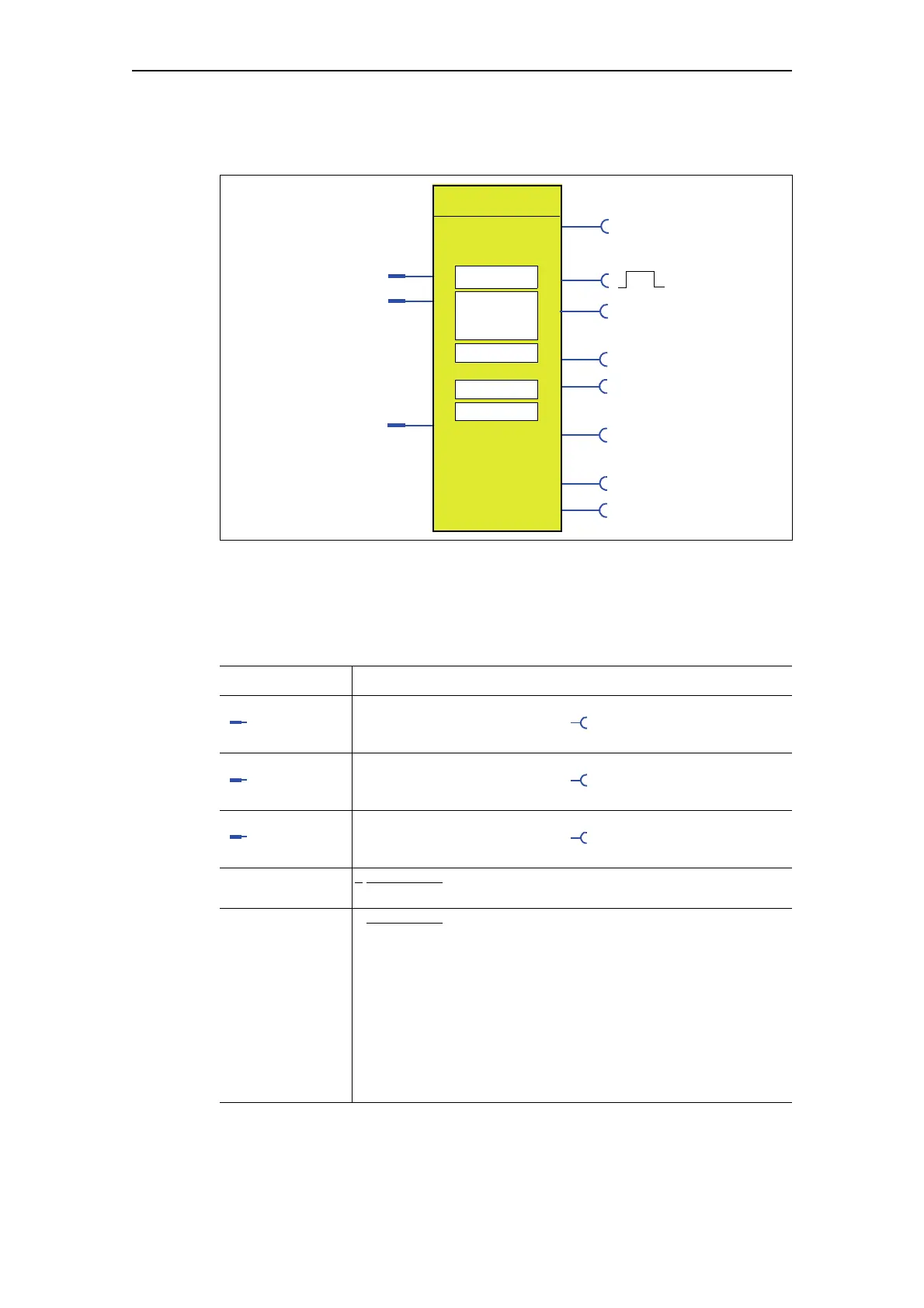

Fig. 4-25: Schematic of "Soft starter" control function, "Protection/Control" function block
Settings
You will find detailed information about the settings in:
Chapter 4.2.2 "General settings and definitions".
Soft starter Description
OFF OFF control command
(connection with arbitrary socket ,
usually with "Enabled control command - OFF" socket)
ON > ON control command
(connection with arbitrary socket ,
usually with "Enabled control command - ON >" socket)
FB ON Auxiliary control input "Feedback ON"
(connection with arbitrary socket ,
usually with "Status - Motor current flowing" socket)
Non-maintained
command mode
•
Deactivated
• Activated
Separate failsafe
function from
control function
• Deactivated
:
Safety-oriented tripping via the DM-F module also affects the
SIMOCODE pro control function, so that additional fault
messages are avoided.
This setting is selected for applications where safety-oriented
tripping directly affects the motor controlled by SIMOCODE pro.
• Activated:
Safety-oriented tripping via the DM-F module does not affect the
SIMOCODE pro control function.
This setting is selected for applications where safety-oriented
tripping does not affect the motor controlled by SIMOCODE pro.
Table 4-19: Soft Starter settings
Control commands
Auxiliary control inputs
Contactor controls
Status
QE1
FB ON*
QLA
QLE>
QLS
OFF
ON >
OFF
ON >
Protection/Control
Feedback time
Execution time
Non-maintained
Load type
(ON >)
(OFF)
(Fault)
*Feedback ON
QE3
Displays
20 ms
QE4
ON
Soft starter
Motor protection
Network contactor
Separate failsafe
function from
command mode
control function
