Siemens SIMOCODE pro System Manual

Outputs
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
6-3
Extent and application
Outputs are used, e.g. for controlling motor contactors, status display or
signaling via PROFIBUS DP. The system provides different types of outputs
depending on the device series and the expansion modules in use:

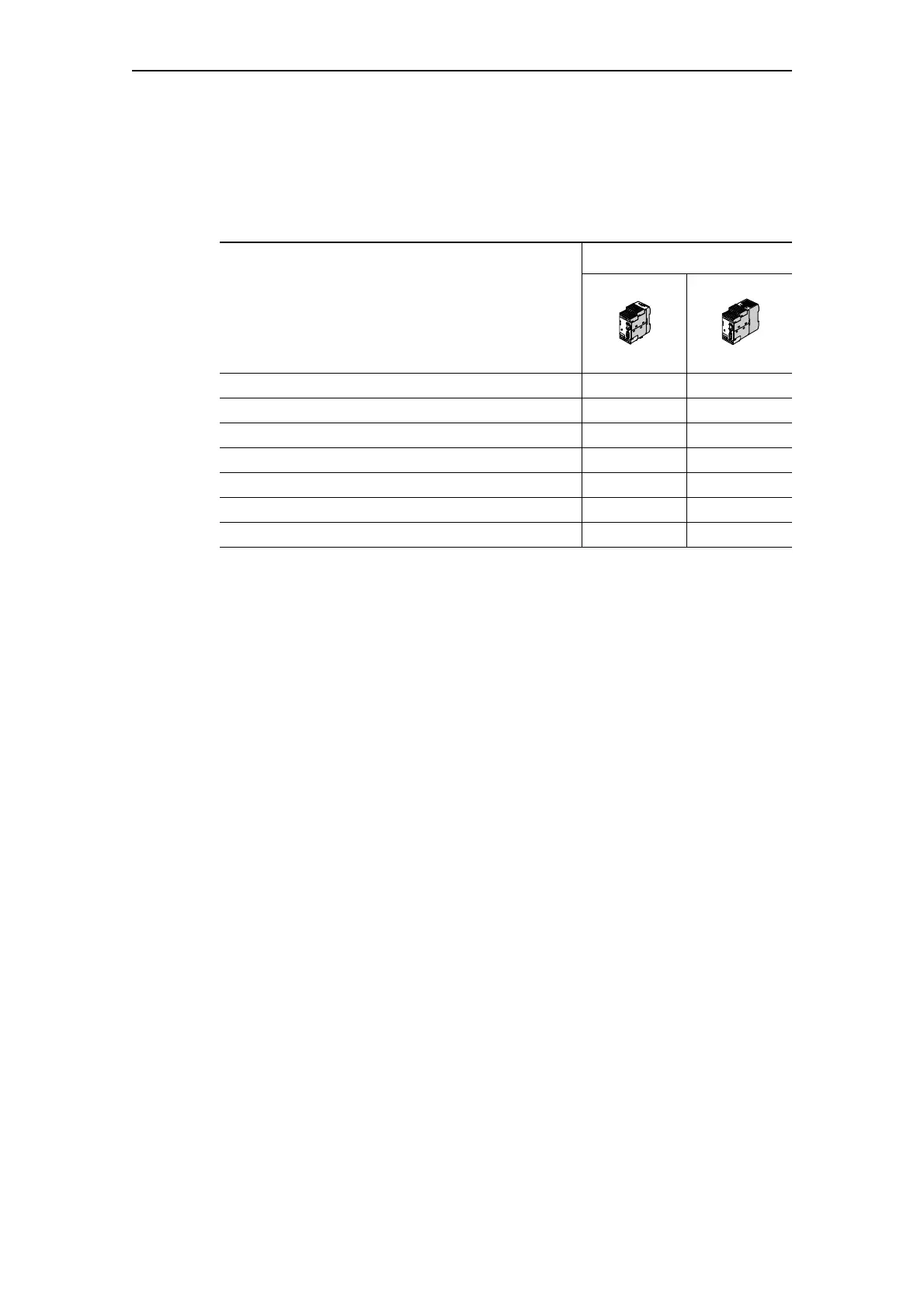

Table 6-1: Outputs
SIMOCODE
Outputs pro C (BU1) pro V (BU2)
Basic unit outputs (BU Outputs) ✓ ✓
Operator panel LED (OP LED) ✓ ✓
Digital module 1 outputs (DM1 Outputs) — ✓
Digital module 2 outputs (DM2 Outputs) — ✓
Analog module output (AM Output) — ✓
Acyclic Send Data (Acyclic Send) ✓ ✓
Cyclic Send Data (Cyclic Send) ✓ ✓

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
