Outputs
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
6-13
Application examples
1) Output of the effective motor current - across the entire motor
current range
The motor current of a motor ranges from 0 to 8 A.
The rated current I
N
of the motor at nominal load is 2 A.
The parameterized set current I
s
in SIMOCODE ES corresponds to the rated
current I
N
(2 A). In SIMOCODE pro, representation of the effective phase
currents or the maximum current (current IL_1, IL_2, IL_3, max. current
I_max) corresponds to the selected range as a percentage of the
parameterized set current I
s
:
– 0 A motor current corresponds to 0 % of I
s
– 8 A motor current corresponds to 400% of I
s
– The smallest unit for the effective motor current in SIMOCODE pro is
1% (see measured values data record 94)

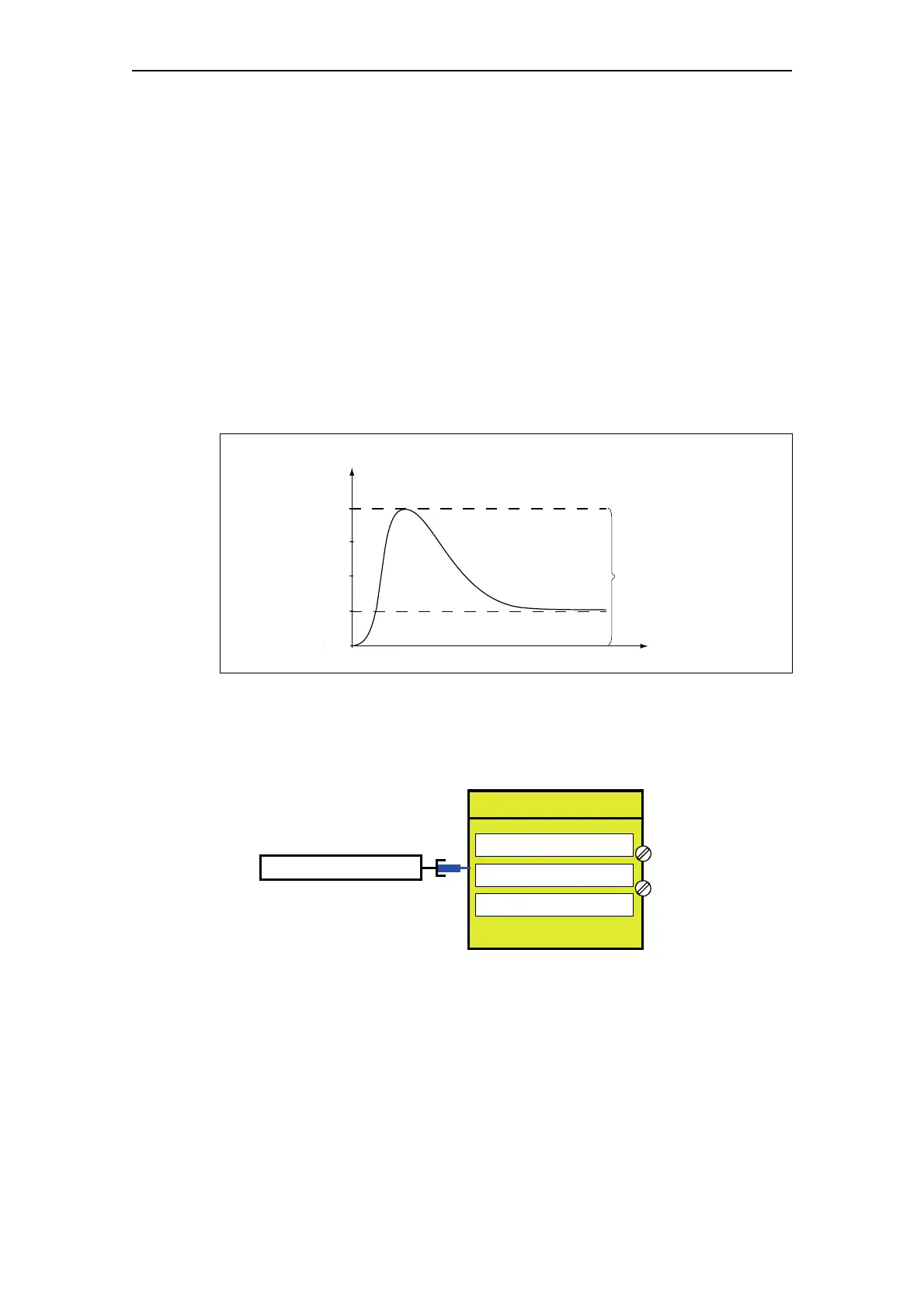

Fig. 6-8: Application example: Motor current output - entire range
As a result,
– The "Start value of value range" to be selected is: 0
– The "End value of value range" to be selected is: 400.
Fig. 6-9: Application example: Motor current output - output values to function block
AM Output
When the parameterized "Output signal" = 0 - 20 mA:
– 0 % motor current corresponds to: 0 mA at the analog module output
– 400% motor current corresponds to: 20 mA at the analog module output.
When the parameterized "Output signal" = 4 - 20 mA:
– 0 % motor current corresponds to: 4 mA at the analog module output
– 400% motor current corresponds to: 20 mA at the analog module output.
$
W>V@
PRWRUFXUHQW,PD[
>,PD[RI,
H
@
$,
1


HQWLUHUDQJH
PRWRUFXUUHQWRI,
H

,
1
 ,
H
 $
Max. current I_max
OUT+
AM Output
OUT-
Start value of value range
End value of value range
Output signal
0
400
0-20 mA
Assigned
analog output value
