Analog value recording
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
8-3
Schematic

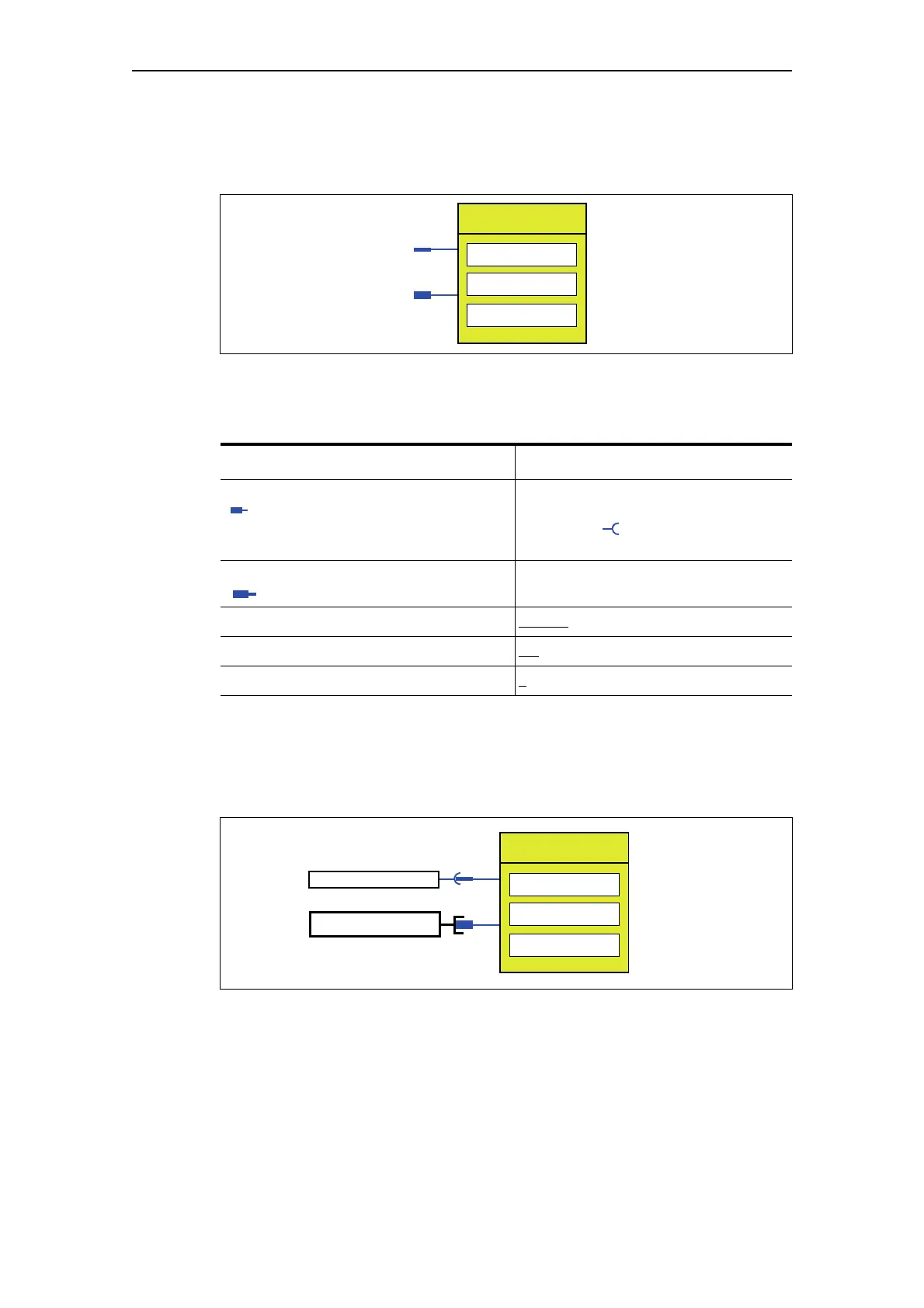

The following schematic shows the "Analog Value Recording" function block:
Fig. 8-2: Schematic of the "Analog Value Recording" function block
Settings
Table 8-1: "Analog value recording" settings
Application example
Record the motor current when the motor starts/sampling time = 12 s/pre-
trigger = 25% (3 s):
Fig. 8-3: Application example of the analog value recording
Signal/value Range
Trigger input Activate the analog value recording with
any signal
(any sockets ,
z. B. device inputs, current flowing)
Allocated analog value Any value (1 word/2 bytes) in
SIMOCODE pro
Trigger edge Positive
/negative
Sampling rate 0.1
to 50 s in 0.1 s increments
Pre-trigger 0
to 100% in 5% increments
Analog value recording
Assigned
Trigger input
Trigger edge
Sampling rate
Pre-trigger
analog value
0.2 s
25 %
Motor current flowing
Analog value recording
Trigger edge
Sampling rate
Pre-trigger
Max. current I_max
Positive
