Siemens SIMOCODE pro System Manual

Standard functions
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
10-19
Function of the SET/RESET button on DM-F Local
Fig. 10-10: SET/RESET button
See system manual "Failsafe Digital Modules SIMOCODE pro SAFETY".
DM-F Local - Automatic starting after power failure
Danger
Automatic starting after power failure. Risk of death or serious injury.
In the case of automatic starting after a power failure, the enabling circuits are
connected without pressing the Start button.
Settings of the DIP switches (DM-F Local)

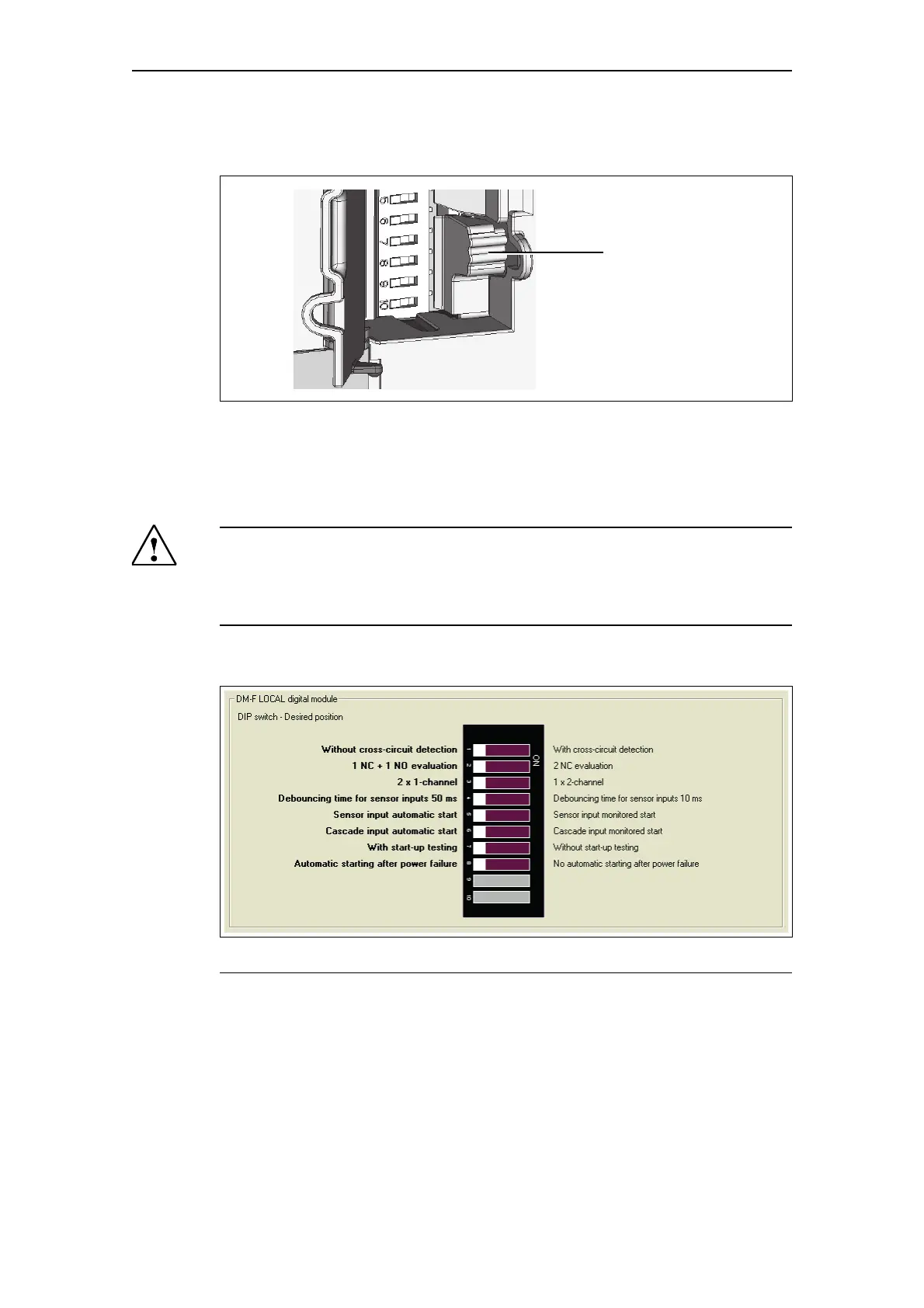

Fig. 10-11: Settings of the DIP switches (DM-F Local)
*) Notice:
The set DIP switch position in the SIMOCODE ES user interface (which can
be set using the mouse pointer) is transferred to the basic unit as part of the
download. However, it does not affect the function of the DM-F Local digital
module.
This way, the desired function is already set during parameterization.
The effective parameterization must be set using the DIP switches on the
front of the DM-F Local (see table below and/or "Failsafe digital module
SET/RESET button
*)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
