Siemens SIMOCODE pro System Manual

Logic modules
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
11-17
NOR function
You can implement a NOR function with the "Level inverted" type of signal:

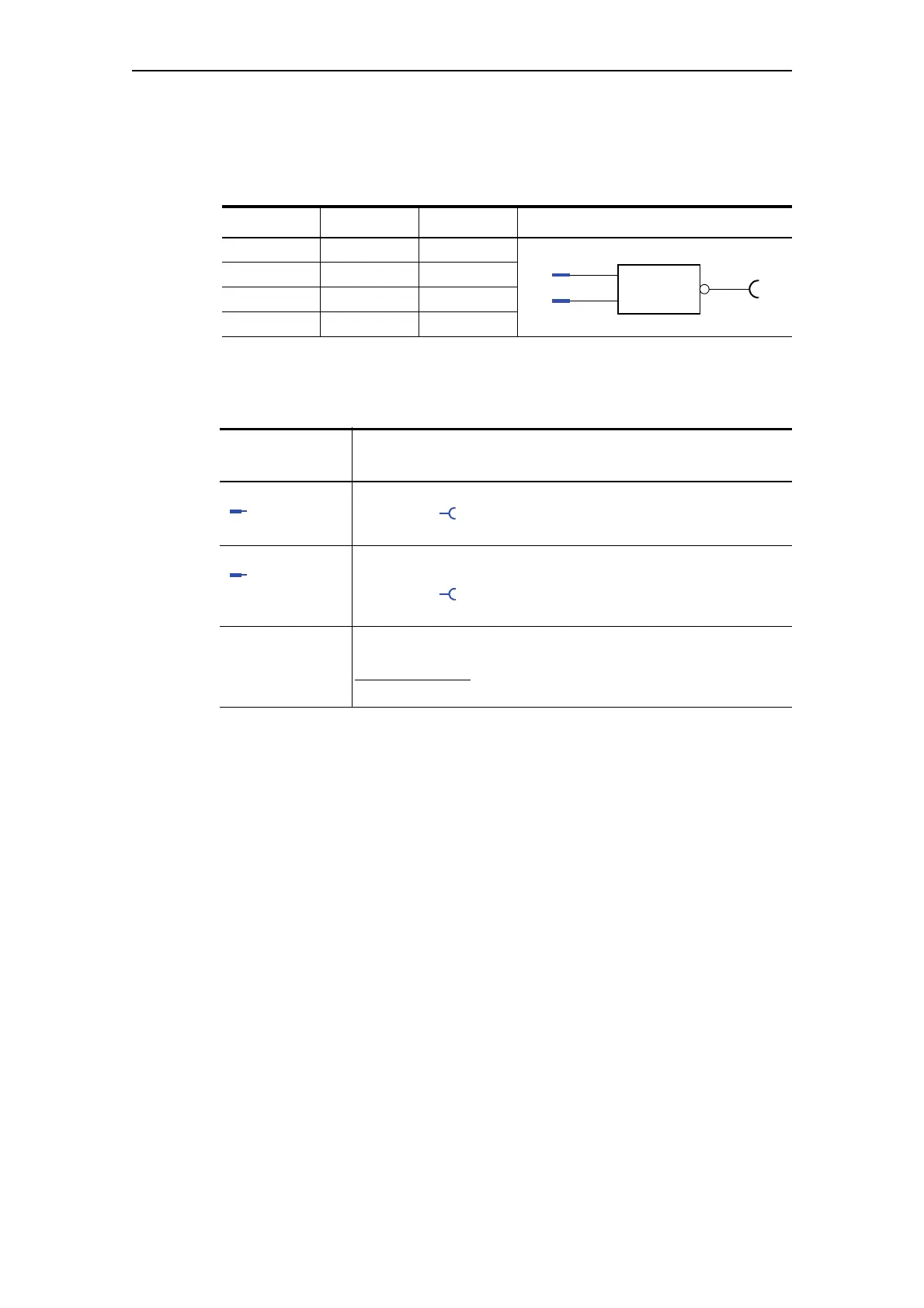

Table 11-6: NOR function
Settings
Input Reset Output Schematic
001
100
010
110
Signal conditioner
1 to 4 -
Description
Input Activation by any signal
(any sockets ,
e.g. device inputs, control bits from PROFIBUS DP, etc.)
Reset Resets the signal conditioner to 0.
Activation by any signal
(any sockets ,
e.g. device inputs, control bits from PROFIBUS DP, etc.)
Type Different output responses
Range:
Level not inverted
, level inverted,
edge rising with memory, edge falling with memory
Table 11-7: Signal conditioner settings
Input
Reset
Output
>
=
1
