Siemens SIMOCODE pro System Manual

Mounting, wiring, interfaces
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
13-13
Supplying the inputs of the basic unit
There are three possibilities for supplying the inputs:
• a): 24 V DC internal
• b): 24 V DC external However, input 3 is the reference potential, i.e.
three inputs are available.
• c): 24 V DC external Only possible for basic units with a supply voltage of
24 V DC!

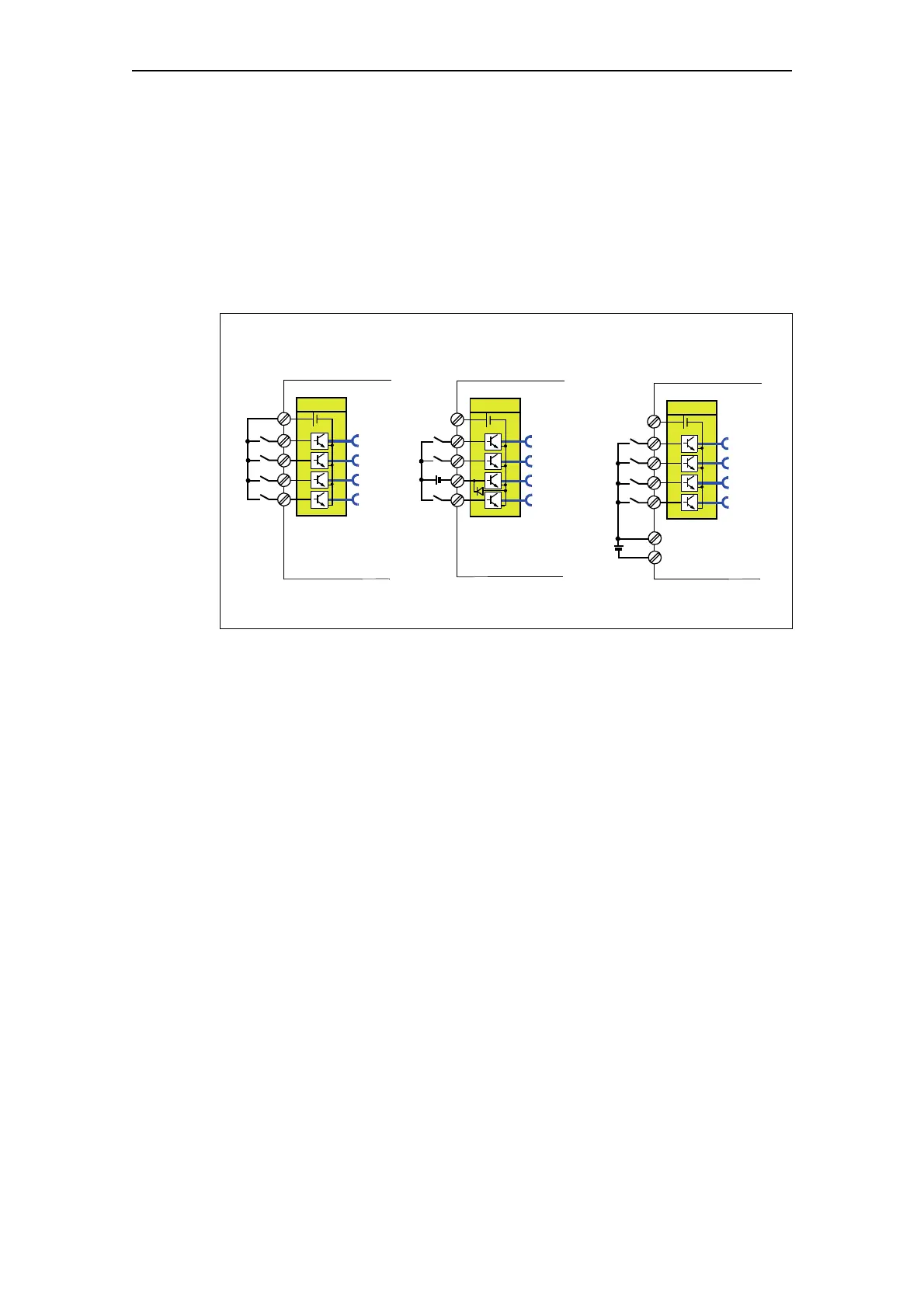

Fig. 13-9: 24 V DC for supplying the inputs
All inputs work reactionless, i.e. the signal statuses on neighboring inputs
do not influence each other.
Basic unit (BU)
BU Inputs
1
2
3
4
IN1
IN2
IN3
IN4
24 V DC internal, 4 inputs usable
Basic unit (BU)
BU Inputs
1
2
3
4
IN1
IN2
IN3
IN4
24 V DC external, 3 inputs usable
Basic unit (BU)
BU Inputs
1
2
3
4
IN1
IN2
IN3
IN4
24 V DC external, 4 inputs usable
A1
A2
a) b) c)
Only possible for the basic unit with 24 V DC
supply voltage!
24 V DC
(not usable)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
