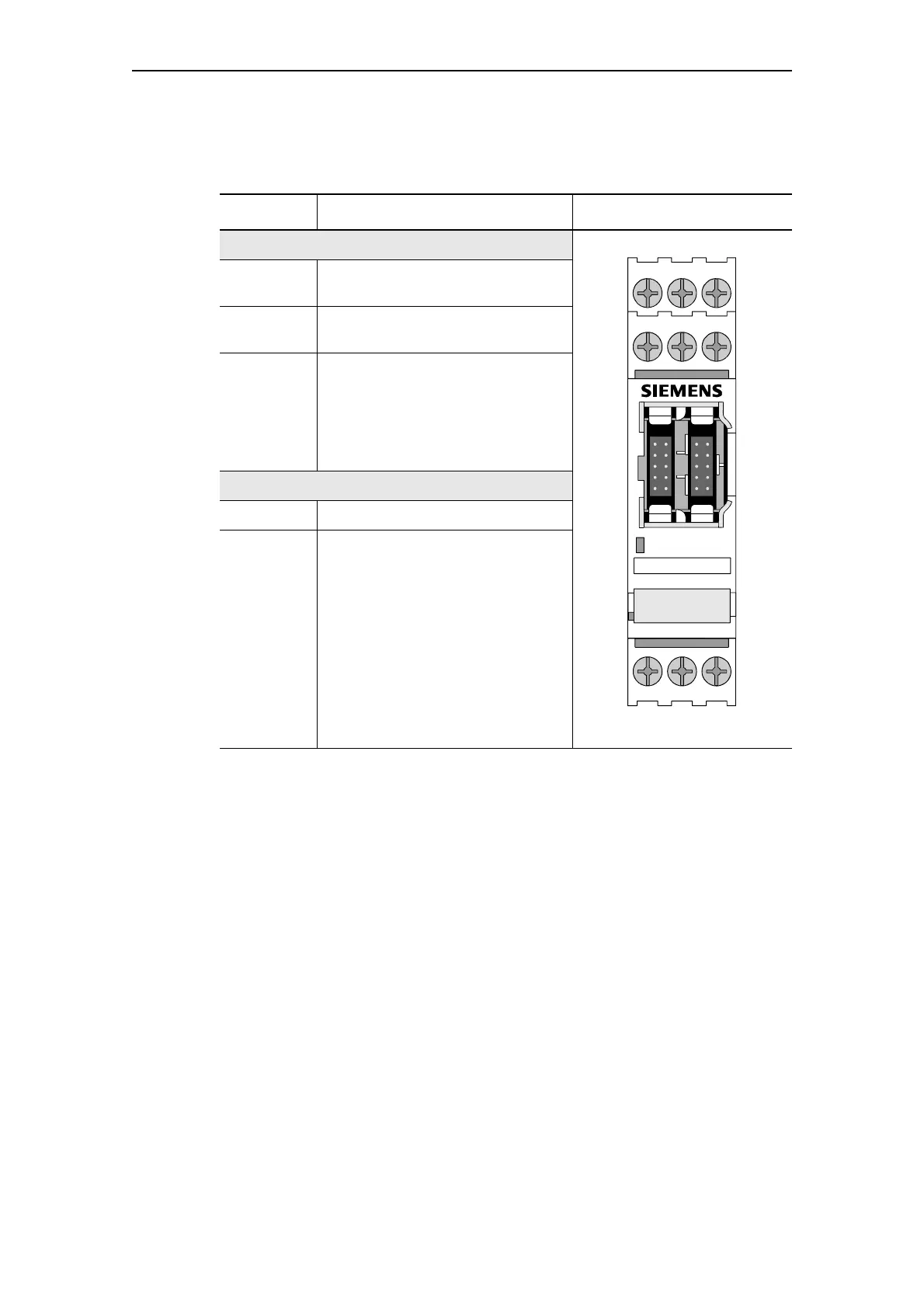

Earth-fault module pin assignment
The following table shows the pin assignment of the removable terminals:
Table 13-7: Pin assignment of the removable terminals of the earth fault module
Connection Assignment
Upper terminals
40 Input C1 summation current
transformer
43 Input C2 summation current
transformer
Lower terminals
PE System shielding
40
READY
C1
43
C2
EM
3UF7 500–1AA00–0
G/YYMMDD
*
Exx
*
PE
