Siemens SIMOCODE pro System Manual

Mounting, wiring, interfaces
SIMOCODE pro
13-34 GWA 4NEB 631 6050-22 DS 03
Technical data of the current transformer
• Secondary current: 1 A
• Frequency: 50 Hz/60 Hz
• Transformer rating: Recommended >
2.5 VA, according to the secondary
current and cable length
• Overcurrent factor: 5P10 or 10P10
• Accuracy class: 1
Example 1:
• 3UF1868-3GA00 current transformer:
– Primary current: 820 A at nominal load
– Secondary current: 1 A
• SIMOCODE pro with 3UF7 100-1AA00-0 current measuring module,
Set current 0.3 to 3 A
This means:
– The secondary current of the current transformer is 1 A at the rated load
and is, therefore, within the 0.3 to 3 A setting range of the current
measuring module used
– The set current I
s
to be parameterized in SIMOCODE pro is 1 A.

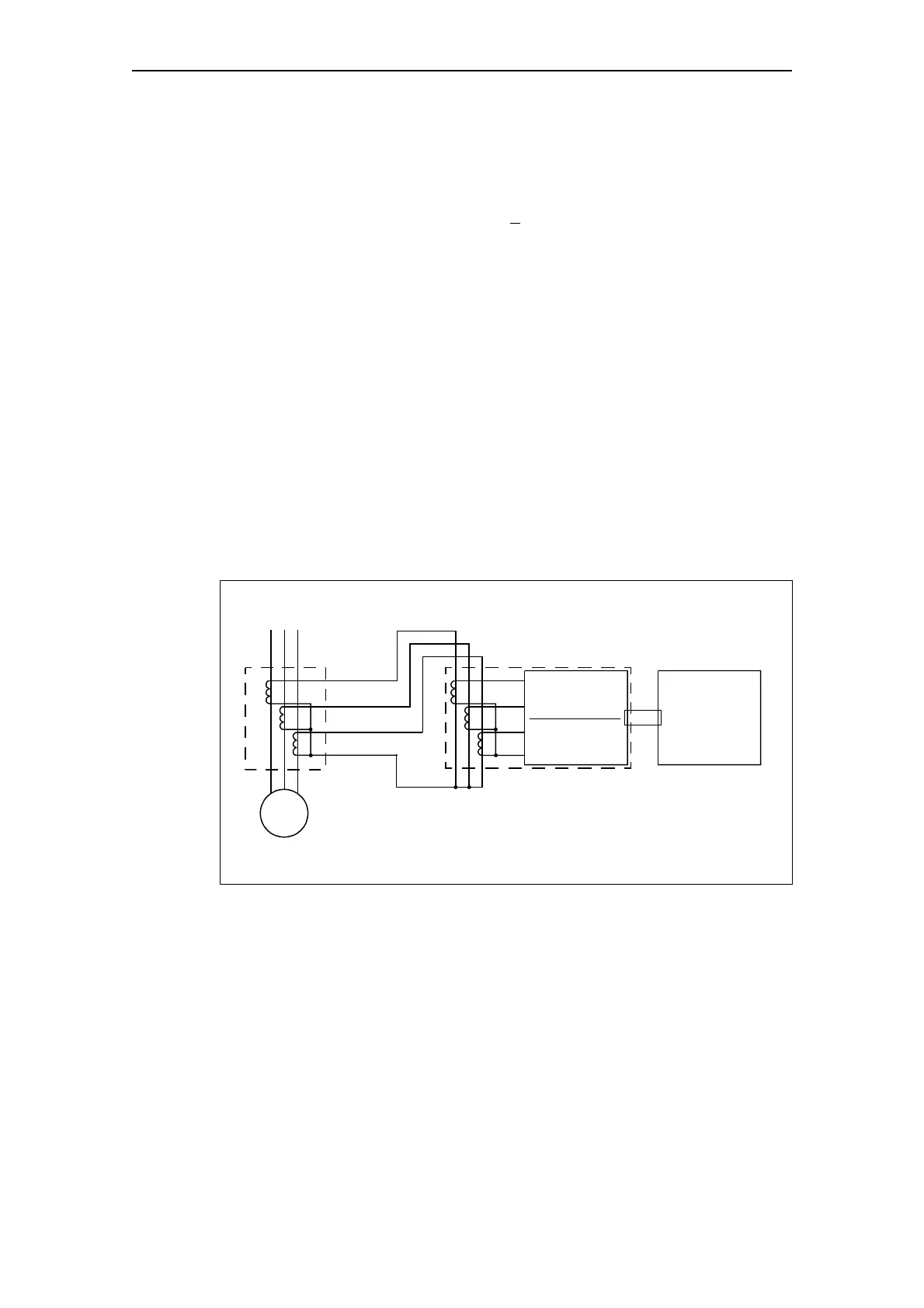

Fig. 13-21: Example (1 of 2) for current measuring with an 3UF18 external current transformer
M
3~
L1 L2 L3
K1
K2
K3
L
Main circuit
Current measuring
module 3UF 71
3UF18 current transformer
Basic unit
3UF 70
Secondary circuit
Primary current at
nominal load: 820 A
Secondary current: 1 A Set current I
s
: 1 A
Adjustment range:
0.3 A - 3 A

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
