Line connection and line-side power components
3.9 Active Interface Modules internal air cooling
Booksize Power Units
126 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

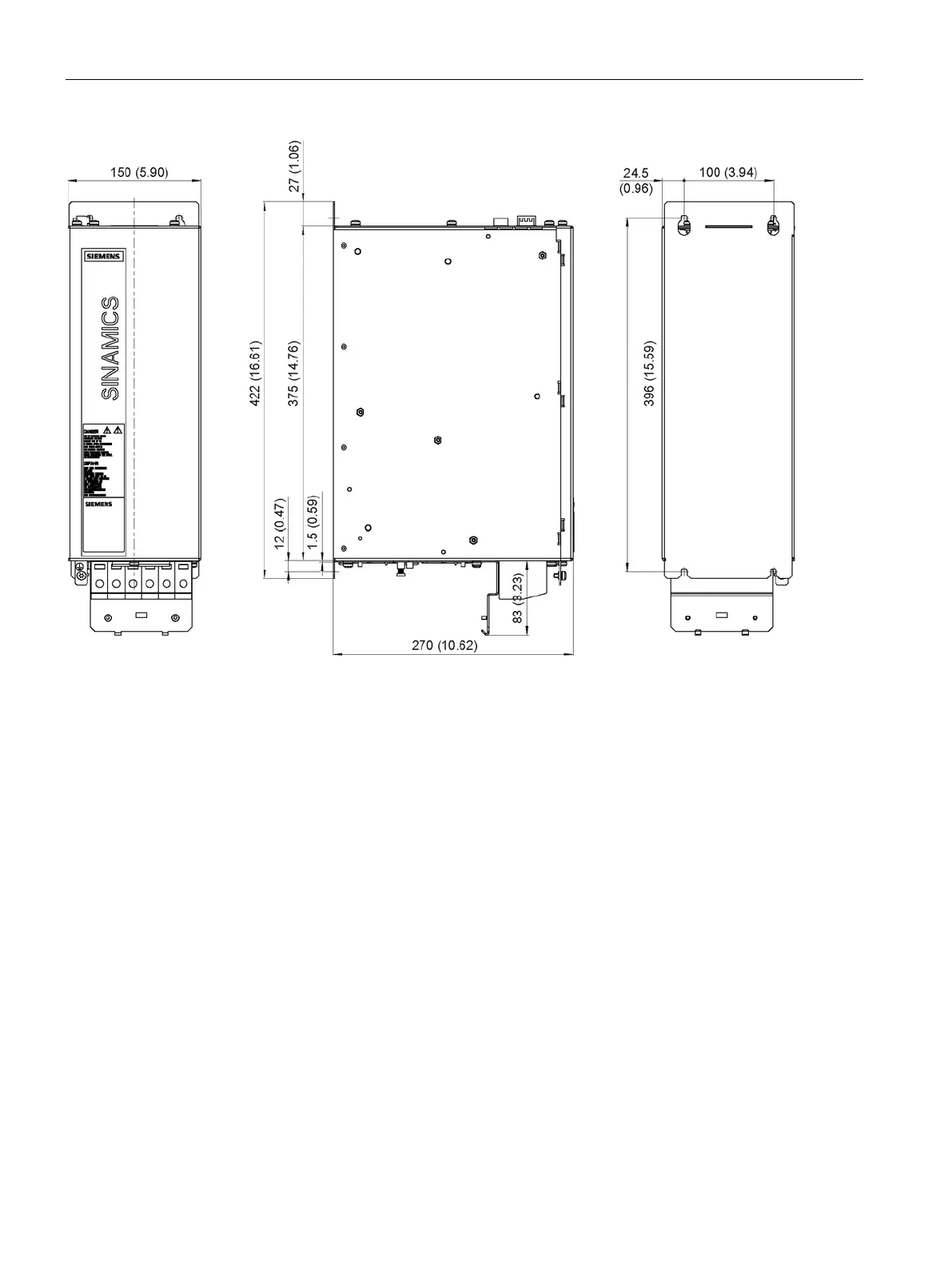

Figure 3-57 Dimension drawing of Active Interface Module 36 kW, all dimensions in mm and (inches)
