6.4 Motor Modules with cold plate
Booksize Power Units
436 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
6.4.7.3
Characteristics
Rated duty cycles Motor Modules Booksize

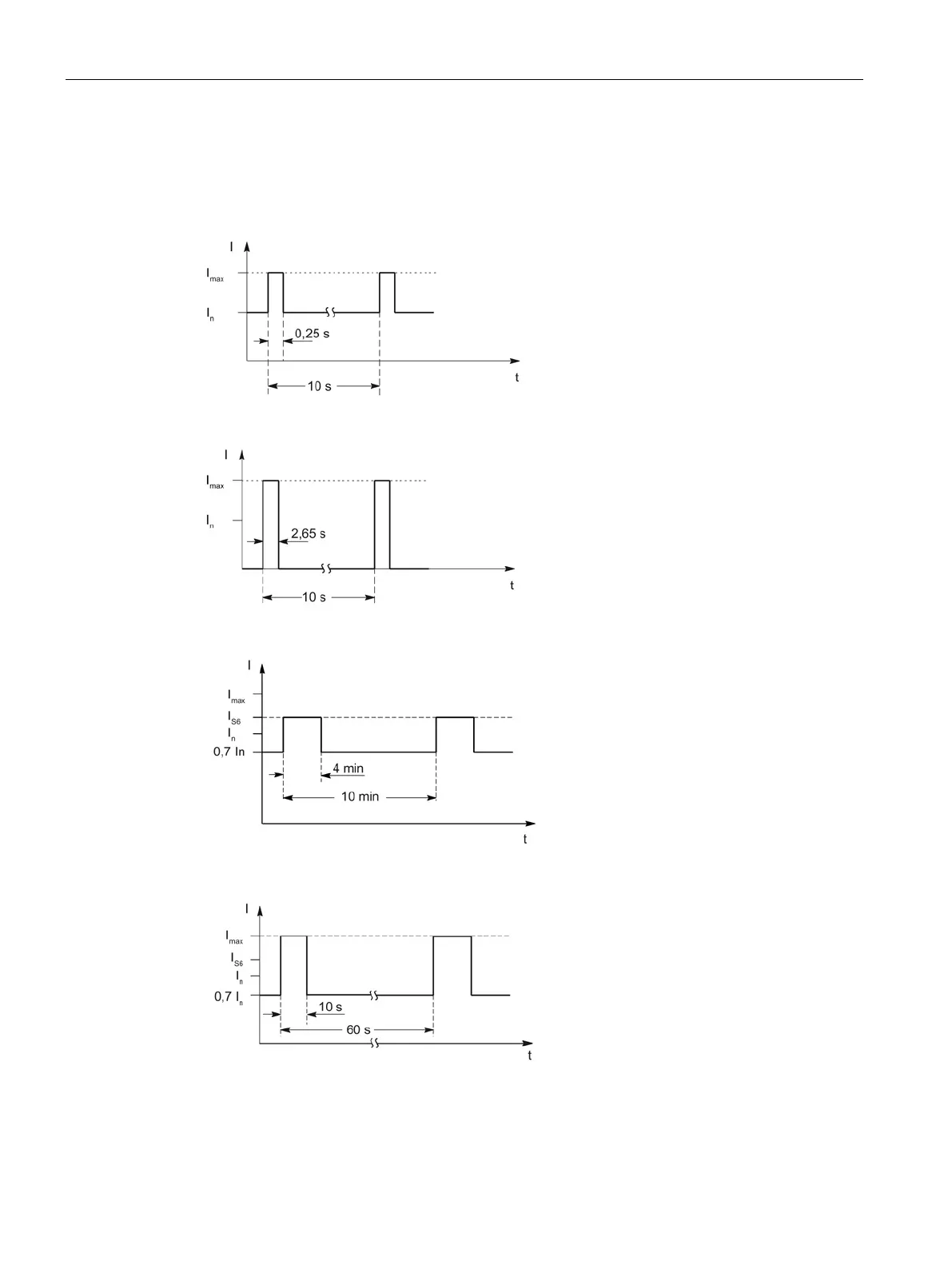

Figure 6-72 Duty cycle with initial load (for servo drives)
Figure 6-73 Duty cycle without initial load (for servo drives)
Figure 6-74 S6 duty cycle with initial load with a duty cycle duration of 600 s (for servo drives)
Figure 6-75 S6 duty cycle with initial load with a duty cycle duration of 60 s (for servo drives)
