DC link components
8.2 Braking Module Booksize
Booksize Power Units
496 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
8.2.7
Installation
①
Delivery condition with spacer - mounting depth for drive line-up in booksize format with internal air cooling
②
Spacer removed - mounting depth for drive line-up in booksize format with external air cooling

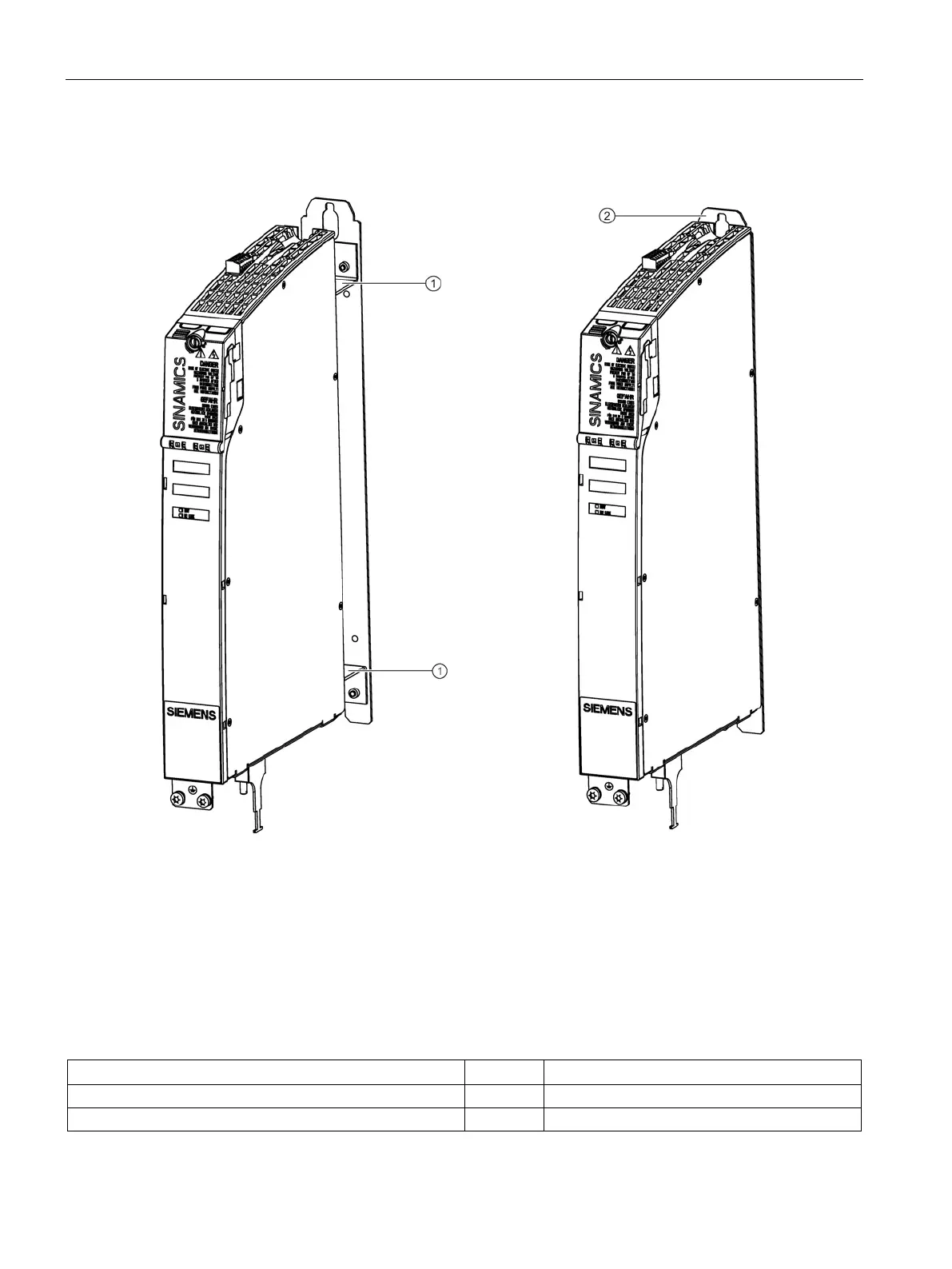

Figure 8-4 Methods of installing Braking Modules with/without spacer elements
8.2.8
Technical data
Table 8- 5 Technical data
6SL3100-1AE31-0AB.
DC link voltage
V
DC
510 … 720
DC link capacitance
µF
110
