14.1 Replacing the fan
Booksize Power Units
790 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

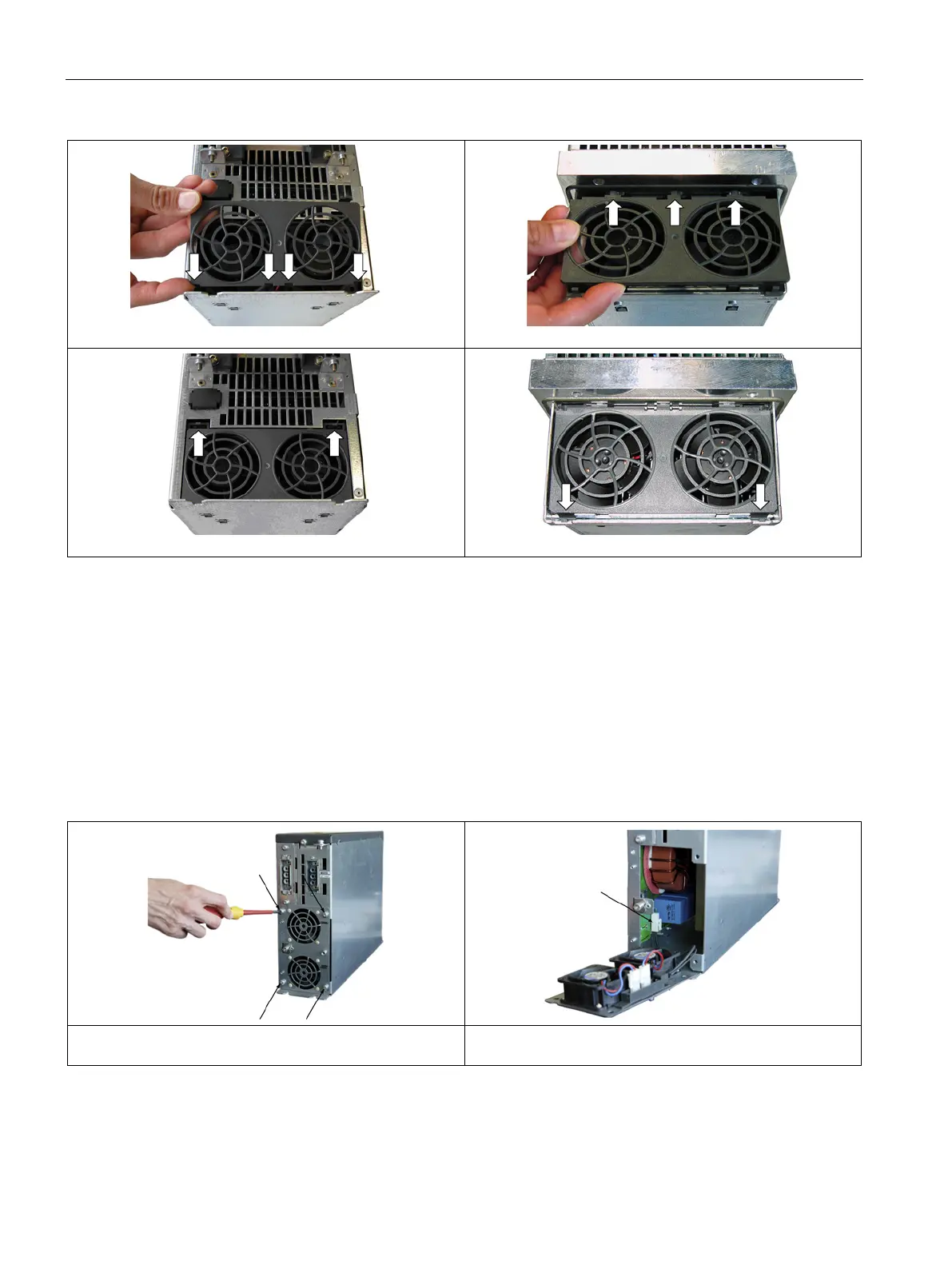

2. Attach the fan cover.
2. Attach the fan cover (the lugs first).
3. Press on the fan cover until the catches engage.
3. Press on the fan cover until the catches engage.
Replacing the fan for components, size 300 mm
Installing the fan module on 300 mm wide components is described in Chapter "Installation"
of the respective component. The fan module is removed in the inverse sequence to
installing.
14.1.3
Replacing the fan on an Active Interface Module
Replacing the fan in an Active Interface Module, 16 kW
1. Open the fan cover.
To do this, release the combination screws M5 (3 Nm).
2. Open the fan cover and release the connector.
