Siemens SINAMICS S120 - DRIVE-Cliq Coupling; Description; Interface Description; Overview

Accessories
11.7 DRIVE-CLiQ coupling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
659
11.7
DRIVE-CLiQ coupling
11.7.1
Description
The DRIVE-CLiQ coupling is used to connect 2 DRIVE-CLiQ cables in accordance with
degree of protection IP67 acc. to IEC 60529.
In addition to the data lines, the power supply contacts of DRIVE-CLiQ are also routed via
the coupling.
You can find information on the permissible cable length in Chapter DRIVE-CLiQ signal
cables (Page 704)
11.7.2
Interface description
11.7.2.1
Overview

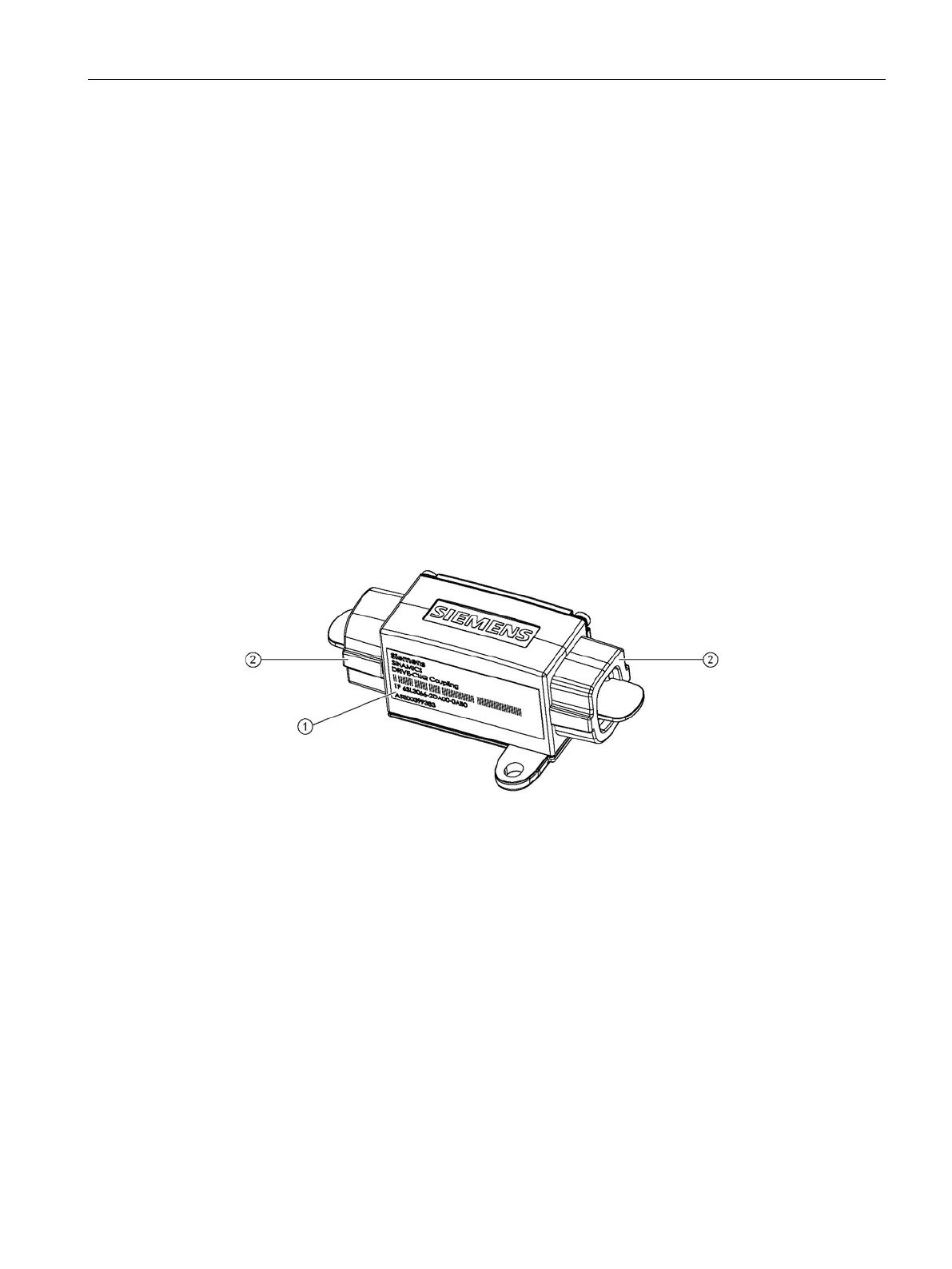

①
Rating plate
②
Protective cap, Yamaichi, Article No.: Y-ConAS-24-S
Figure 11-40 Interface overview, DRIVE-CLiQ coupling
