11.6 DRIVE-CLiQ cabinet bushings
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
655
11.6.4
Mounting
11.6.4.1
DRIVE-CLiQ cabinet bushing for cables with RJ45 connectors
In order to install the DRIVE-CLiQ cabinet gland, you must make a cutout in the control
cabinet panel as shown in the diagram below.

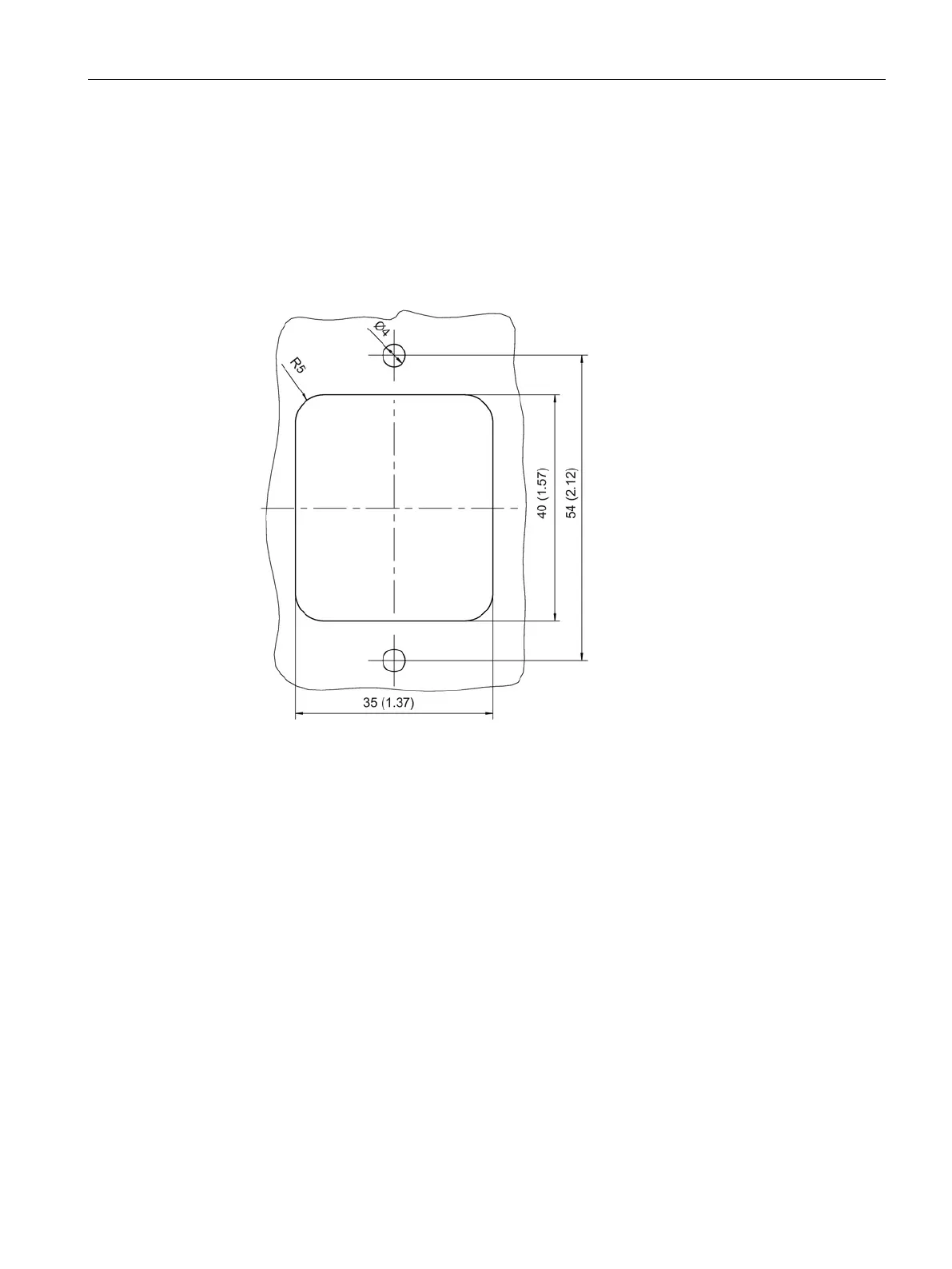

Figure 11-35 Cutout in the control cabinet, all dimensions in mm and (inches)
