Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
69
3.7.4.2
Interface description

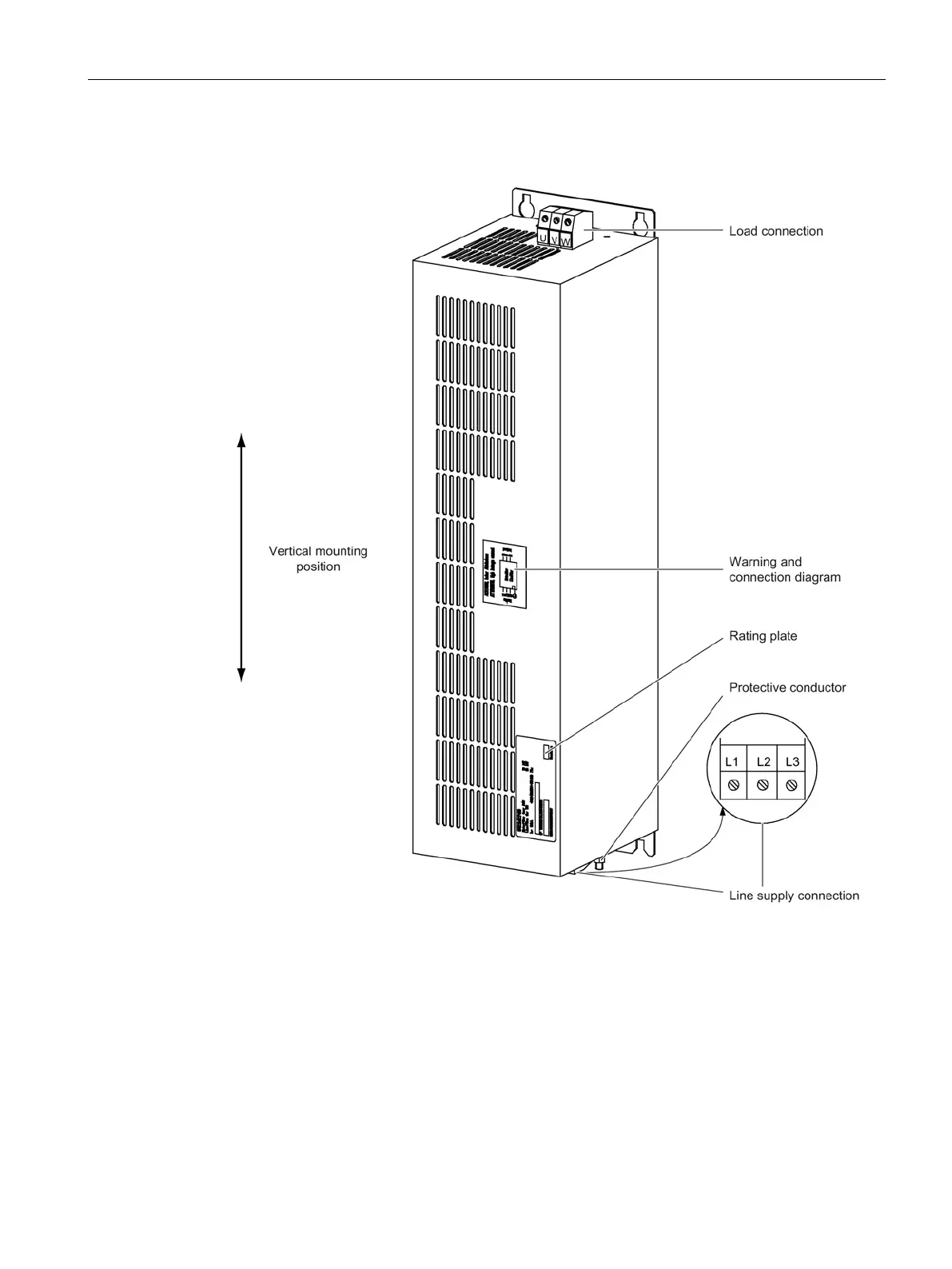

Figure 3-10 Interface overview, Wideband Line Filter for Active Line Modules (example: 16 kW)
