Siemens SINAMICS S120

Accessories
11.3 Reinforced DC link busbars
Booksize Power Units
622 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.3.3
Dimension drawings

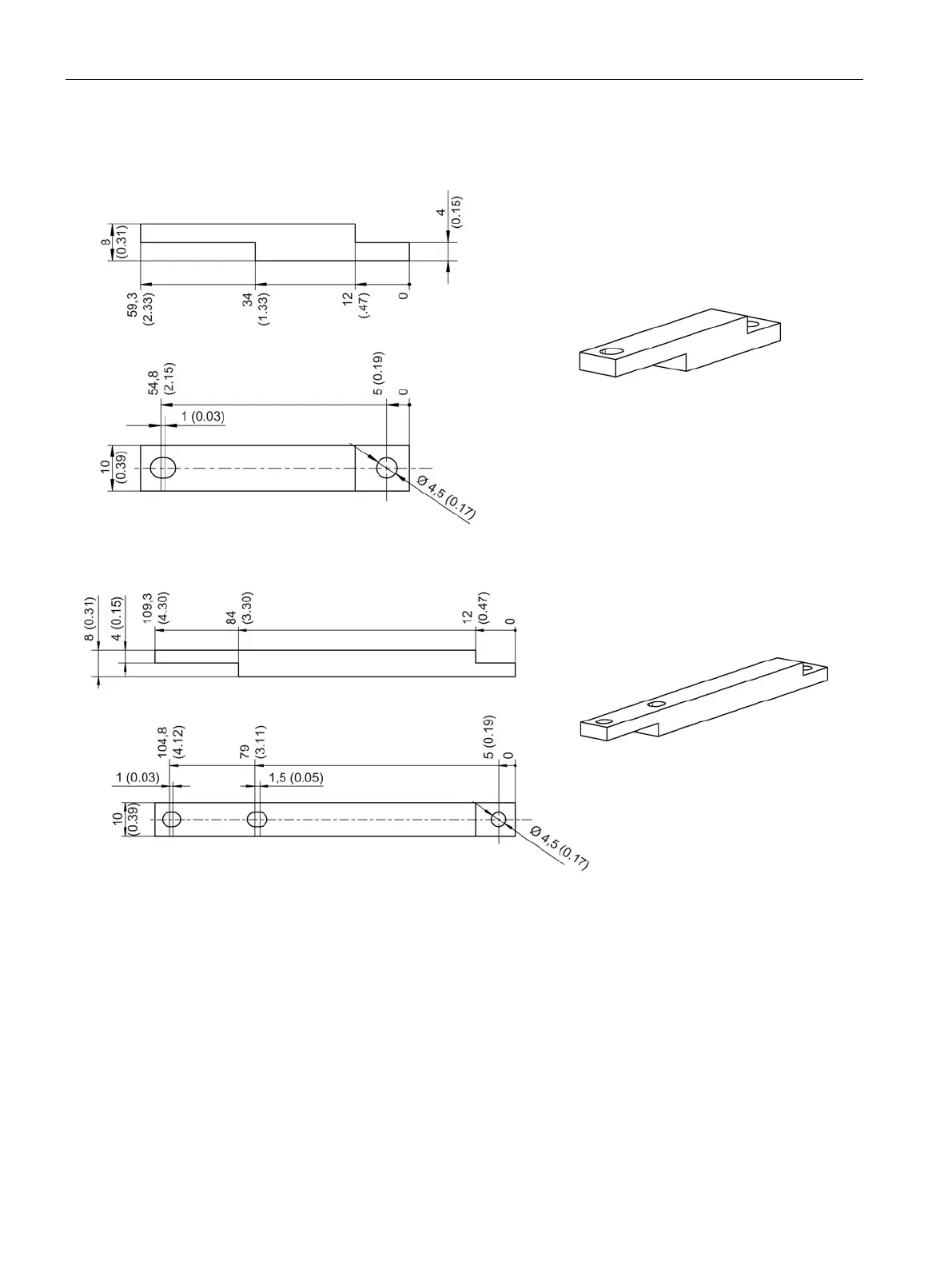

Figure 11-21 Dimension drawing of reinforced DC link busbar 50 mm, all dimensions in mm and (inches)
Figure 11-22 Dimension drawing of reinforced DC link busbar 100 mm, all dimensions in mm and (inches)
11.3.4
Removing the DC link busbars
Required tools:
● Torx screwdriver T20 for DC link screws (Torx slot)
