Siemens SINAMICS S120 - Setup Example, Drive-Line-Up, Cold Plate with External Liquid Heat Sink

Cabinet design and EMC Booksize
12.10 Information on cold plate cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
745
12.10.3.2
Setup example, drive-line-up, cold plate with external liquid heat sink
①
Control cabinet
②
Fan inside the control cabinet
③
External liquid heat sink

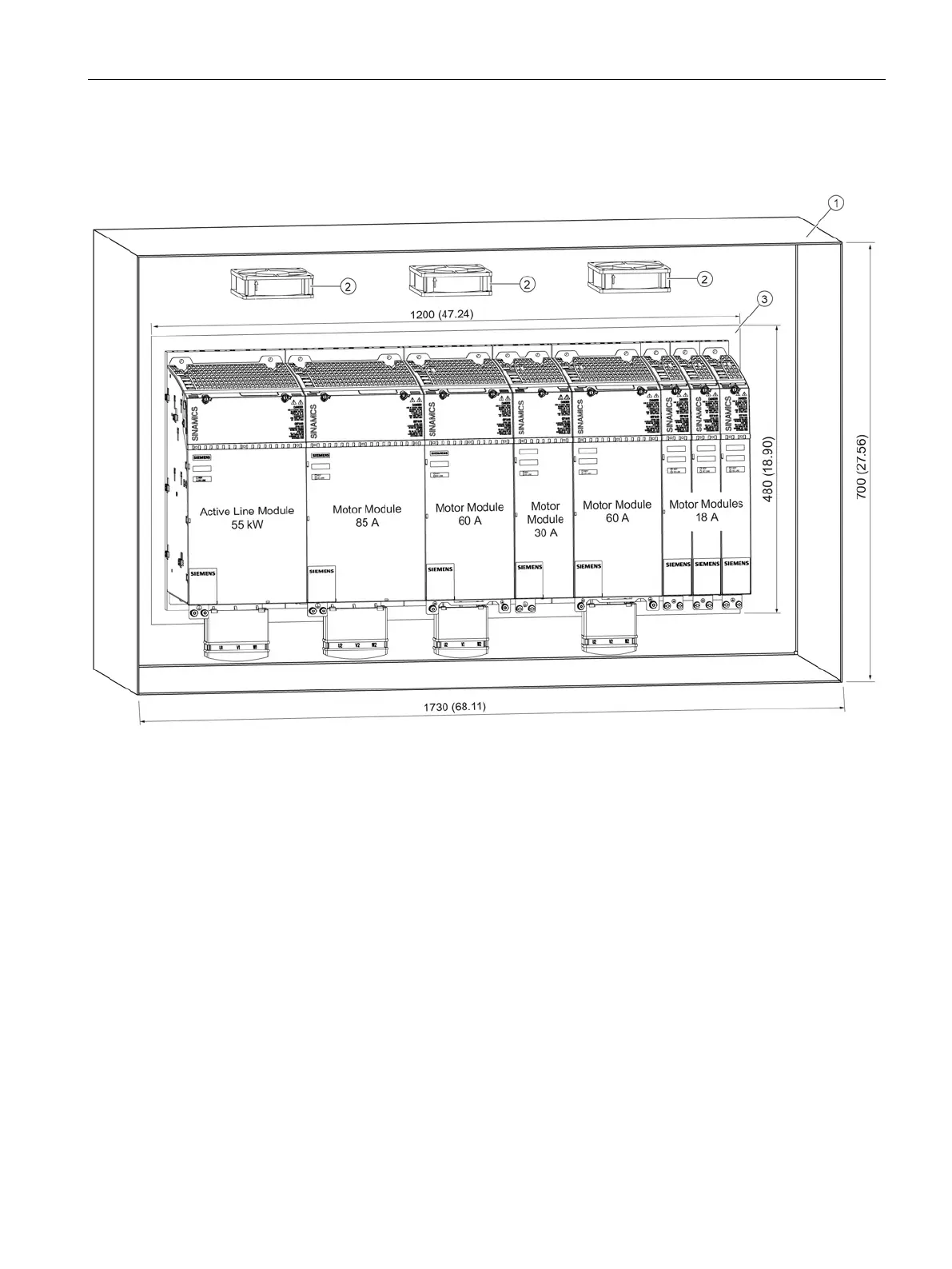

Figure 12-42 Example: cold plate drive line-up with external liquid cooling
Setup:
● Infeed: Active Line Module 55 kW
● 7 Single Motor Modules
● 3 internal fans at the top of the control cabinet
● 1 common external liquid heat sink (1200 mm x 480 mm)
The heat sinks and fans are not part of the scope of supply.
Recommended suppliers for liquid heat sinks include:
● Company DAU Ges.m.b.H & CO.KG., Ligist (Austria)
● Company Rittal GmbH & Co. KG, Herborn
