Siemens SINAMICS S120

DC link components
8.6 Control Supply Module CSM
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
547
6SL3100-1DE22-0AA1
Unit
Value
Cooling method
Internal air cooling
Weight
kg 4.8
1)
Above 40° C, a linear derating of the output current above a 26 V output voltage and higher must be observed
2)
When using circuit breakers for protection, UL approval is only possible in TN/TT line systems with grounded neutral
point. Conventional fuses are required for UL approval in line supplies with grounded line conductor.
8.6.8.1
Characteristics
Derating characteristic
For ambient temperatures > 40 °C, a linear derating for the output current must be observed
as of 26 output voltage.

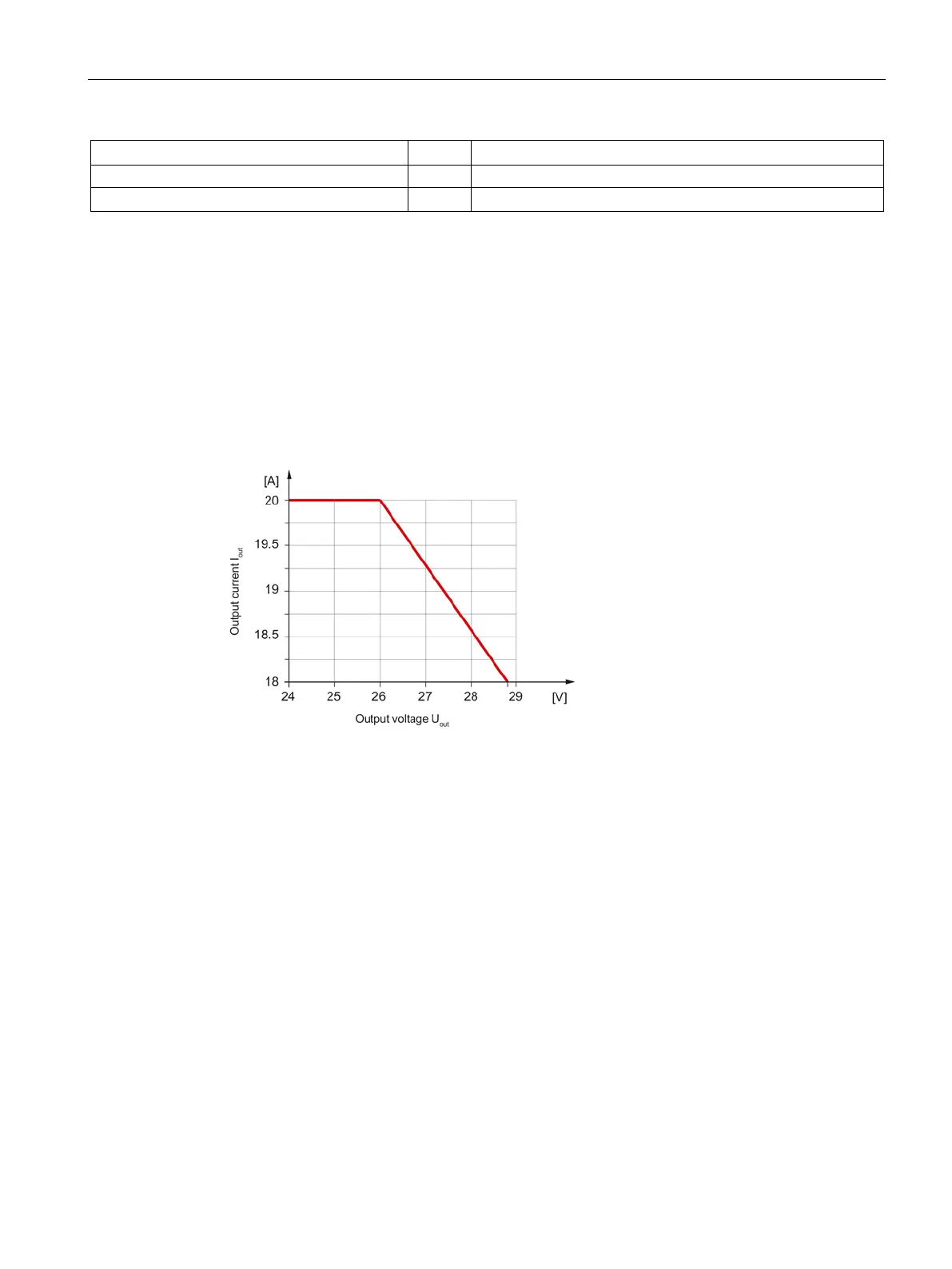

Figure 8-29 Current derating for ambient temperatures >40 °C as a function of the output voltage
