Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
85

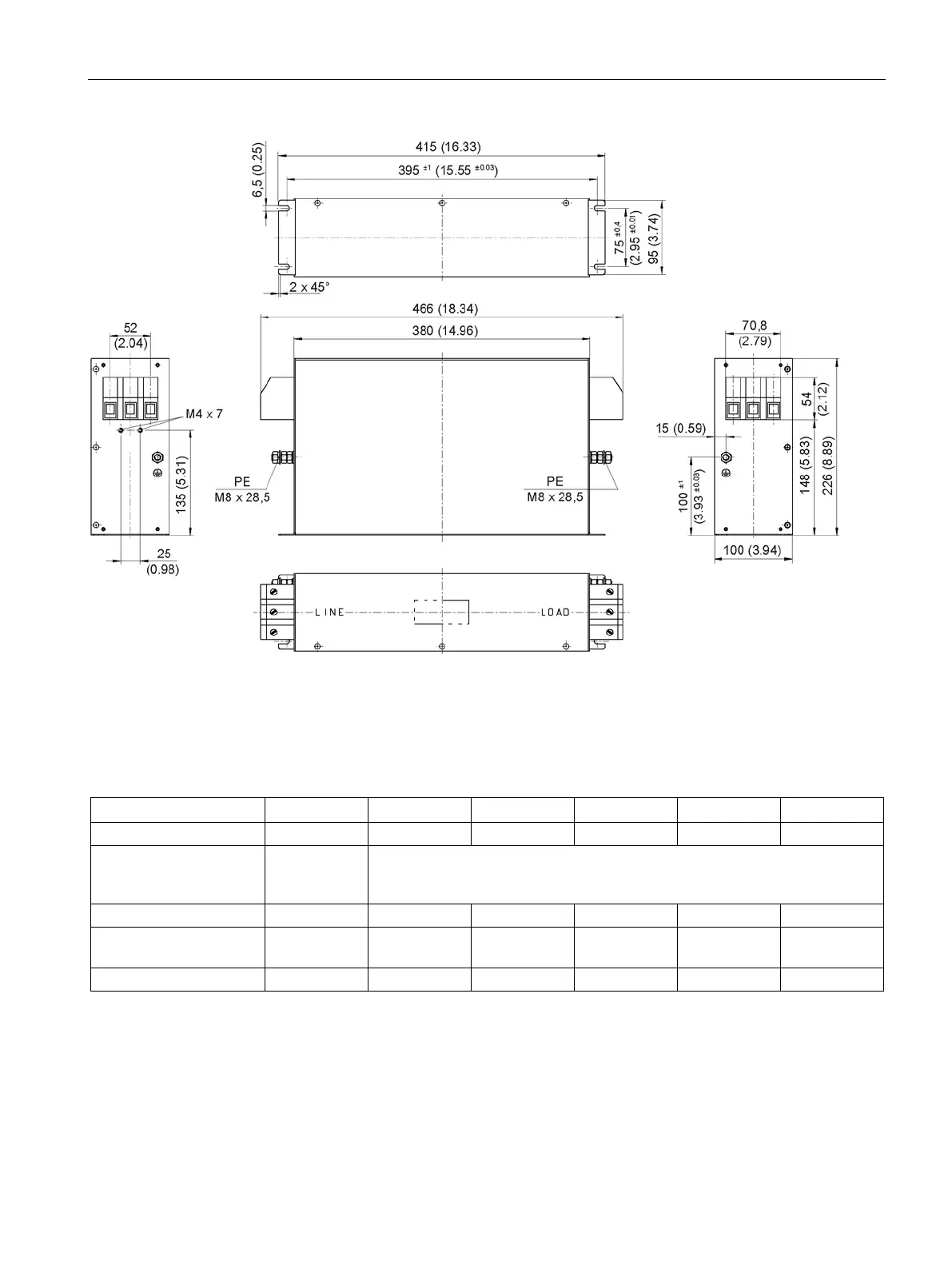

Figure 3-24 Dimension drawing of Basic Line Filter for Smart Line Modules 55 kW, all data in mm and (inches)
3.7.6.4
Technical data
Table 3- 12 Technical data for: Basic Line Filter for Smart Line Modules
6SL3000-
0HE15-0AA.
0HE21-0AA.
0BE21-6DA.
0BE23-6DA1
0BE25-5DA.
Rated power
kW
5
10
16
36
55
Supply voltage:
Line voltage
Line frequency
V
AC
Hz
3 AC 380 -10 % (-15 % < 1 min) … 3 AC 480 +10 %
47 … 63
Rated current
A
AC
12
25
36
74
105
Power loss (see power
loss tables (Page 756))
W 20 20 16 26 43
Weight
kg
2.1
2.3
5
7.5
11.5
