4.4 Active Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
181
4.4.5
Dimension drawings

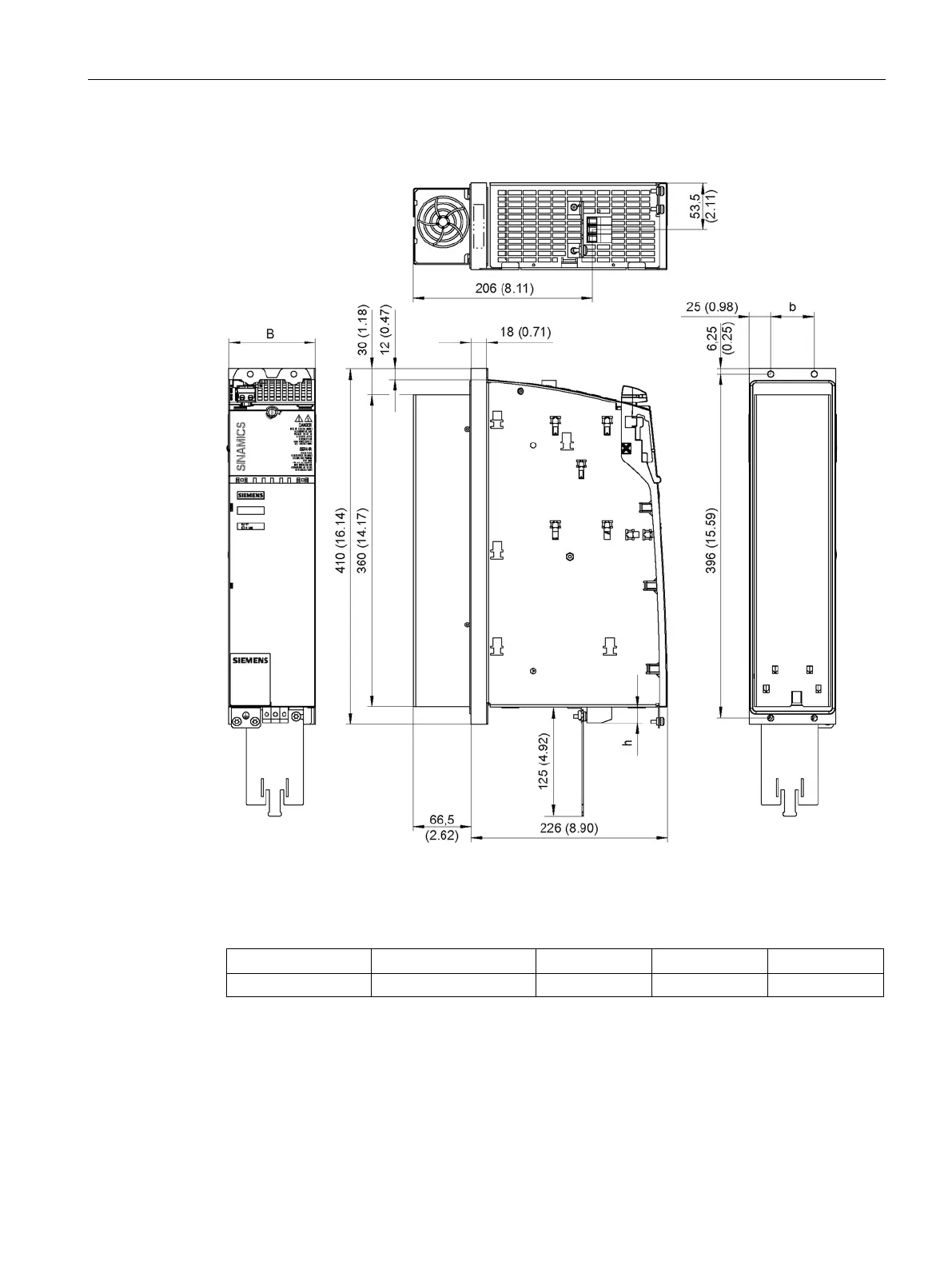

Figure 4-14 Dimension drawing of 16 kW Active Line Module with external air cooling, all dimensions
in mm and (inches)
Table 4- 19 Dimensions of 16 kW Active Line Module with external air cooling
Active Line Module
Article No.
B [mm] (inch)
b [mm] (inch)
h [mm] (inch)
16 kW
6SL3131-7TE21-6AA.
100 (3.94)
50 (1.97)
18 (0.71)
