Siemens SINAMICS S120 - Line Modules and Motor Modules with External Air Cooling

Accessories
11.1 Shield connecting plates for power supply and motor cables
Booksize Power Units
602 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.1.4.2
Line Modules and Motor Modules with external air cooling

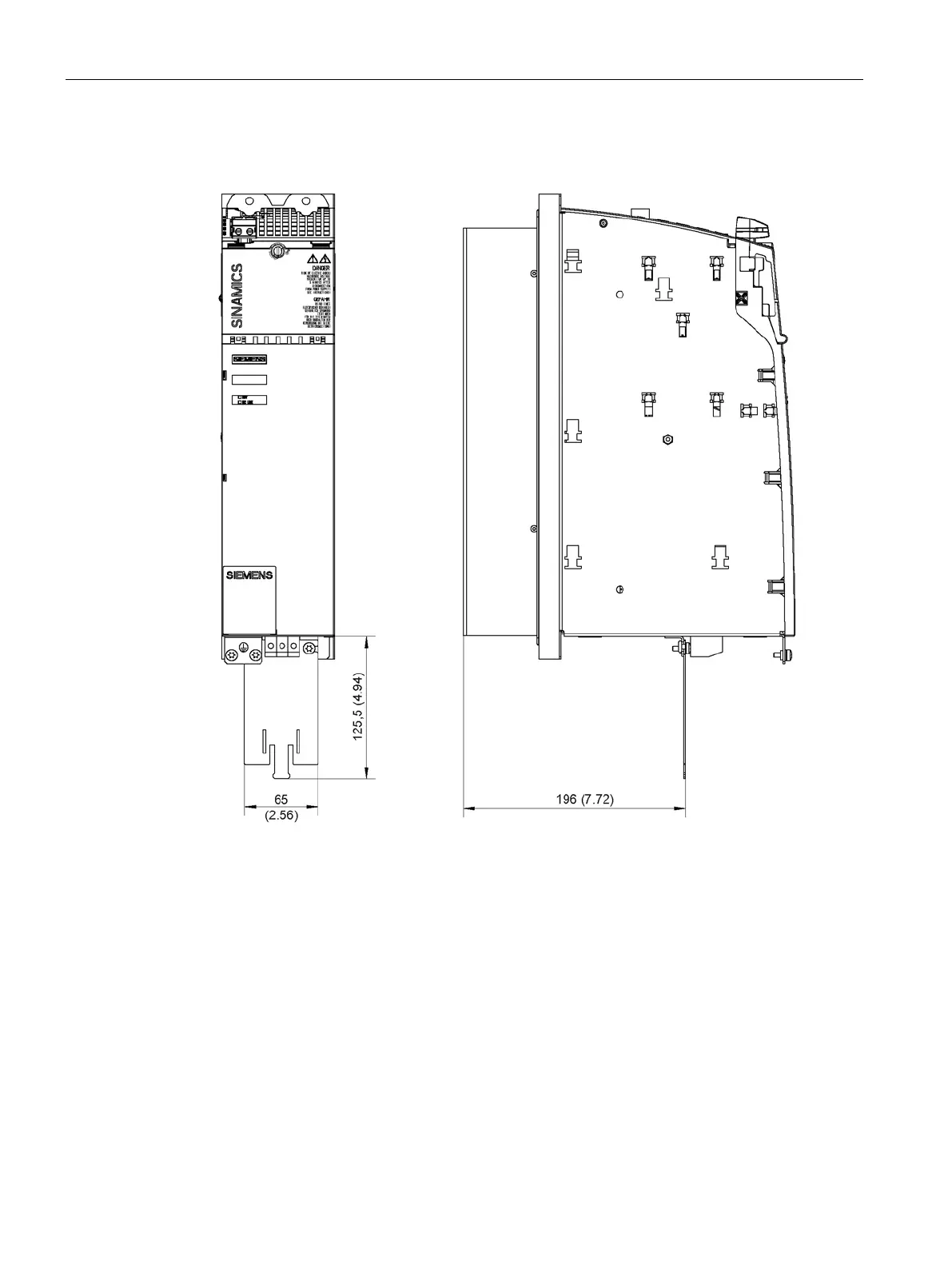

Figure 11-9 Dimension drawing of shield connecting plate on a 100 mm component with external air
cooling, all dimensions in mm and (inches)
