11.5 DC link adapter
Booksize Power Units
638 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.5
DC link adapter
11.5.1
Description
DC-link adapters are required if the drive line-up is to be subdivided between two or more
rows.
The 6SL3162-2BM01-0AA0 DC-link adapter can be mounted on all Line Modules and Motor
Modules in the Booksize format without reinforced DC-link busbars.
The 6SL3162-2BM10-0AA0 DC-link adapter can be mounted on 50 mm and 100 mm wide
Line Modules and Motor Modules in the Booksize format with reinforced DC-link busbars.
To connect the various sub line-ups, use shielded individual conductors that are
mechanically secured.

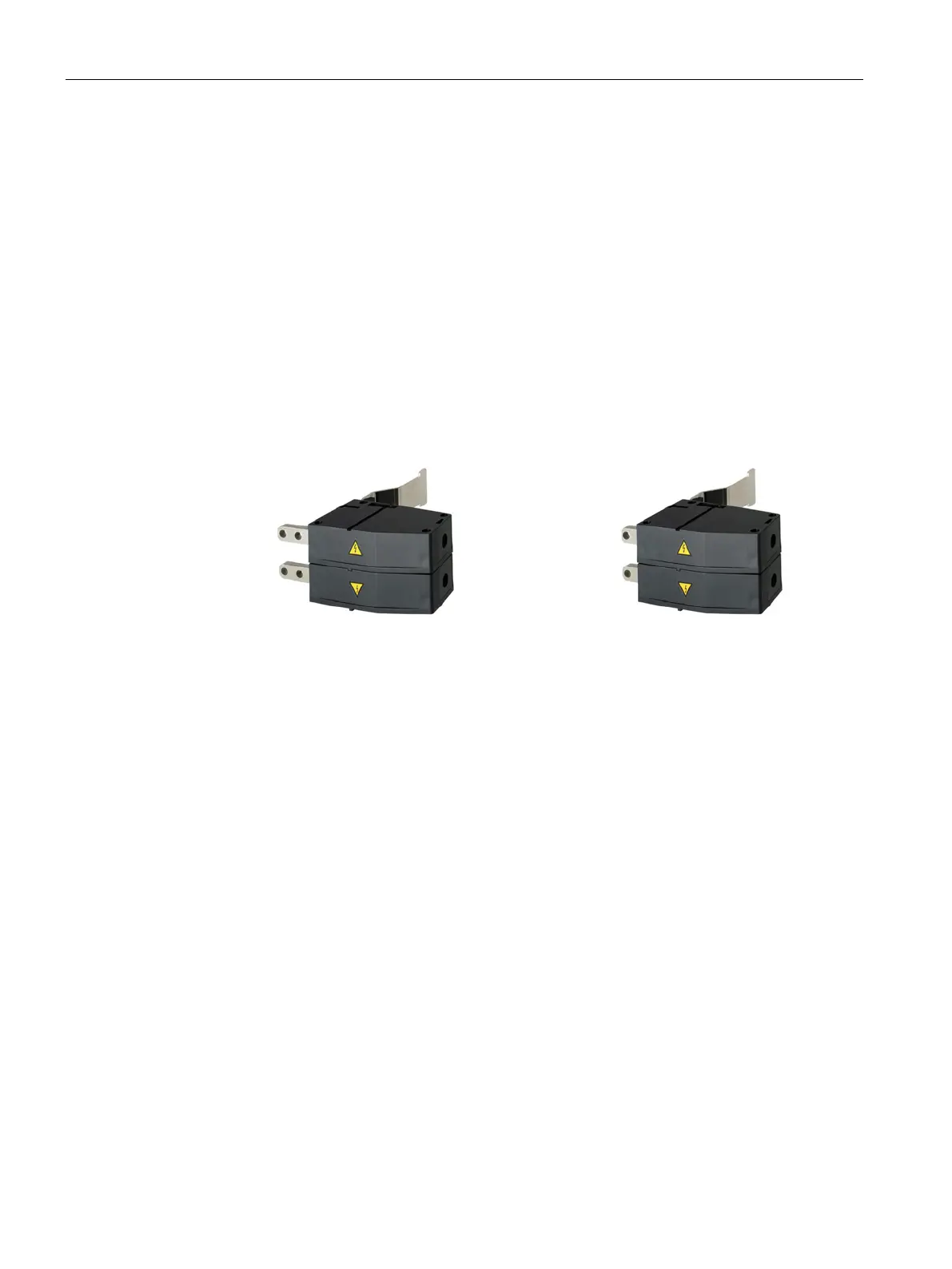

DC-link adapter
6SL3162-2BM01-0AA0
(4-hole adapter)
DC-link adapter
6SL3162-2BM10-0AA0
for installation using reinforced DC-link bus-
bars
(2-hole adapter)
