Siemens SINAMICS S120 - Technical Data

Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
75

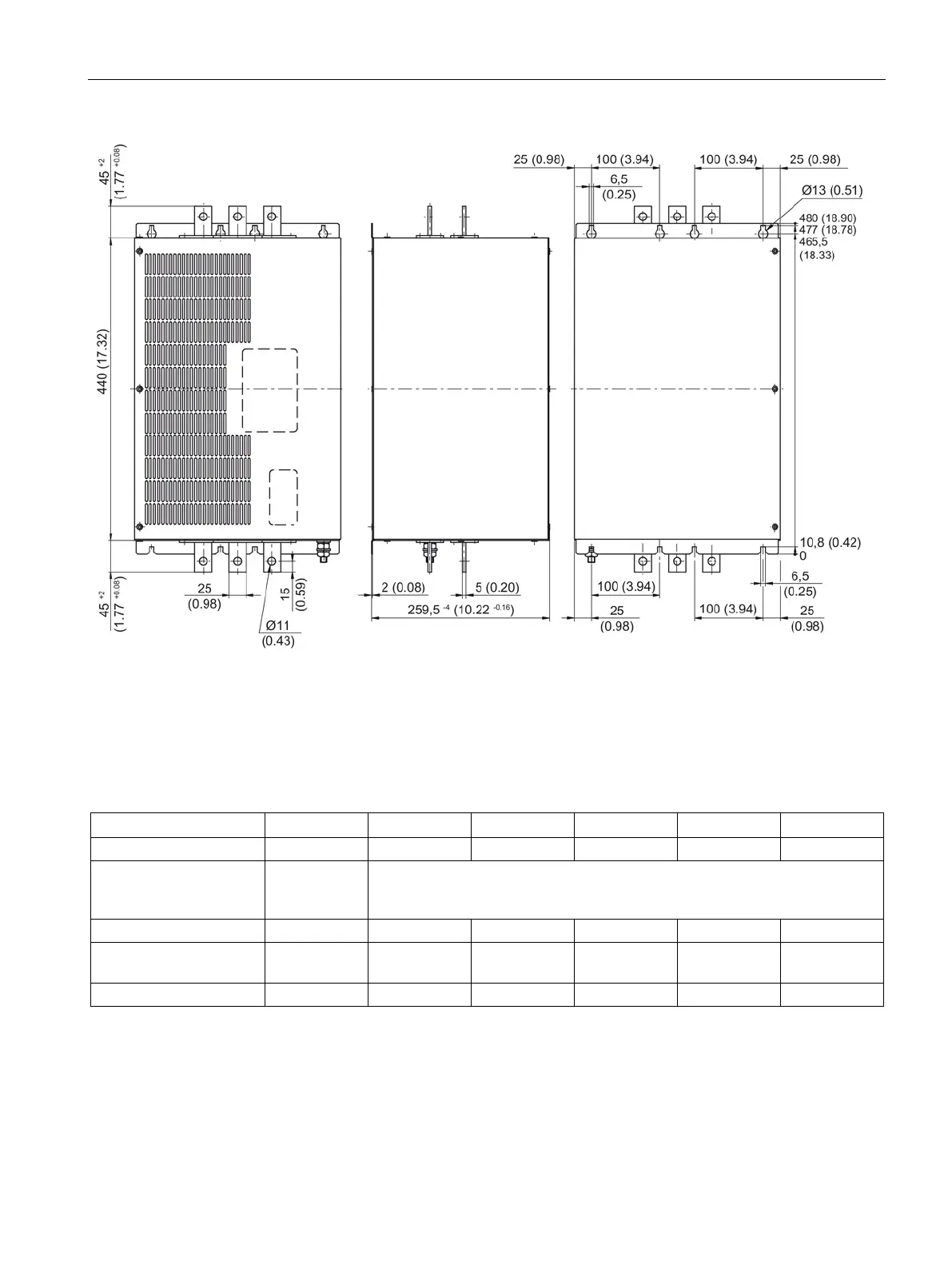

Figure 3-15 Dimension drawing of Wideband Line Filter 120 kW for Active Lines Modules, all dimensions in mm and
(inches)
3.7.4.4
Technical data
Table 3- 8 Technical data: Wideband Line Filter for Active Line Modules
6SL3000-
0BE21-6AA.
0BE23-6AA.
0BE25-5AA.
0BE28-0AA.
0BE31-2AA.
Rated power
kW
16
36
55
80
120
Supply voltages:
Line voltage
Line frequency
V
AC
Hz
3 AC 380 -10 % (-15 % < 1 min) … 3 AC 480 +10 %
47 … 63 Hz
Rated current
A
AC
30
67
103
150
225
Power loss (see power
loss tables (Page 756))
W 70 90 110 150 200
Weight
kg
8.5
14.5
15.5
26
34.5
