11.4 DC link rectifier adapter for Booksize format
Booksize Power Units
626 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.4
DC link rectifier adapter for Booksize format
11.4.1
Description
The DC link rectifier adapter supplies the DC link voltage directly. It is best used for
supplying an individual component. With a direct supply, each component is connected to
the DC link separately. The internal DC link busbar is not used here.
If the DC link rectifier adapter is to be used for supplying several components, it is important
to remember that it can only be installed on the component on the far right. The choice of
connection cable diameter should be based on the required summation current for all the
connected components.
The connection cables must be fused accordingly.
Mounting on components with reinforced DC link busbars is
not
possible.
Note
When a DC link rectifier adapter and DC busbars are used, the limit values for radio
interference suppression under Category C2 according to EN 61800
-3 can no longer be
observed.
Table 11- 14 Available DC link rectifier adapters
Article No.
Screw terminals
Used for Line/Motor Modules with these sizes
6SL3162-2BD00-0AA0
0.5 … 10 mm²
50 mm, 100 mm
6SL3162-2BM00-0AA0
35 … 95 mm²
150 mm, 200 mm, 300 mm

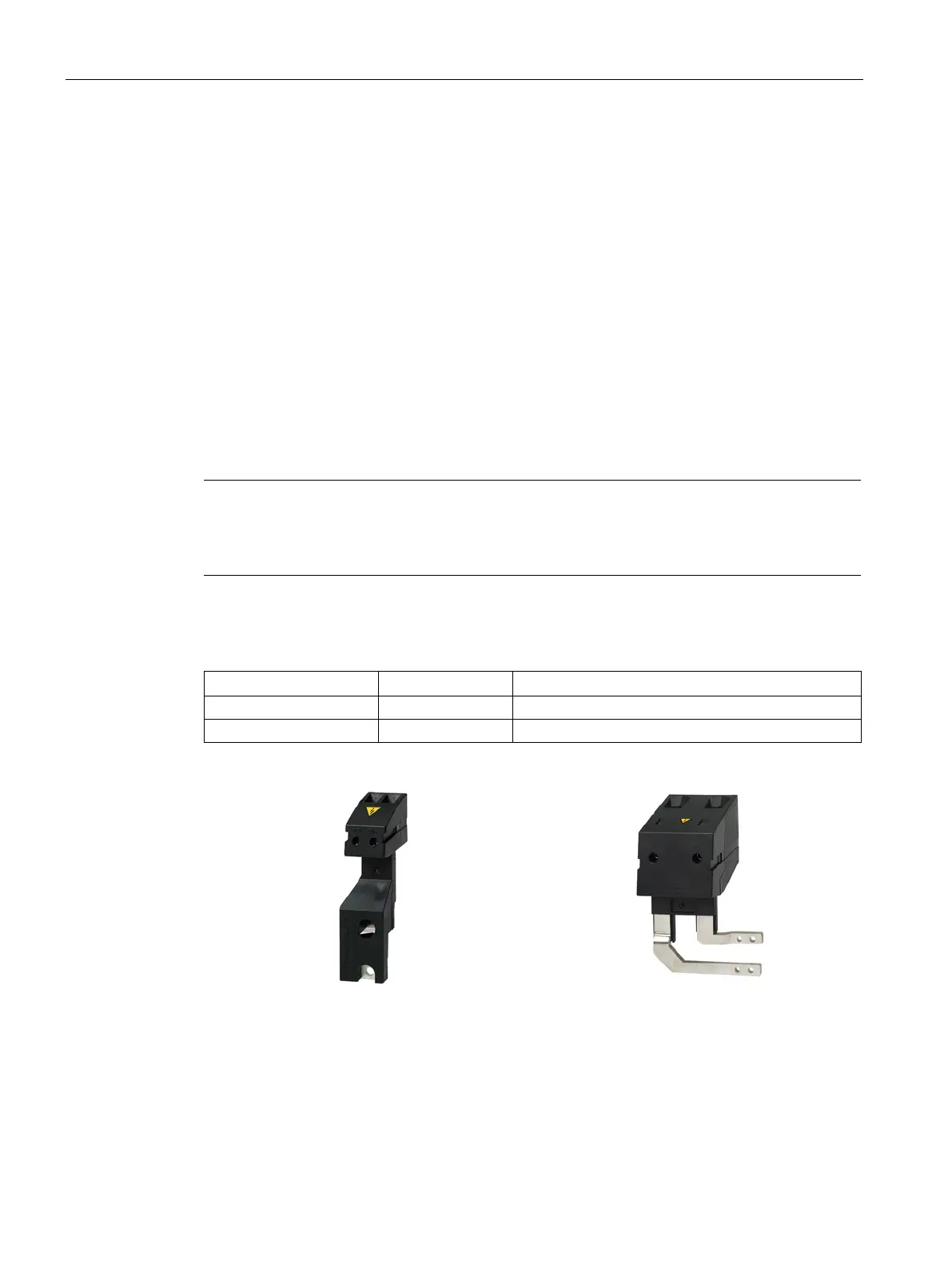

DC link rectifier adapter
6SL3162-2BD00-0AA0
DC link rectifier adapter
6SL3162-2BM00-0AA0
