11.5.6
Electrical connection
11.5.6.1
Preparing the cables
1. Prepare the DC link connecting cables as shown below.
2. Only use shielded cables with insulated end sleeves.
①
Protective braided shield folded back and fixed using shrink-on sleeve
②
Insulated end sleeve

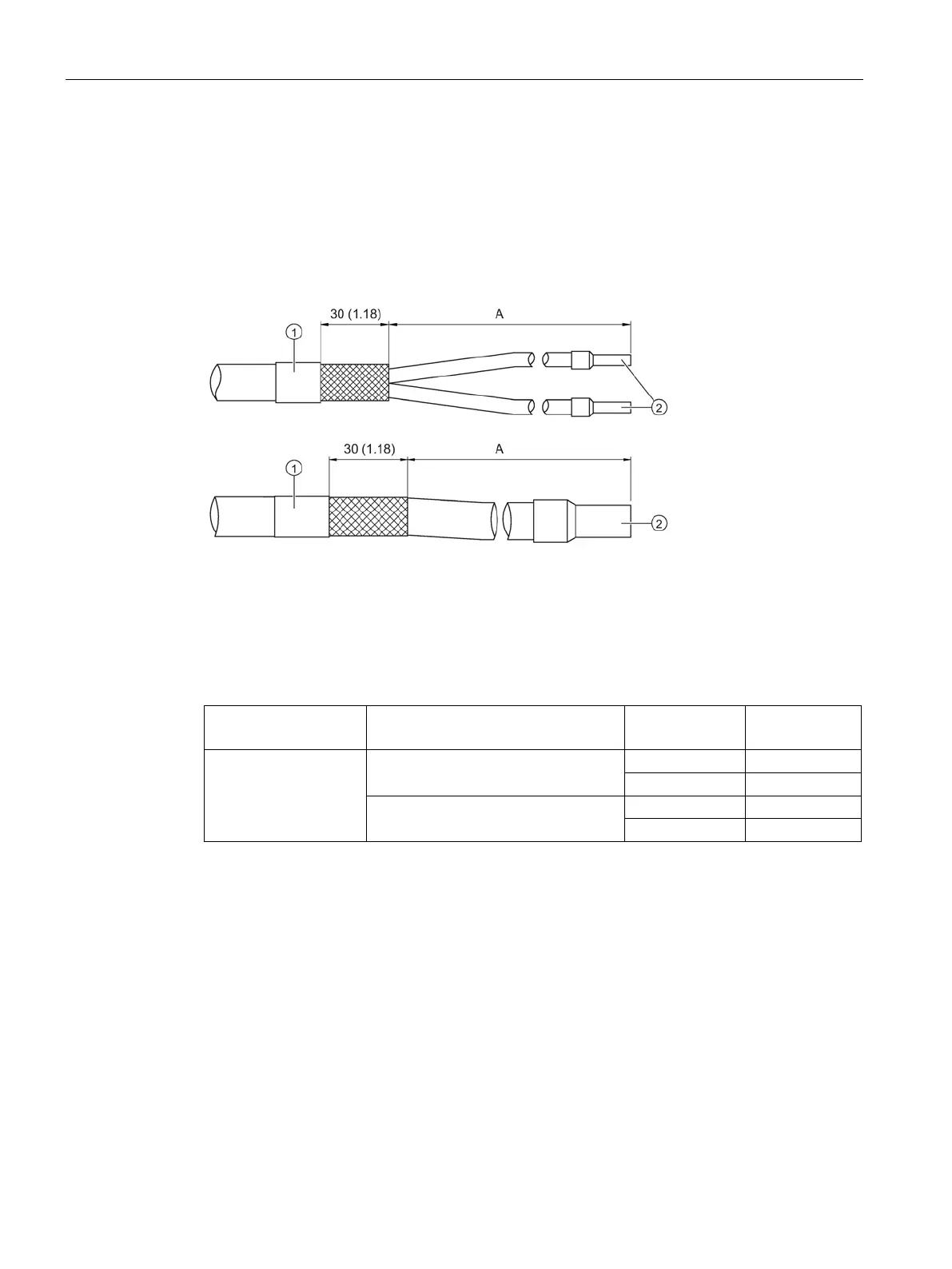

Figure 11-29 Single-core and two-core DC link connecting cable with insulated end sleeves, all
dimensions in mm and (inch)
Refer to the table below for dimension A:
Conductor cross-
section [mm
2
]
Mounting location of the DC link
adapter at the drive line-up
Connection
A [mm]
50 / 70 / 95 Left
DCP
70
DCN
60
Right DCP 60
DCN
70
