12.4.3
Single-tier drive line-up
Due to the current carrying capacity of the DC-link busbars and their function in particular,
the components should be arranged according to the following rule. From left to right:
● Line Module
● Motor Modules in order of power from the highest power to the lowest power
● DC link components, e.g. Braking Module, Control Supply Module, Capacitor Module

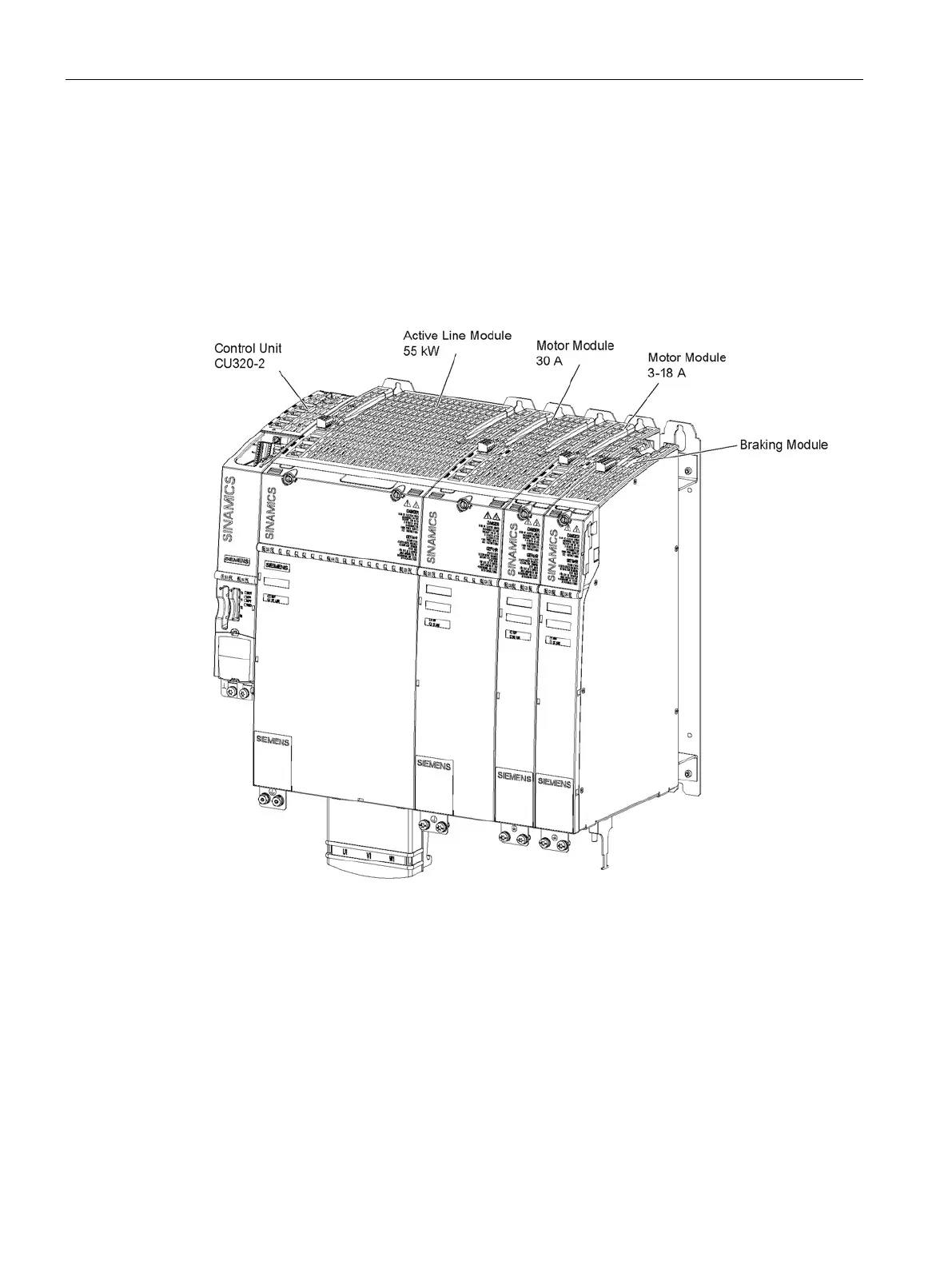

Figure 12-4 Example of a single drive line-up with internal air cooling
