Siemens SINAMICS S120 - Operating Line Connection Components on the Line Supply

Line connection and line-side power components
3.11 Line connection variants
Booksize Power Units
138 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
3.11.2
Operating line connection components on the line supply
The SINAMICS S Booksize converter system is rated for direct operation on TN, TT, and IT
line supply systems with a rated voltage of 380 V 3 AC to 480 V 3 AC.

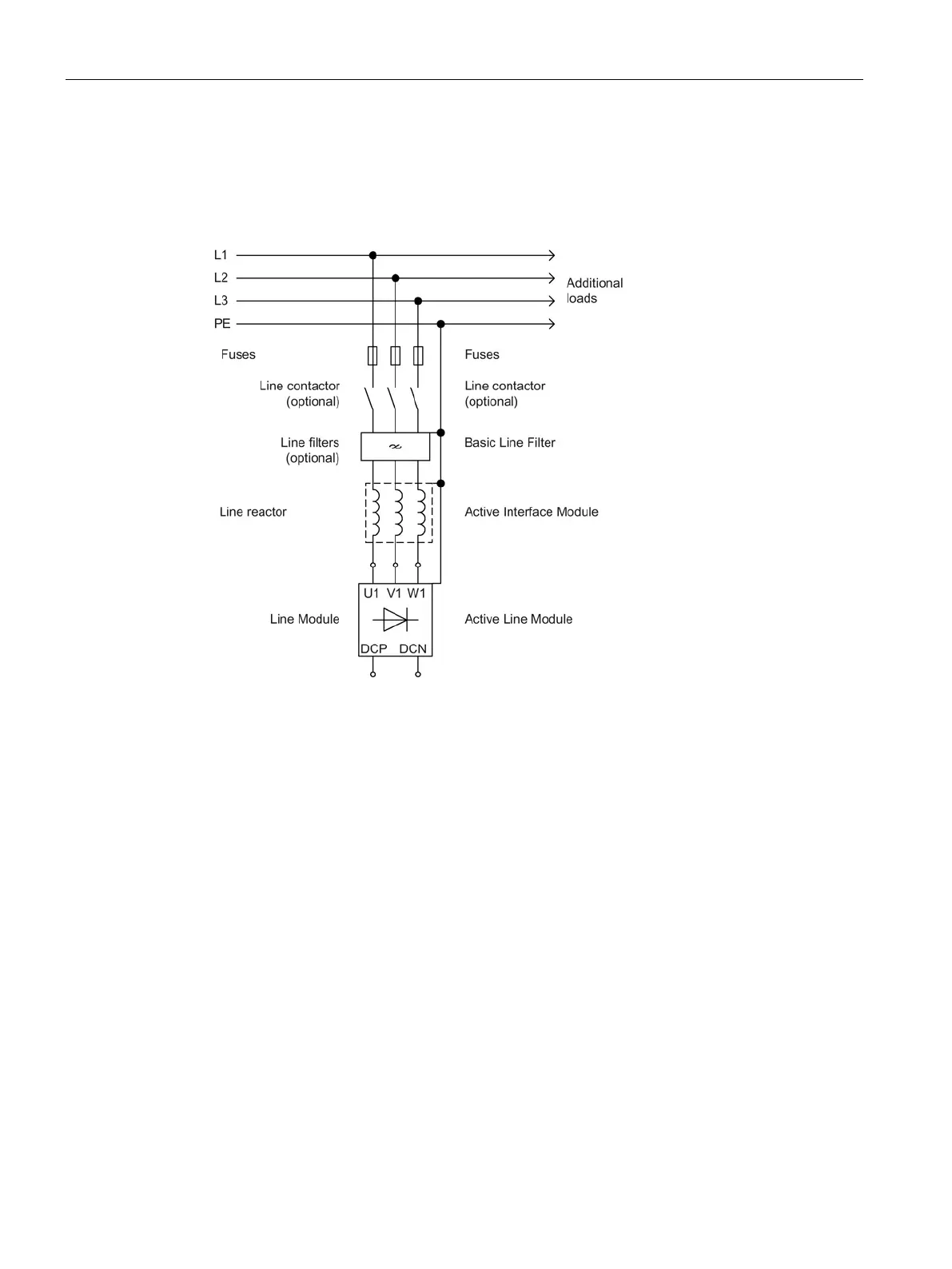

Figure 3-63 Direct operation on the line supply
