4.3 Active Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
155
4.3.2
Interface description
4.3.2.1
Overview

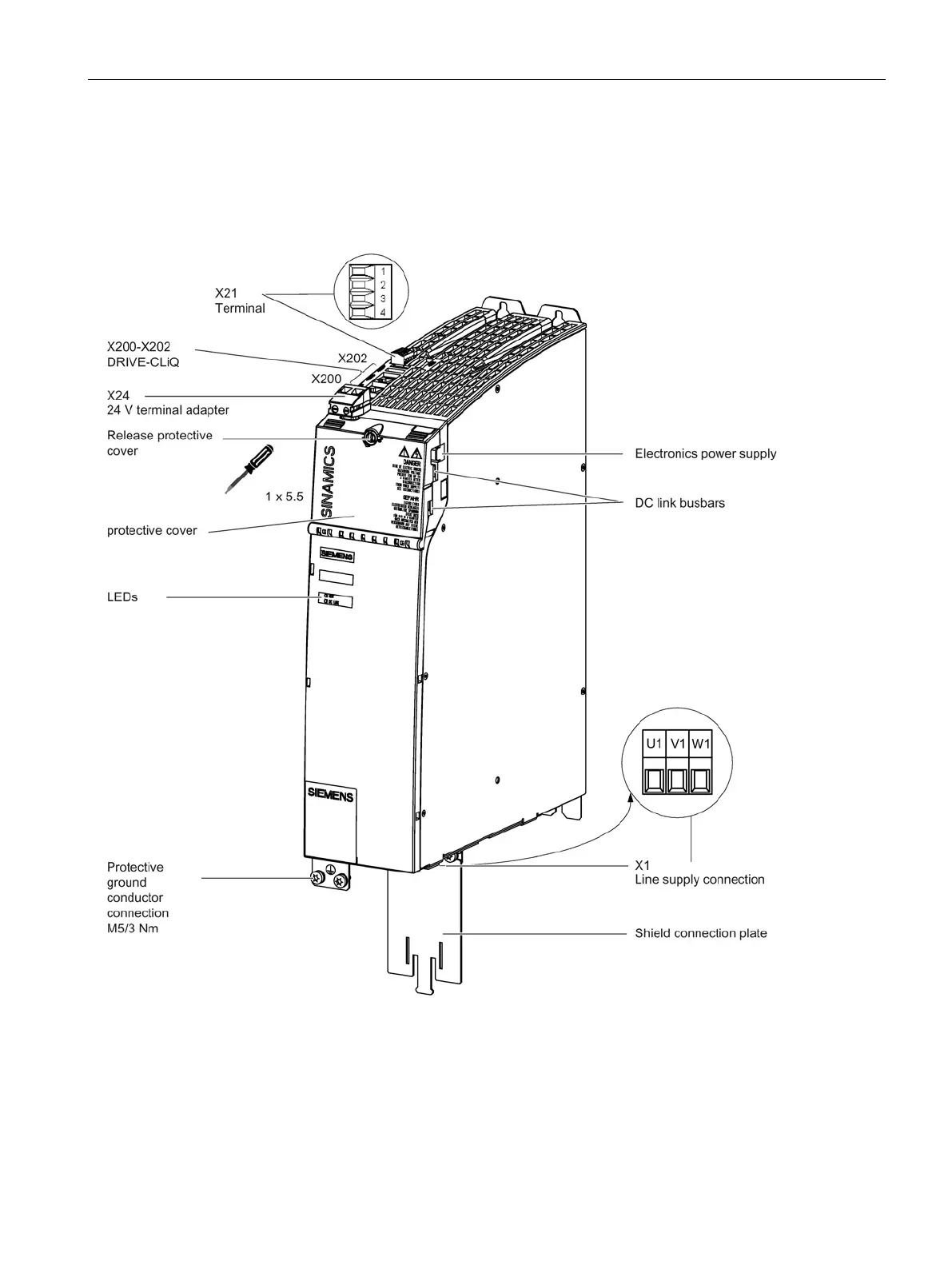

Figure 4-1 Interface overview, Active Line Module with internal air cooling (example: 16 kW)
