7.6 Dimension drawings
Booksize Power Units
472 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
7.6
Dimension drawings

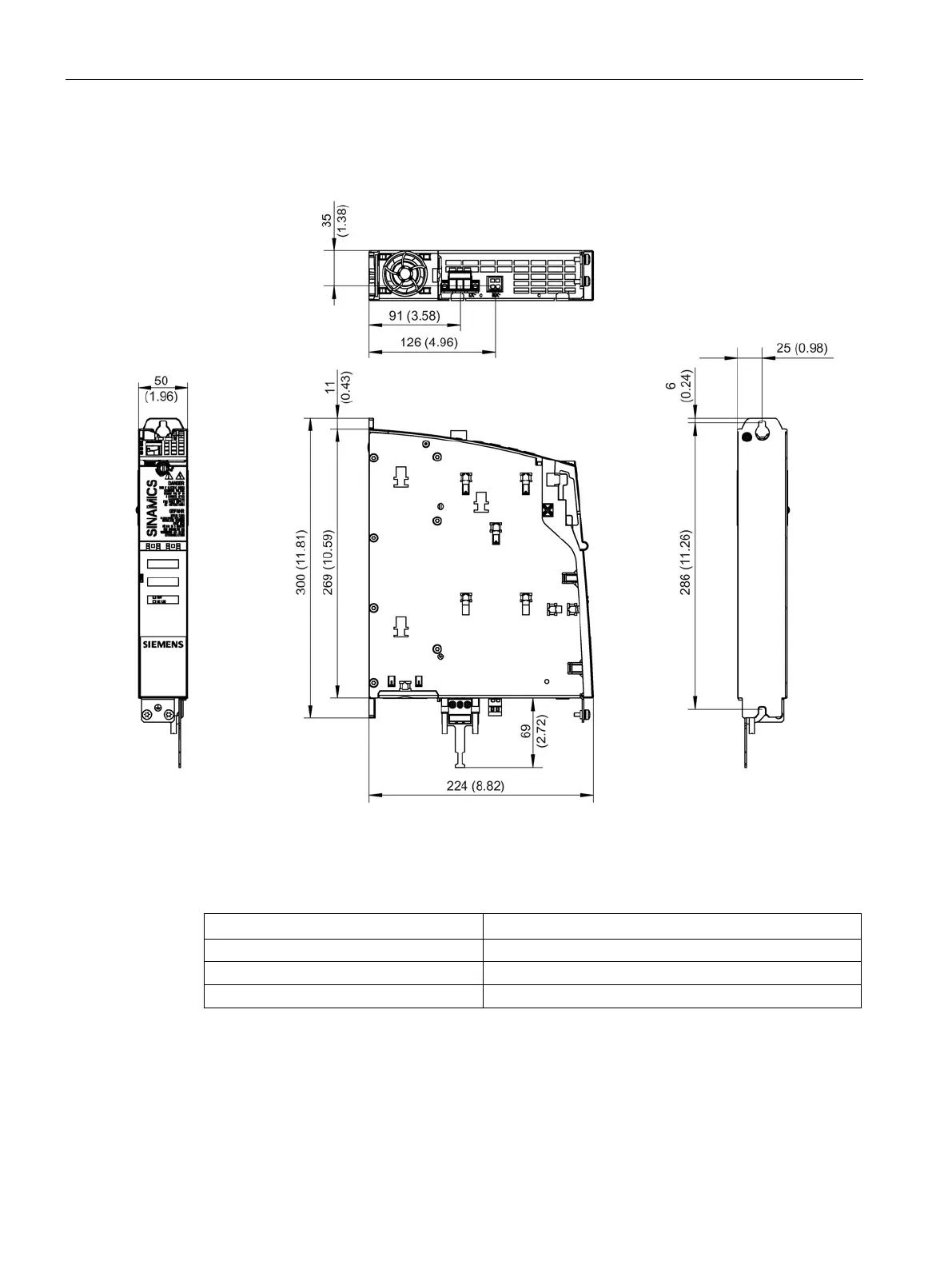

Figure 7-4 Dimension drawing of 3 A, 5 A, and 9 A Motor Modules Booksize Compact, all dimensions in mm and
(inches); example: 5 A Single Motor Module
Table 7- 6 Motor Modules Booksize Compact 3 A, 5 A, and 9 A
Motor Module
Article No.
Single Motor Module 3 A
6SL3420-1TE13-0AA.
Single Motor Module 5 A 6SL3420-1TE15-0AA.
Single Motor Module 9 A
6SL3420-1TE21-0AA.
