Line Modules Booksize
4.8 Basic Line Modules with cold plate
Booksize Power Units
260 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Characteristics

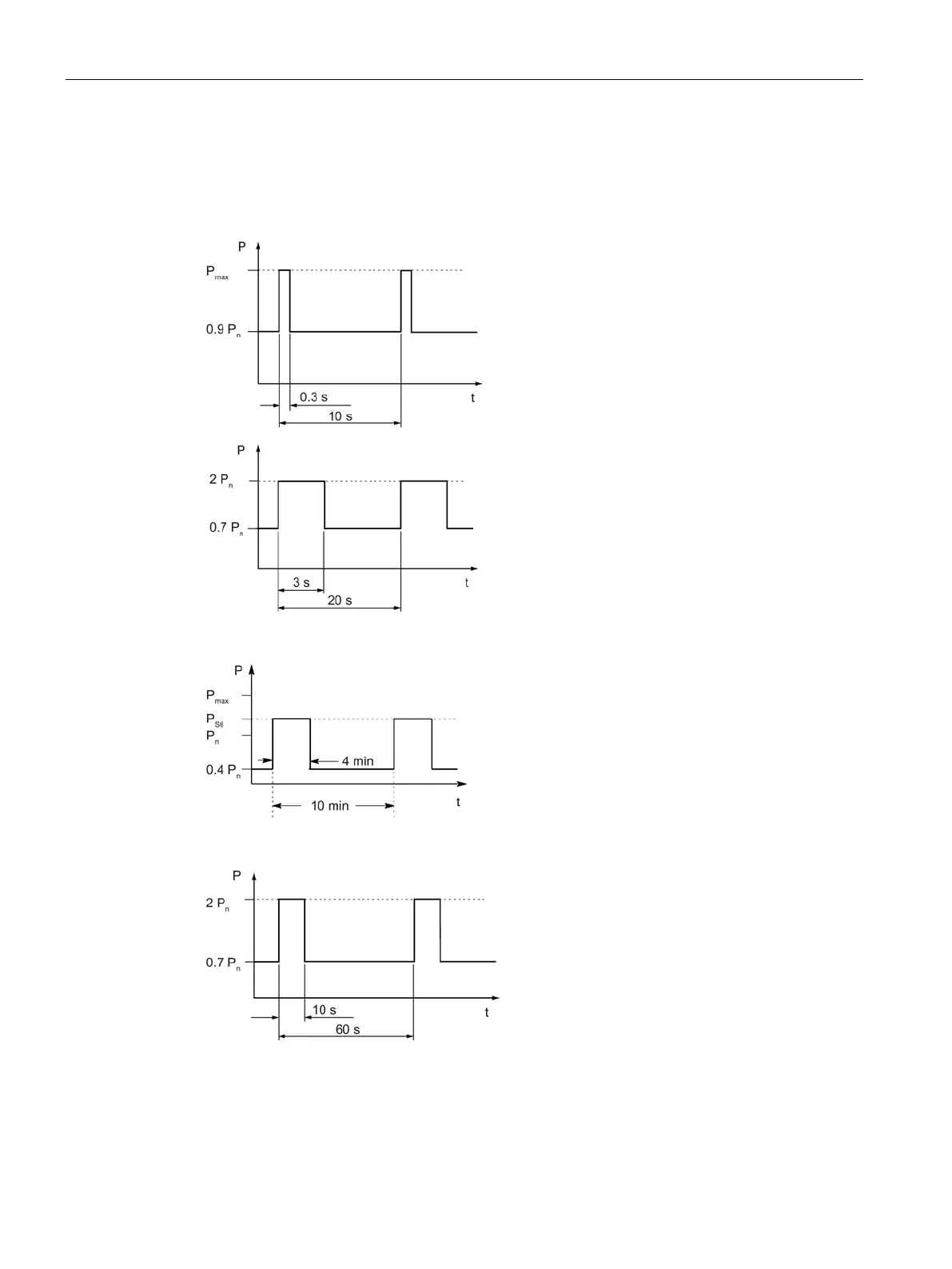

Rated duty cycles for Basic Line Modules
Figure 4-59 Duty cycles with initial load
Figure 4-60 S6 duty cycle with pre-load condition
Figure 4-61 Duty cycle with pre-load condition for 20 kW and 40 kW Basic Line Modules
