Siemens SINAMICS S120 - X200-X202 DRIVE-Cliq Interfaces

Line Modules Booksize
4.6 Active Line Modules Liquid Cooled
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
215
4.6.2.5
X200-X202 DRIVE-CLiQ interfaces

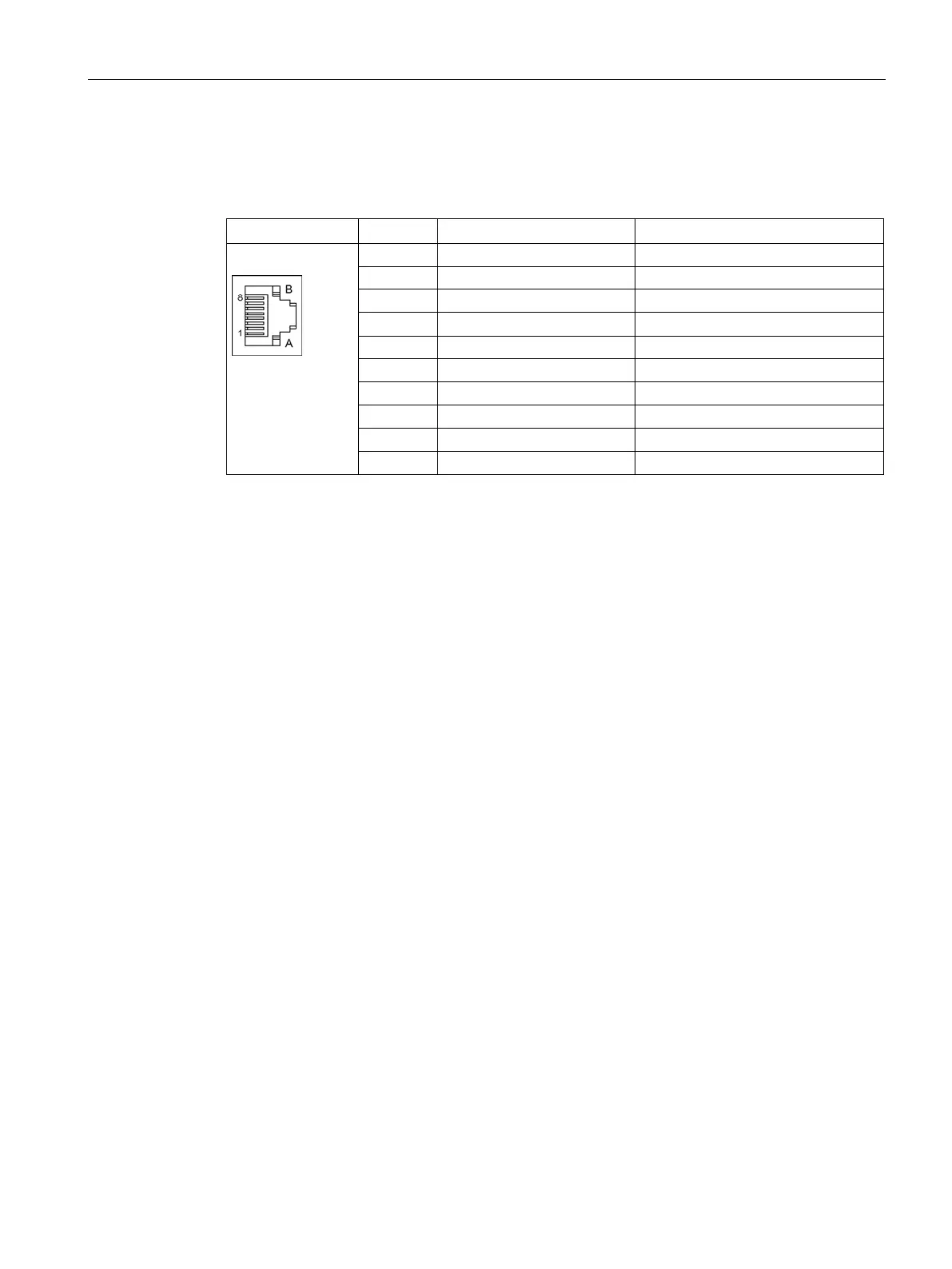

Table 4- 37 X200-X202: DRIVE-CLiQ interfaces
PIN
Signal name
Technical data
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4 Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+(24 V)
24 V power supply
B
M (0 V)
Electronics ground
The blanking
covers for the DRIVE-CLiQ interfaces are included in the scope of delivery.
Blanking cover (50 pcs.) Article number: 6SL3066-4CA00-0AA0
