Siemens SINAMICS S120 - Setup Example, Drive Line-Up, Cold Plate with External Air Heat Sink

Cabinet design and EMC Booksize
12.10 Information on cold plate cooling
Booksize Power Units
742 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
12.10.2.2
Setup example, drive line-up, cold plate with external air heat sink
①
Control cabinet
②
External fan
③
Internal fan

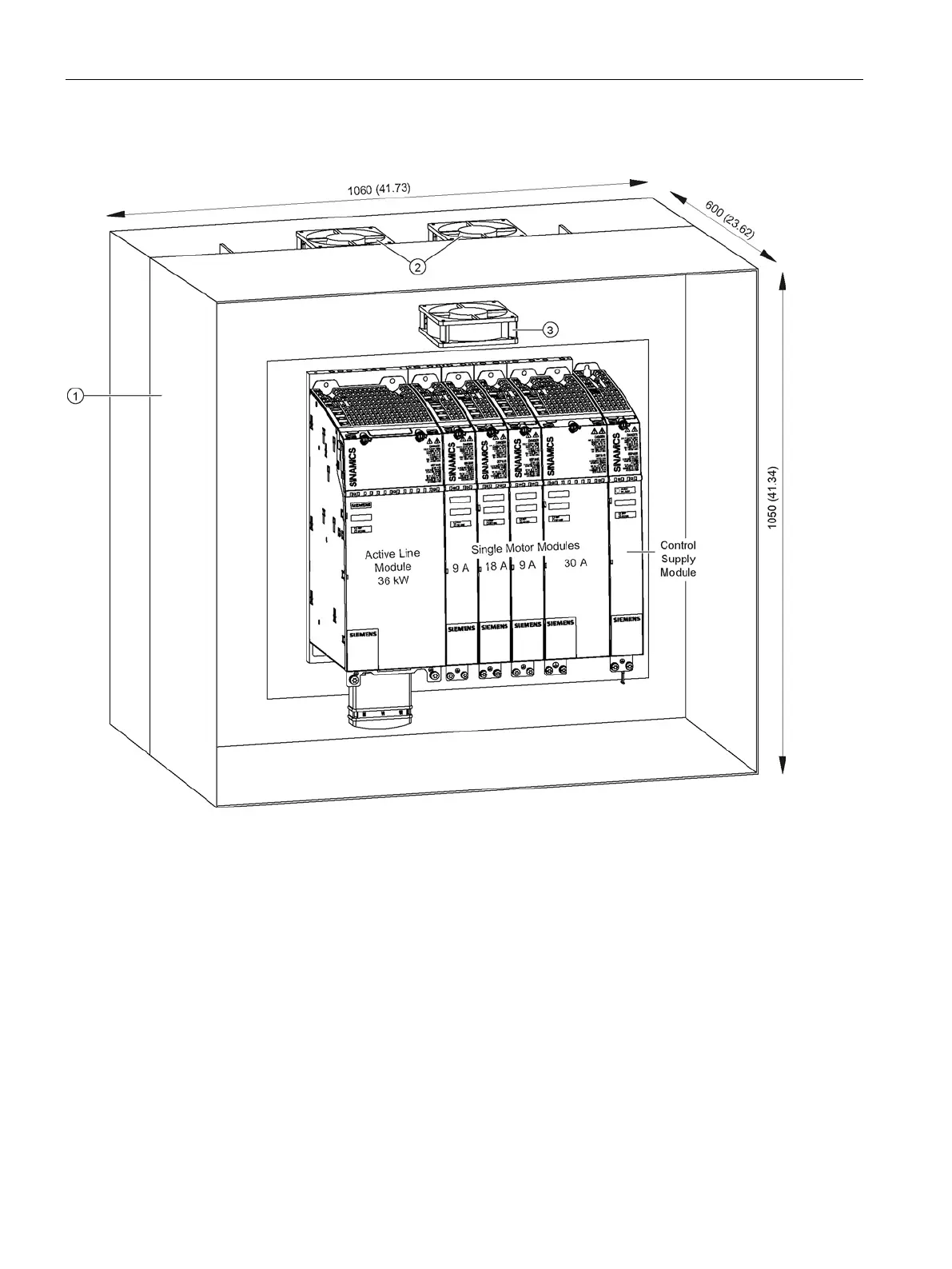

Figure 12-39 Front view of a control cabinet with drive line-up, cold plate and external air heat sink
Setup:
● Infeed: Active Line Module 36 kW
● 4 Single Motor Modules
● Control Supply Module for 24 V supply
● Internal fan at the top of the control cabinet
● One shared external air heat sink
