Motor-side power components
10.2 Voltage Protection Module VPM
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
583
The Voltage Protection Module is installed in the control cabinet close to the drive.
Note
Connecting motor reactors
Motor reactors may only be connected between the Voltage Protection Module and motor.

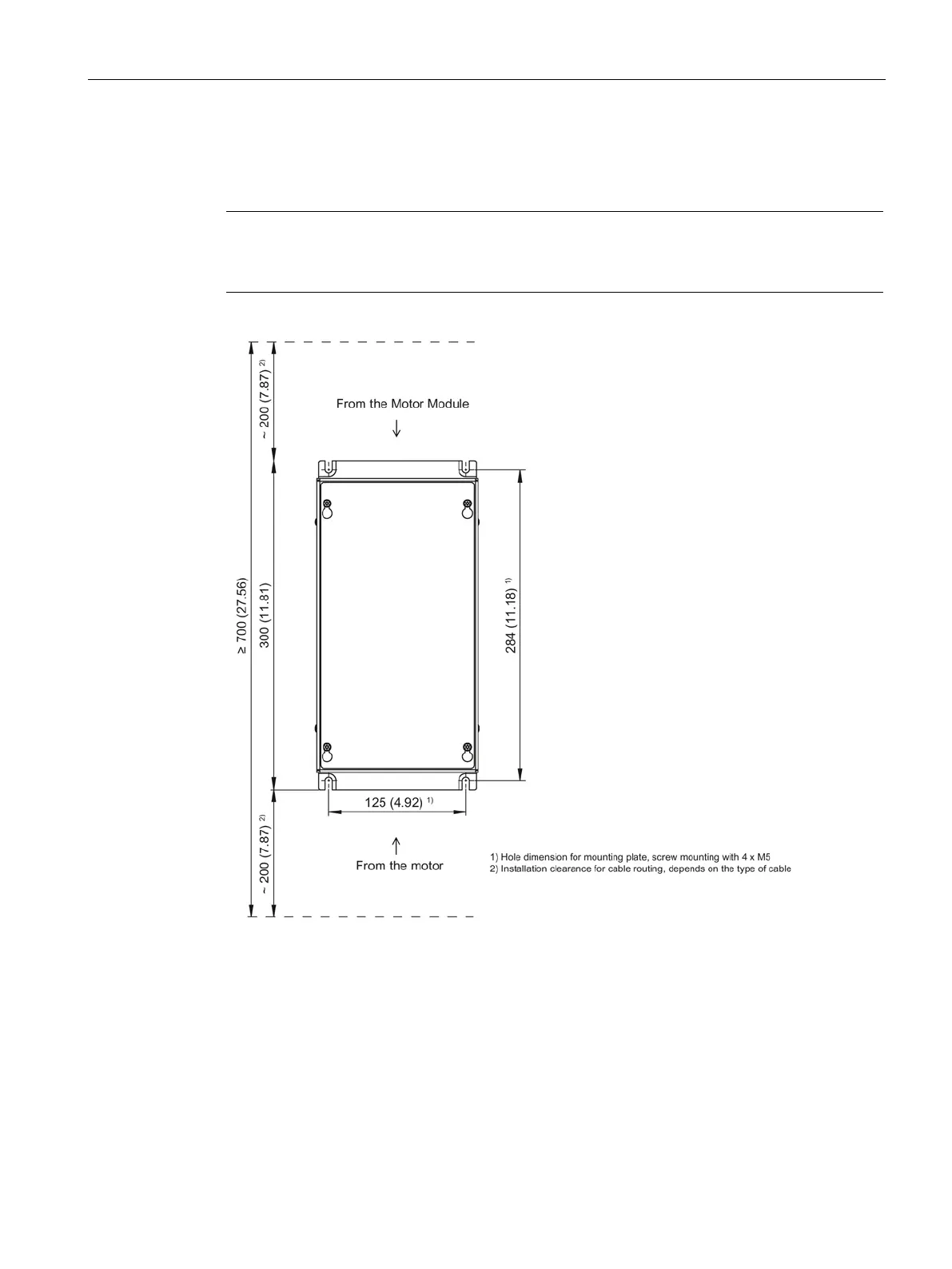

Figure 10-13 Mounting dimension for a Voltage Protection Module VPM120
