Siemens SINAMICS S120 - Technical Specifications

Line connection and line-side power components
3.7 Line filters
Booksize Power Units
80 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

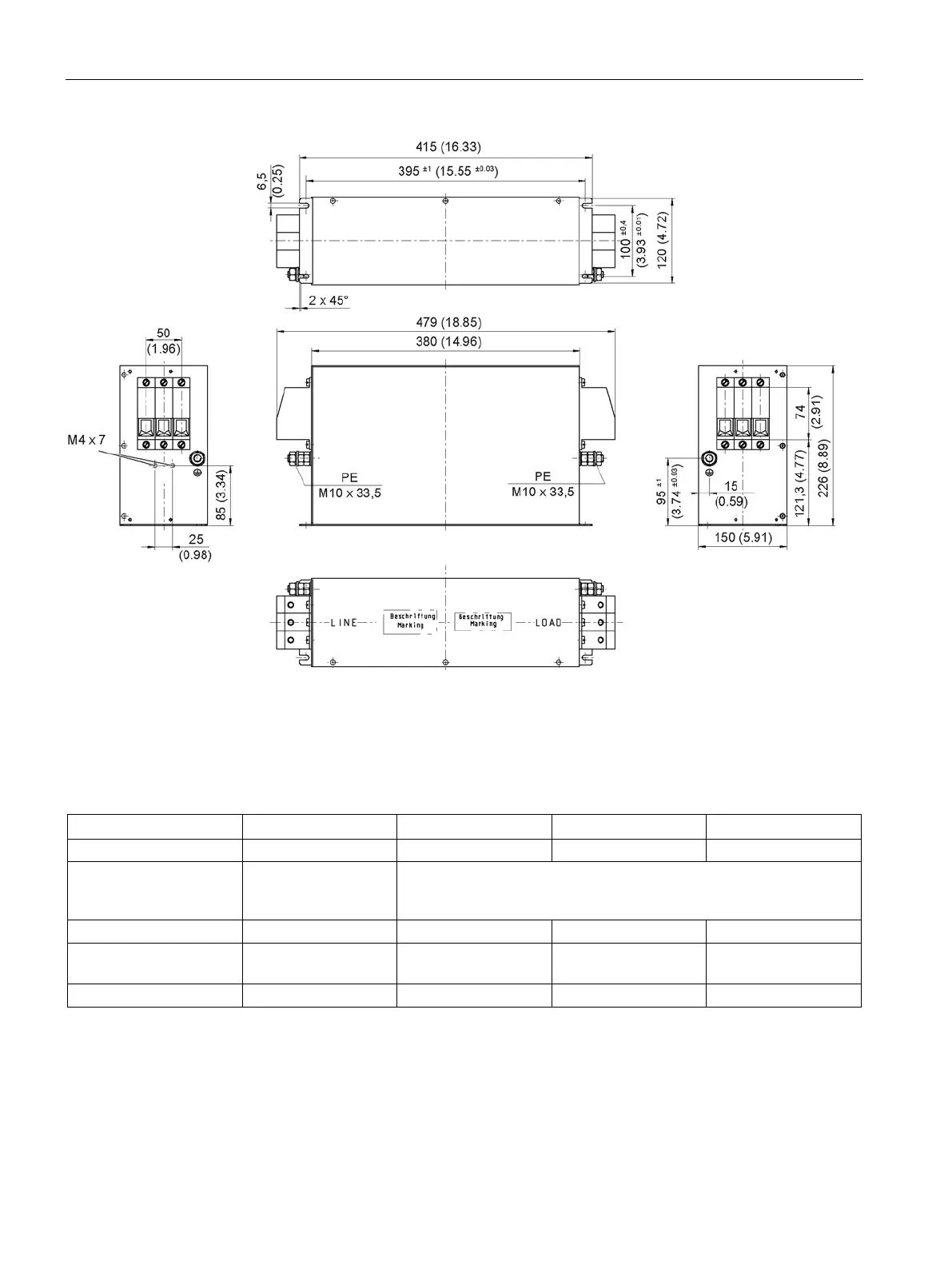

Figure 3-19 Dimension drawing of Basic Line Filter for Basic Line Modules 100 kW, all data in mm and (inches)
3.7.5.4
Technical specifications
Table 3- 10 Technical data for Basic Line Filter for Basic Line Modules
6SL3000-
0BE21-6DA.
0BE23-6DA1
0BE31-2DA.
Rated power kW 20 40 100
Supply voltage:
Line voltage
Line frequency
V
AC
Hz
3 AC 380 -10 % (-15 % < 1 min) … 3 AC 480 +10 %
47 … 63 Hz
Rated current
A
AC
36
74
192
Power loss (see power
loss tables (Page 756))
W 16 26 43
Weight
kg
5
7.5
18.5
