Siemens SINAMICS S120

Accessories
11.1 Shield connecting plates for power supply and motor cables
Booksize Power Units
614 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.1.5
Installation
Example 1: 100 mm wide components with internal air cooling
Tools required:
● Torx screwdriver T25 for shield connecting plate

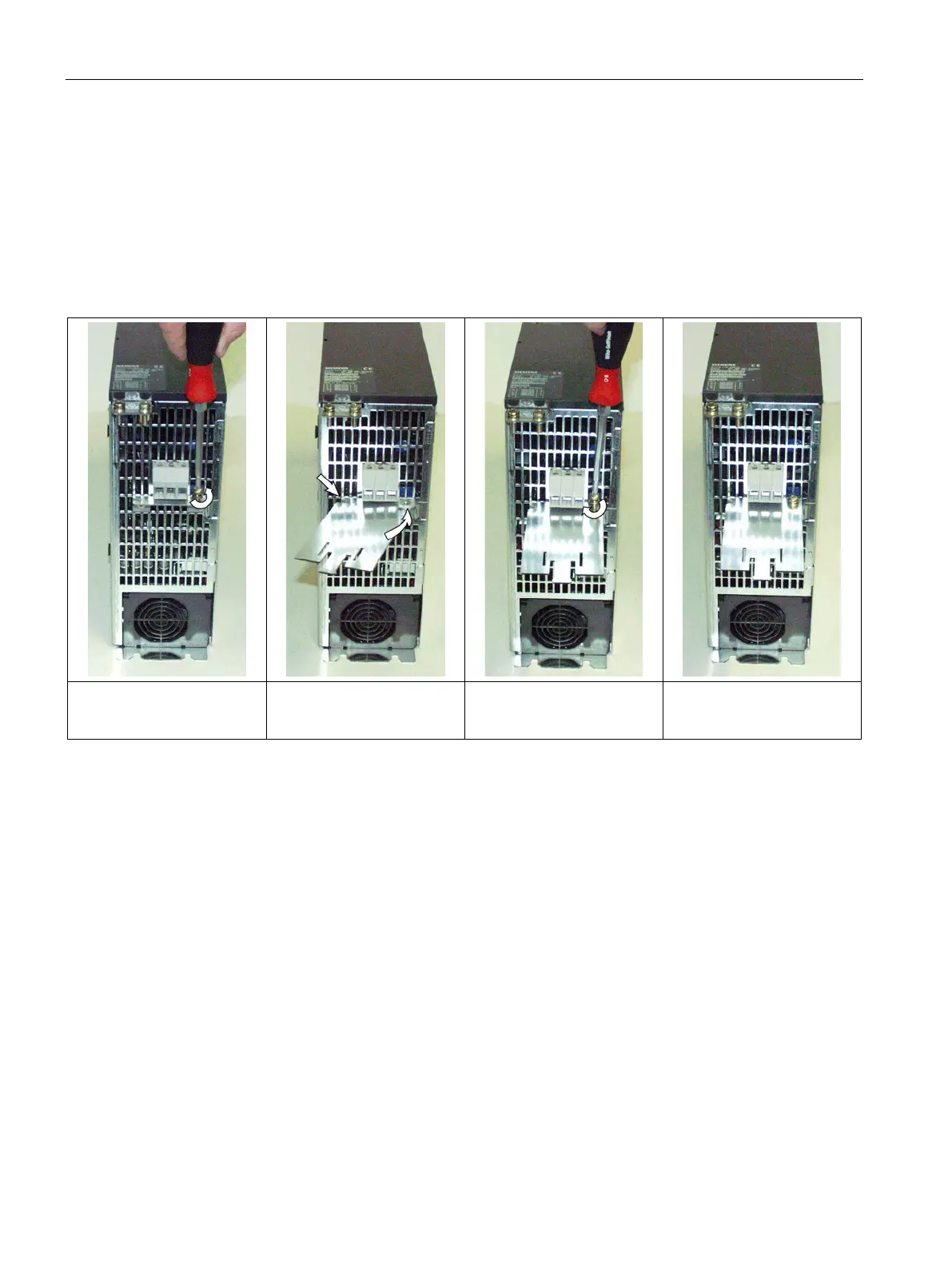

Table 11- 5 Installing the shield connecting plate to a 100 mm wide component using as an example, internal air cooling
1. Remove the screw. 2. Engage the shield con-
necting plate.
3. Tighten the shield con-
necting plate.
Tightening torque: 3 Nm
Result: Installed shield con-
necting plate
