Line Modules Booksize
4.9 Smart Line Modules with internal air cooling
Booksize Power Units
274 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
4.9.5
Connection examples

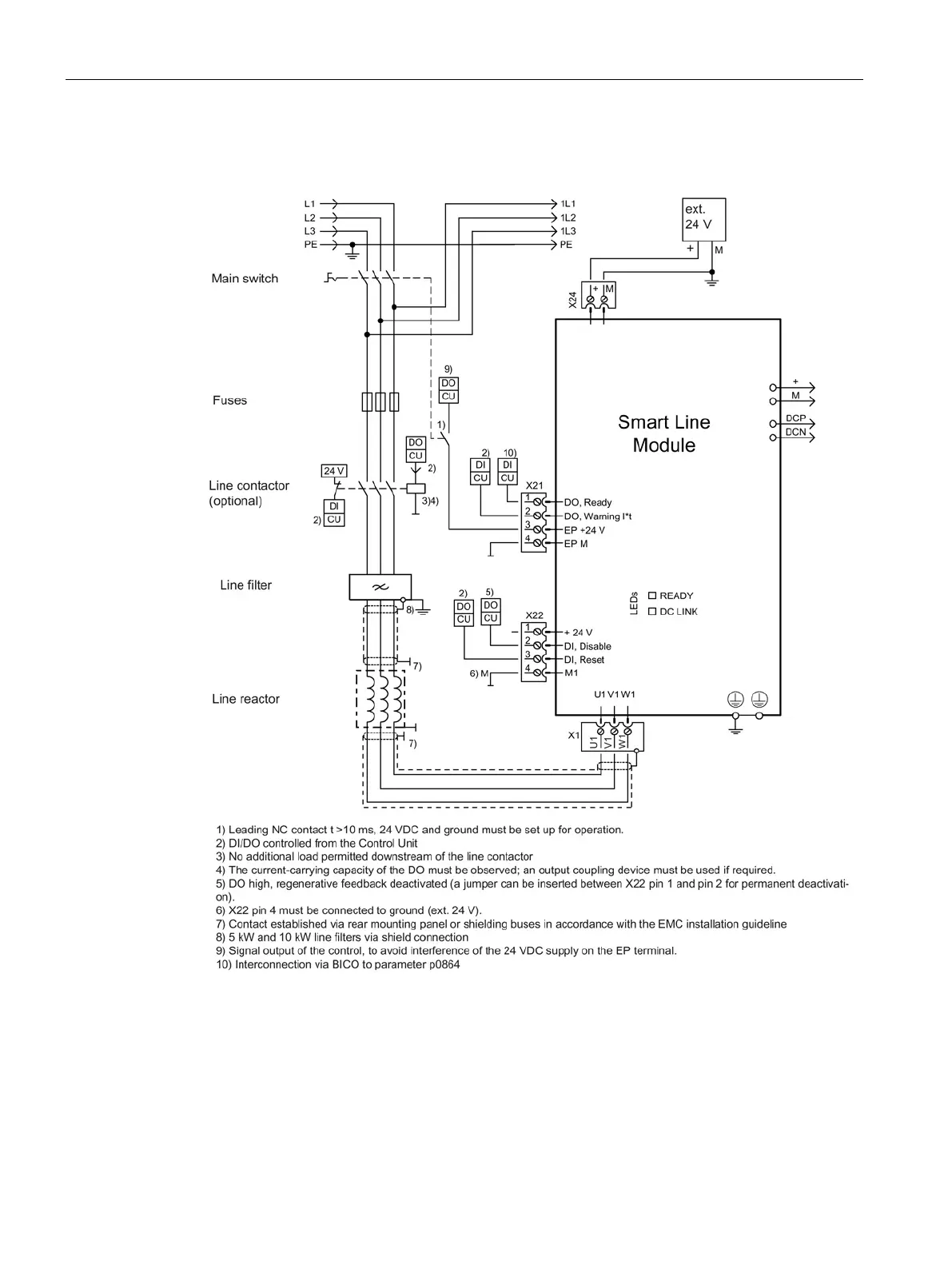

Figure 4-66 Connection example for 5 kW and 10 kW Smart Line Modules
