Siemens SINAMICS S120 - Interface Description; Overview

Accessories
11.6 DRIVE-CLiQ cabinet bushings
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
653
11.6.2
Interface description
11.6.2.1
Overview

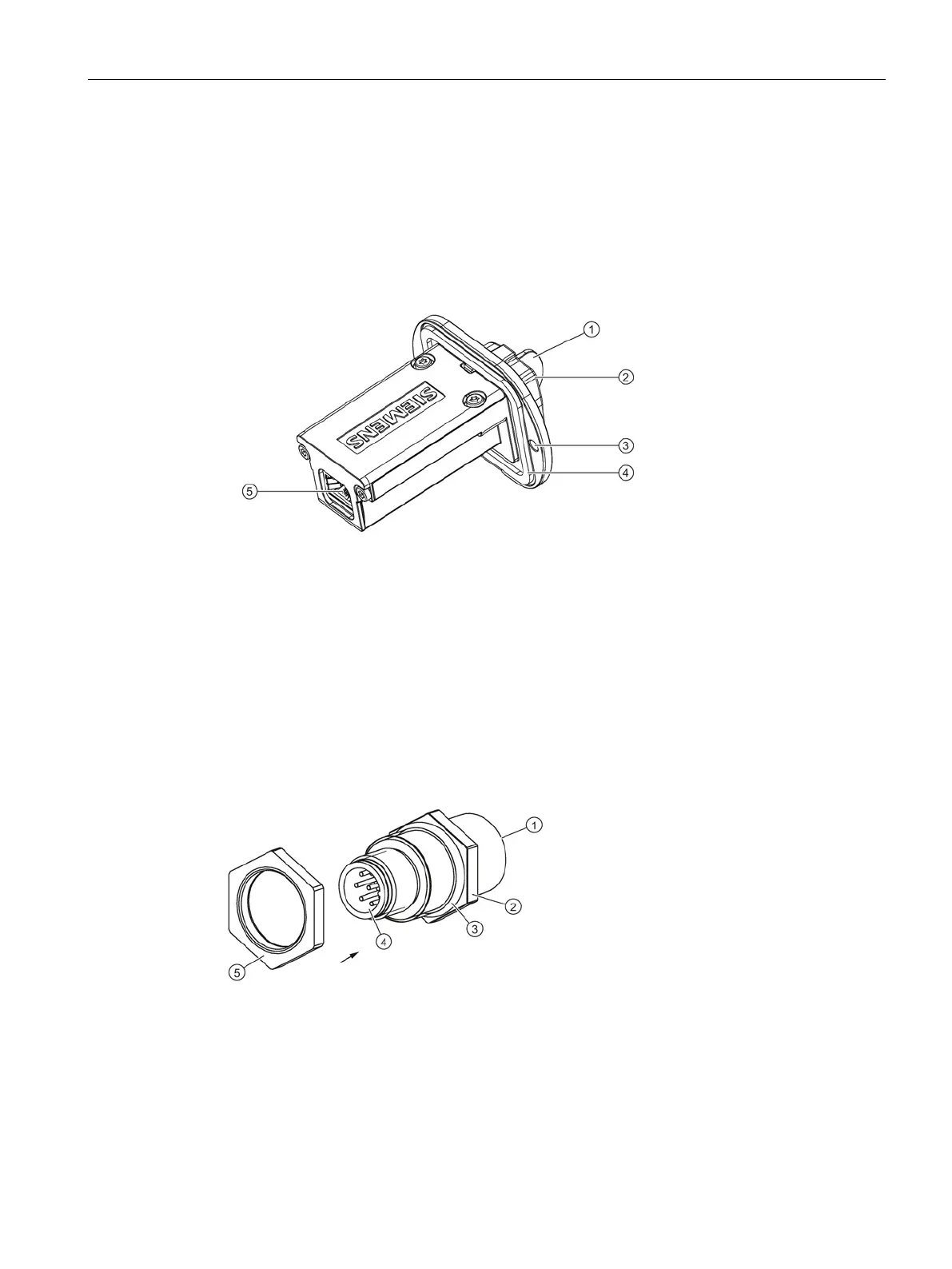

DRIVE-CLiQ cabinet bushing for DRIVE-CLiQ cables with DRIVE-CLiQ connectors
①
Protective cap, Yamaichi, Article No.: Y-ConAS-24-S
②
DRIVE-CLiQ interface on the outside (to connect DRIVE-CLiQ signal cables MOTION-
CONNECT with IP67 degree of protection)
③
Mounting holes
④
Flange-type seal to ensure degree of protection IP54 on the outside of the cabinet
⑤
DRIVE-CLiQ interface on the inside (to connect DRIVE-CLiQ signal cables MOTION-
CONNECT with IP20 degree of protection)
Figure 11-31 Interface overview, DRIVE-CLiQ cabinet bushing
DRIVE-CLiQ cabinet bushing for DRIVE-CLiQ cables with M12 plug/socket
①
DRIVE-CLiQ interface with M12 socket (8-pin)
②
Flange, SW18
③
Seal
④
DRIVE-CLiQ interface with M12 plug (8-pin)
⑤
O ring, SW20, tightening torque: 3-4 Nm
Figure 11-32 Interface overview, DRIVE-CLiQ cabinet bushing M12
