Line Modules Booksize
4.5 Active Line Modules with cold plate
Booksize Power Units
196 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
4.5.2
Interface description
4.5.2.1
Overview

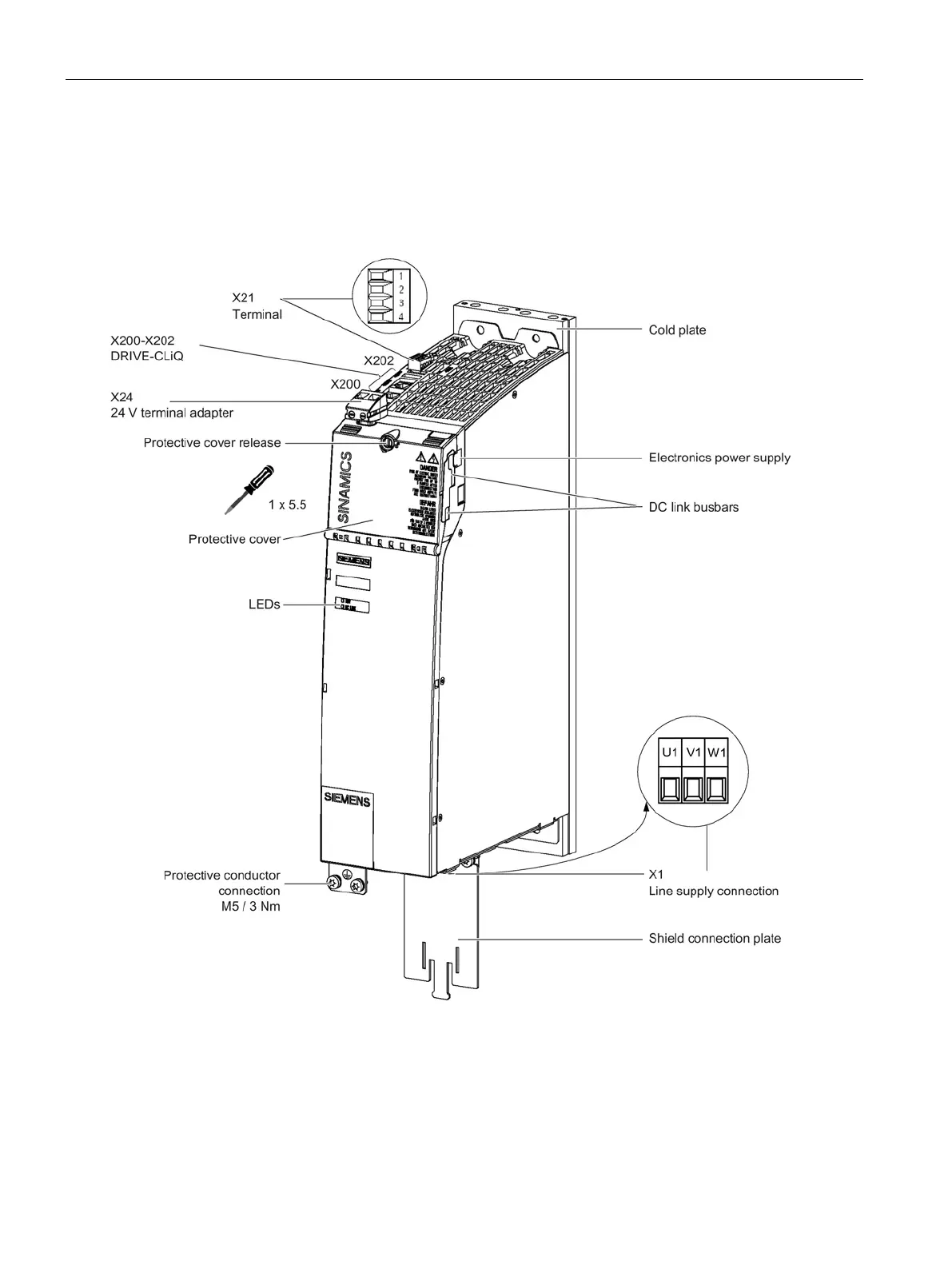

Figure 4-26 Interface overview, Active Line Module with cold plate (example: 16 kW)
