Siemens SINAMICS S120 - Dimension Drawings

Line Modules Booksize
4.3 Active Line Modules with internal air cooling
Booksize Power Units
162 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
4.3.5
Dimension drawings

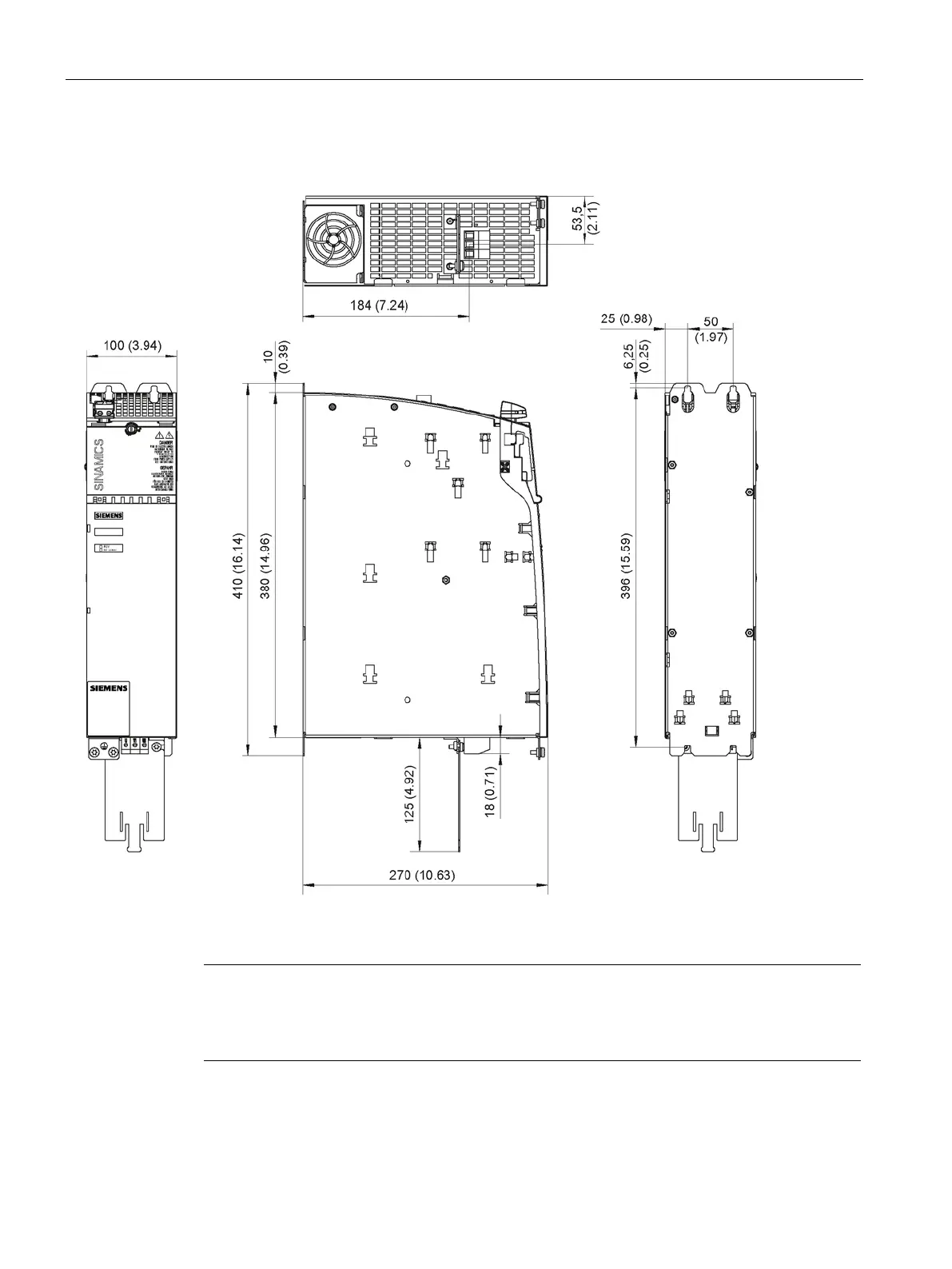

Figure 4-3 Dimension drawing of 16 kW Active Line Module with internal air cooling, all dimensions in mm and (inches)
Note
The shield connecting plate is supplied as standard with a 100 mm Line Mo
dule.
For more information, see Chapter
Shield connecting plates for power supply and motor
cables
(Page 591).
