Line Modules Booksize
4.3 Active Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
163

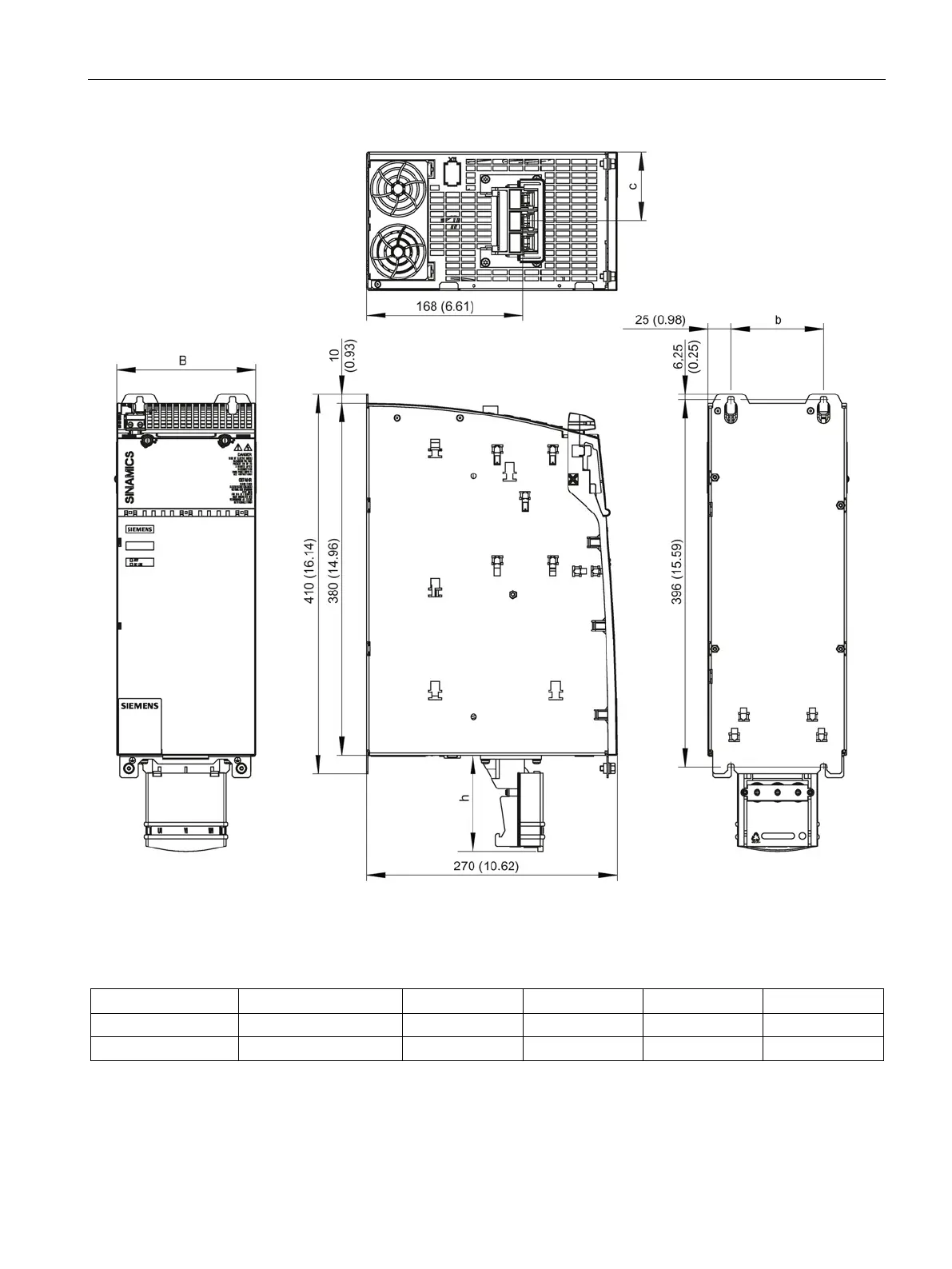

Figure 4-4 Dimension drawing of 36 kW and 55 kW Active Line Modules with internal air cooling (example, 36 kW), all
dimensions in mm and (inches)
Table 4- 8 Dimensions of 36 kW and 55 kW Active Line Modules with internal air cooling
Active Line Module
Article No.
B [mm] (inch)
b [mm] (inch)
c [mm] (inch)
h [mm] (inch)
36 kW
6SL3130-7TE23-6AAx
150 (5.91)
100 (3.94)
75 (2.95)
105 (4.13)
55 kW
6SL3130-7TE25-5AAx
200 (7.87)
150 (5.91)
100 (3.94)
105 (4.13)
