Siemens SINAMICS S120

Motor Modules Booksize Compact
7.7 Mounting
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
475
7.7
Mounting

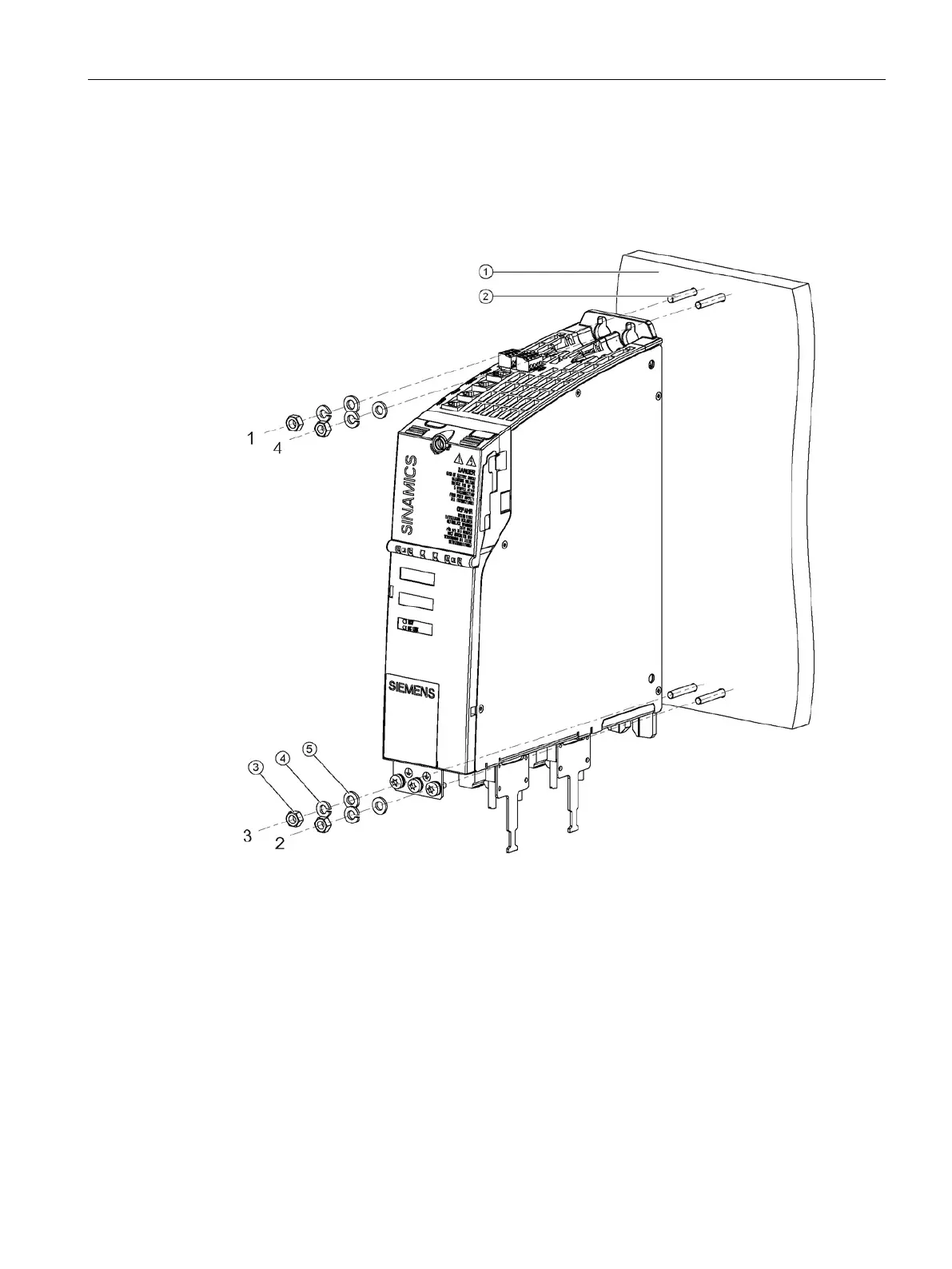

Mounting a Motor Module Booksize Compact with internal air cooling
①
Mounting wall
②
Threaded bolts M6
③
M6 nut
④
Spring washer
⑤
Washer
Figure 7-7 Mounting a Motor Module Booksize Compact with internal air cooling
Tightening torques
:
1. Firstly, only tighten the nuts by hand.
Tightening torque: 0.5 Nm
2. Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 6 Nm
