Motor Modules Booksize Compact
7.6 Dimension drawings
Booksize Power Units
474 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

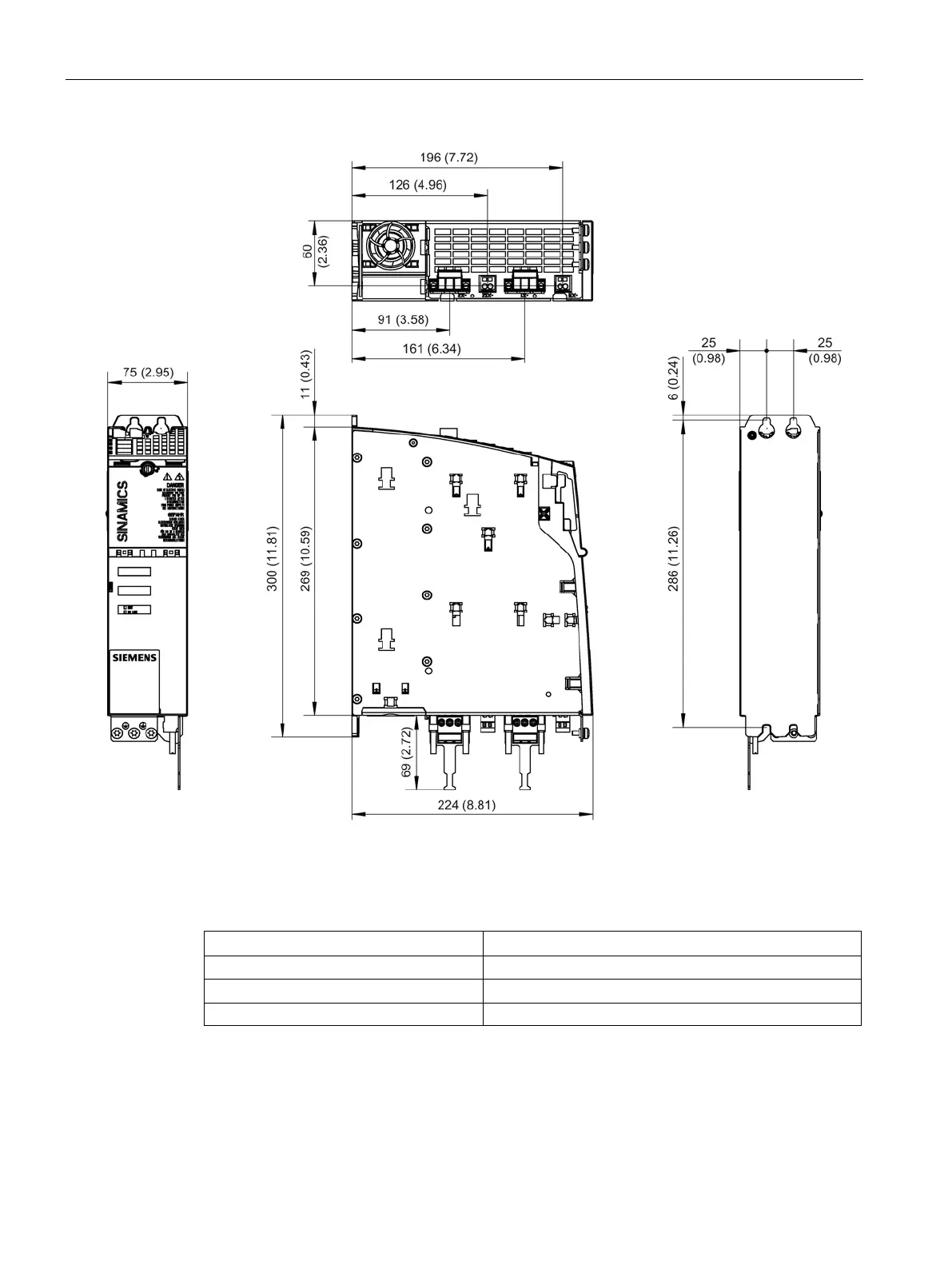

Figure 7-6 Dimension drawing of 2 x 1.7 A, 2 x 3 A, and 2 x 5 A Double Motor Modules Compact, all dimensions in mm
and (inches); example: 2 x 5 A Double Motor Module
Table 7- 8 2 x 1.7 A, 2 x 3 A, and 2 x 5 A Double Motor Modules Booksize Compact
Double Motor Module
Article No.
2 x 1.7 A Double Motor Module
6SL3420-2TE11-7AA.
2 x 3 A Double Motor Module 6SL3420-2TE13-0AA.
2 x 5 A Double Motor Module
6SL3420-2TE15-0AA.
