DC link components
8.5 Capacitor Module
Booksize Power Units
526 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
8.5.4
Dimension drawing

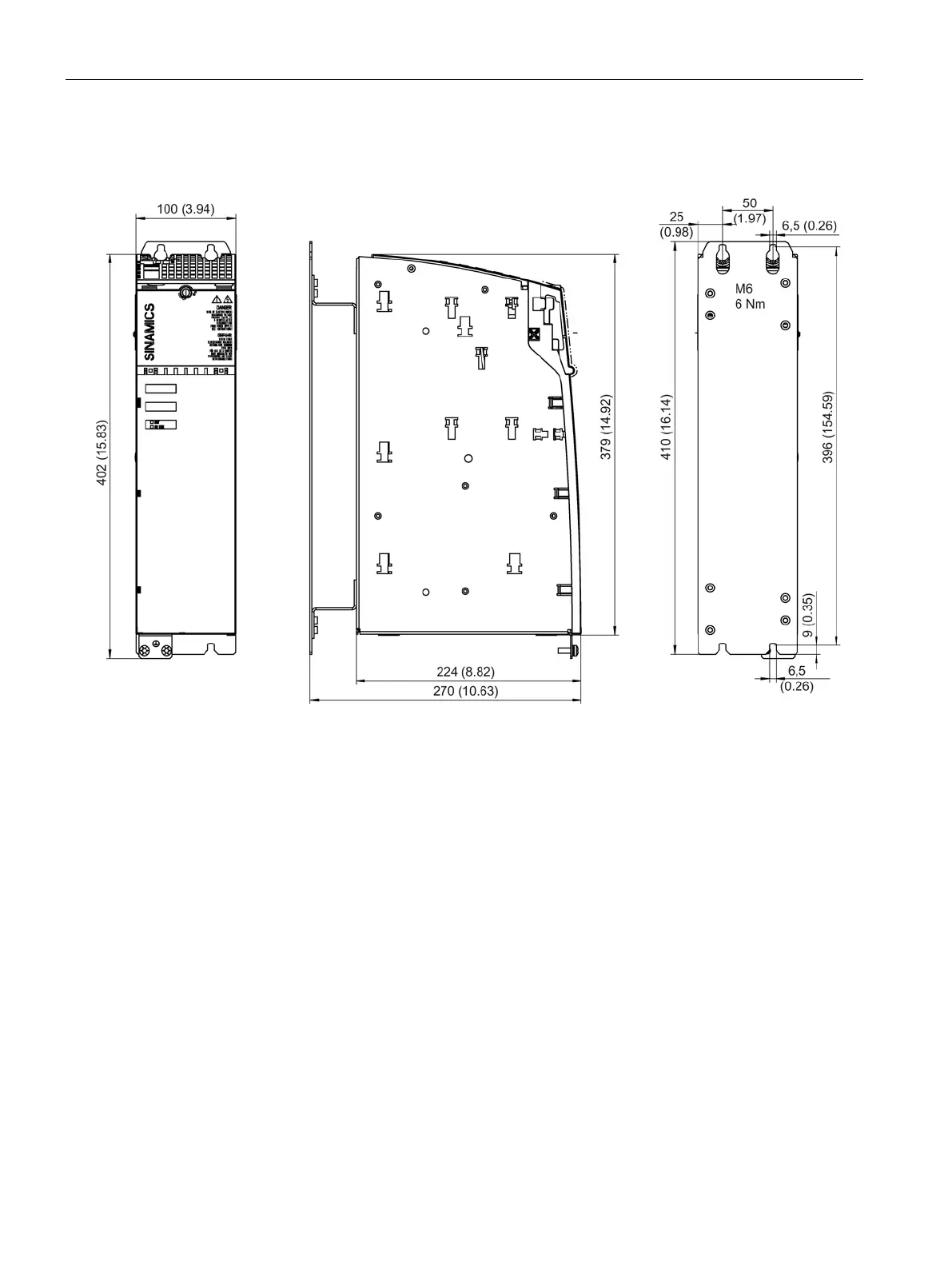

Figure 8-18 Dimension drawing of Capacitor Module, all dimensions in mm and (inches)
